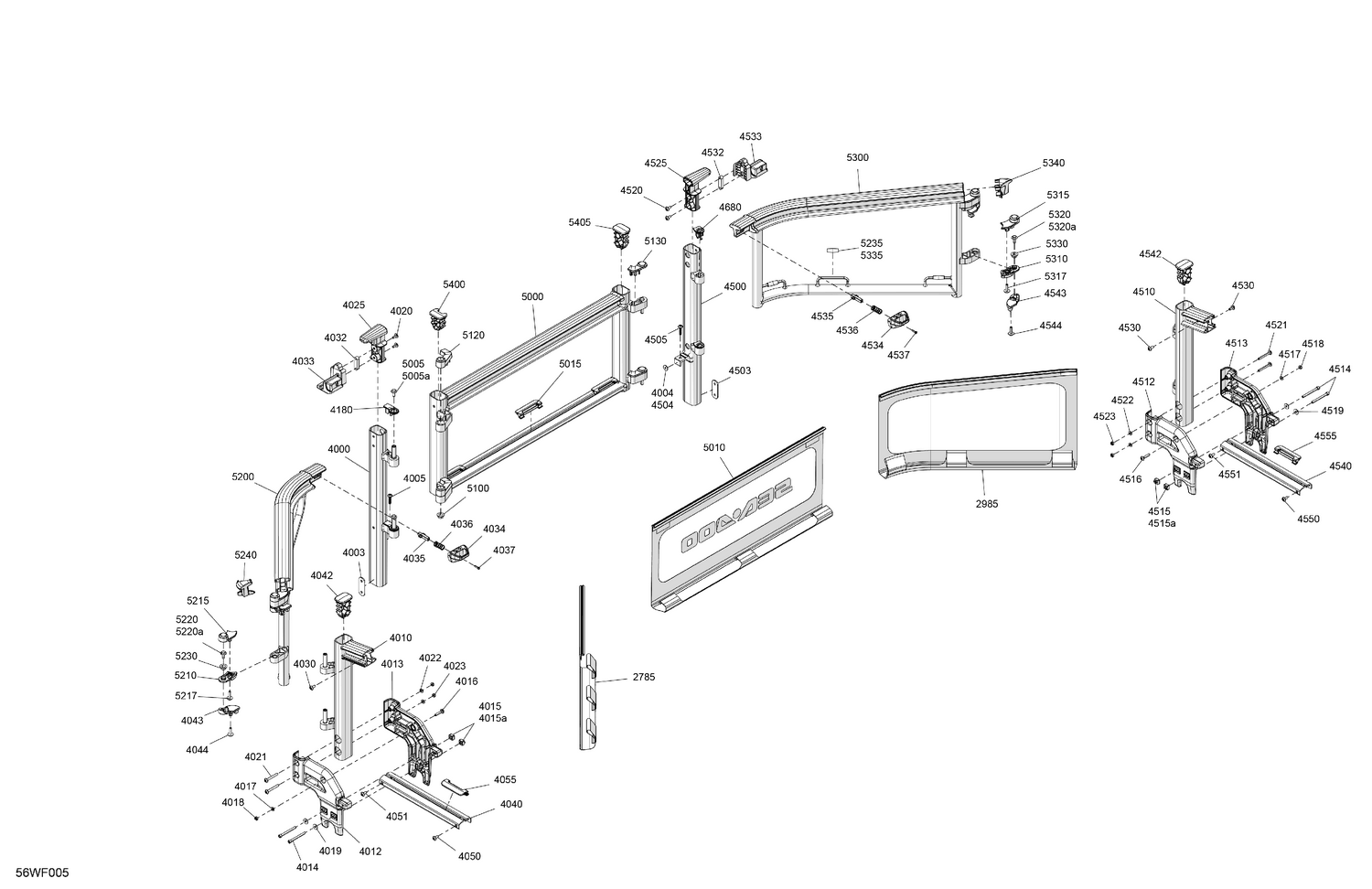

11- GUARD RAILS - Front
Parts (92)
| Ref | Part Number | Description |
|---|---|---|
| 2785 | 281300647 | LH Front Balustrade Ass'y |
| 2985 | 281300649 | RH Front Balustrade Ass'y |
| 4000 | 281300714 | LH Front Profiled Tube |
| 4003 | 291005950 | Connecting Plate |
| 4004 | 234062600 | Flat Washer M6, Stainless |
| 4005 | 250000879 | Plastite Torx Screw M6.81X30 |
| 4010 | 281300613 | LH Profiled Tube |
| 4012 | 281300657 | LH Rail Support |
| 4013 | 281300660 | RH Rail Support |
| 4014 | 205066560 | Socket Head Screw M6 X 65 |
| 4015a | 232561200 | Brass Elastic Stop Nut M6 |
| 4016 | 250000924 | Truss Cone Torx Screw M6 X 30 |
| 4017 | 234061600 | Stainless Flat Washer M6 |
| 4018 | 232561200 | Brass Elastic Stop Nut M6 |
| 4019 | 234062600 | Flat Washer M6, Stainless |
| 4020 | 250001147 | Cone Torx Truss Screw HD.M6 X 15 |
| 4021 | 250000827 | Torx Screw Truss Cone HD.M6X50 |
| 4022 | 234061600 | Stainless Flat Washer M6 |
| 4023 | 232561200 | Brass Elastic Stop Nut M6 |
| 4025 | 281300775 | Front Handle |
| 4030 | 250001147 | Cone Torx Truss Screw HD.M6 X 15 |
| 4032 | 281300877 | Lock Plate |
| 4033 | 281300633 | Door Stopper |
| 4034 | 281300634 | Latch Stopper |
| 4035 | 281300798 | Front Latch Stopper |
| 4036 | 281300840 | Tension Spring |
| 4037 | 250000287 | Flange Torx Screw K40 X 16 |
| 4040 | 281300611 | Lower Profiled Tube |
| 4042 | 281300278 | Oblong Plug |
| 4043 | 281300776 | LH Lower Hinge |
| 4044 | 250000978 | Hexagonal Cap Screw M6 X 25 |
| 4050 | 250001147 | Cone Torx Truss Screw HD.M6 X 15 |
| 4051 | 250001147 | Cone Torx Truss Screw HD.M6 X 15 |
| 4055 | 281300811 | Balustrade Anchor |
| 4180 | 281300311 | LH Lower Cap |
| 4500 | 281300715 | RLH Front Profiled Tube |
| 4503 | 291005950 | Connecting Plate |
| 4504 | 234062600 | Flat Washer M6, Stainless |
| 4505 | 250000879 | Plastite Torx Screw M6.81X30 |
| 4510 | 281300637 | RH Profiled Tube |
| 4512 | 281300657 | LH Rail Support |
| 4513 | 281300660 | RH Rail Support |
| 4514 | 205066560 | Socket Head Screw M6 X 65 |
| 4515a | 232561200 | Brass Elastic Stop Nut M6 |
| 4516 | 250000924 | Truss Cone Torx Screw M6 X 30 |
| 4517 | 234061600 | Stainless Flat Washer M6 |
| 4518 | 232561200 | Brass Elastic Stop Nut M6 |
| 4519 | 234062600 | Flat Washer M6, Stainless |
| 4520 | 250001147 | Cone Torx Truss Screw HD.M6 X 15 |
| 4521 | 250000827 | Torx Screw Truss Cone HD.M6X50 |
| 4522 | 234061600 | Stainless Flat Washer M6 |
| 4523 | 232561200 | Brass Elastic Stop Nut M6 |
| 4525 | 281300775 | Front Handle |
| 4530 | 250001147 | Cone Torx Truss Screw HD.M6 X 15 |
| 4532 | 281300877 | Lock Plate |
| 4533 | 281300799 | RH Latch Stopper |
| 4534 | 281300634 | Latch Stopper |
| 4535 | 281300798 | Front Latch Stopper |
| 4536 | 281300840 | Tension Spring |
| 4537 | 250000287 | Flange Torx Screw K40 X 16 |
| 4540 | 281300611 | Lower Profiled Tube |
| 4542 | 281300278 | Oblong Plug |
| 4543 | 281300778 | RH Lower Hinge |
| 4544 | 250000978 | Hexagonal Cap Screw M6 X 25 |
| 4550 | 250001147 | Cone Torx Truss Screw HD.M6 X 15 |
| 4551 | 250001147 | Cone Torx Truss Screw HD.M6 X 15 |
| 4555 | 281300811 | Balustrade Anchor |
| 4680 | 281300312 | RH Lower Cap |
| 5000 | 295101538 | Front Door Service Kit |
| 5005a | XXX | Not Available As Spare Parts |
| 5010 | 281300844 | Front Balustrade Ass'y |
| 5015 | 281300811 | Balustrade Anchor |
| 5100 | 293900007 | Venturi Bushing |
| 5120 | 281300309 | LH Upper Cap |
| 5130 | 281300310 | RH Upper Cap |
| 5200 | 295101403 | LH Front Door Service Kit |
| 5210 | 281300777 | LH Upper Hinge |
| 5215 | 281300625 | LH In Cover |
| 5217 | 250000978 | Hexagonal Cap Screw M6 X 25 |
| 5220a | XXX | Not Available As Spare Parts |
| 5230 | 293900007 | Venturi Bushing |
| 5235 | 281300598 | Rear Balustrade Fastener |
| 5240 | 281300835 | LH Front End Piece |
| 5300 | 295101404 | RH Front Door Service Kit |
| 5310 | 281300779 | RH Upper Hinge |
| 5315 | 281300628 | RH In Cover |
| 5317 | 250000978 | Hexagonal Cap Screw M6 X 25 |
| 5320a | XXX | Not Available As Spare Parts |
| 5330 | 293900007 | Venturi Bushing |
| 5335 | 281300598 | Rear Balustrade Fastener |
| 5340 | 281300836 | RH Front End Piece |
| 5400 | 281300841 | Oblong Plug |
