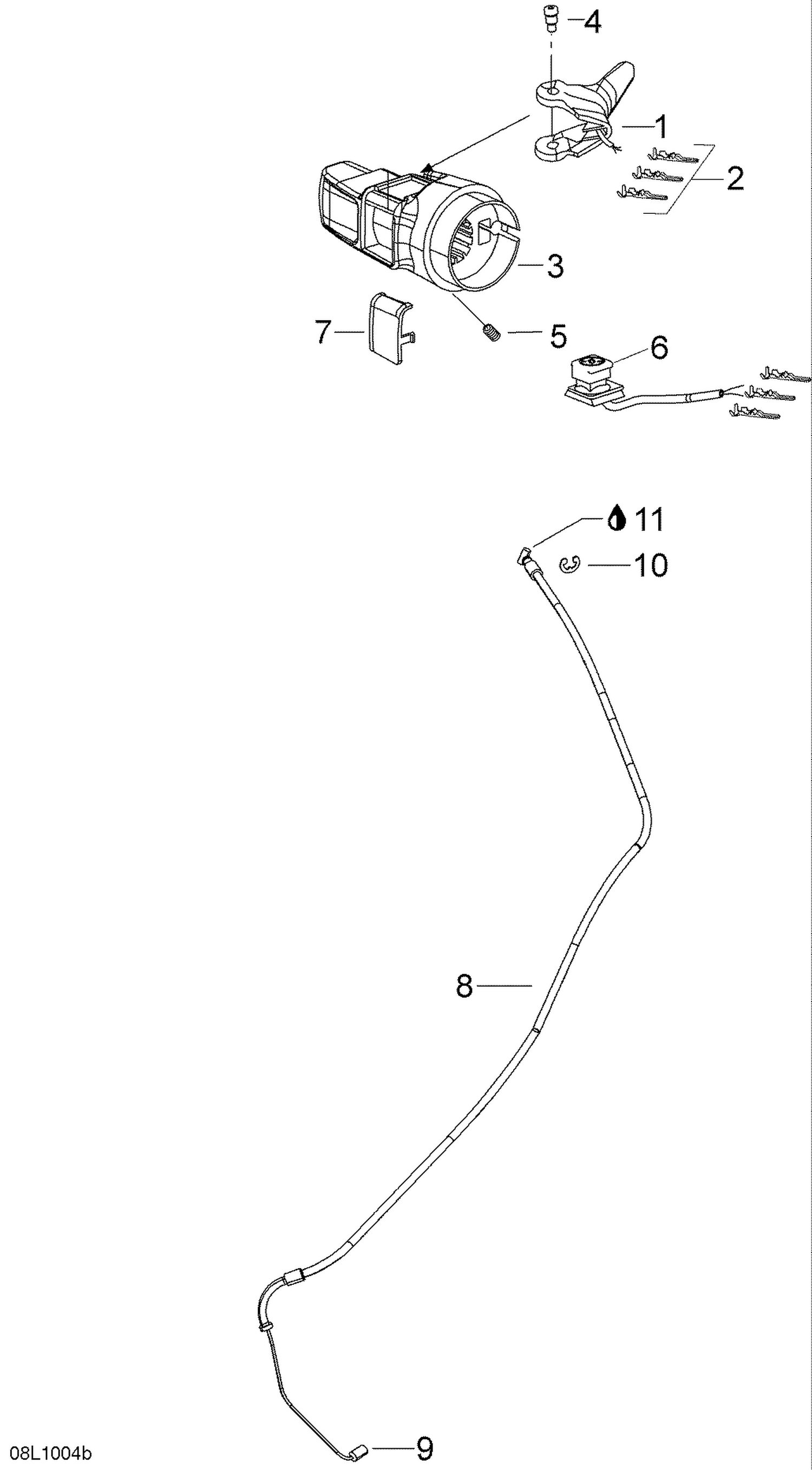

02- Throttle Handle And Housing (Army)
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 512059481 | Throttle Handle |
| 2 | 605642628 | CONNECTOR - Call your local BRP dealership |
| 3 | 512059763 | THROTTLE HOUSING - Call your local BRP dealership |
| 4 | 732601143 | Flanged Screw |
| 5 | 414440800 | Socket Set Screw M8 X 10 |
| 6 | 605356055 | Emergency switch |
| 7 | 572100901 | Switch Cover |
| 8 | 605356001 | Throttle Cable |
| 9 | 707000434 | Cable Guide |
| 10 | 31038 | Circlip 5 DIN 6799(1=10pcs) - Call your local BRP dealership |
