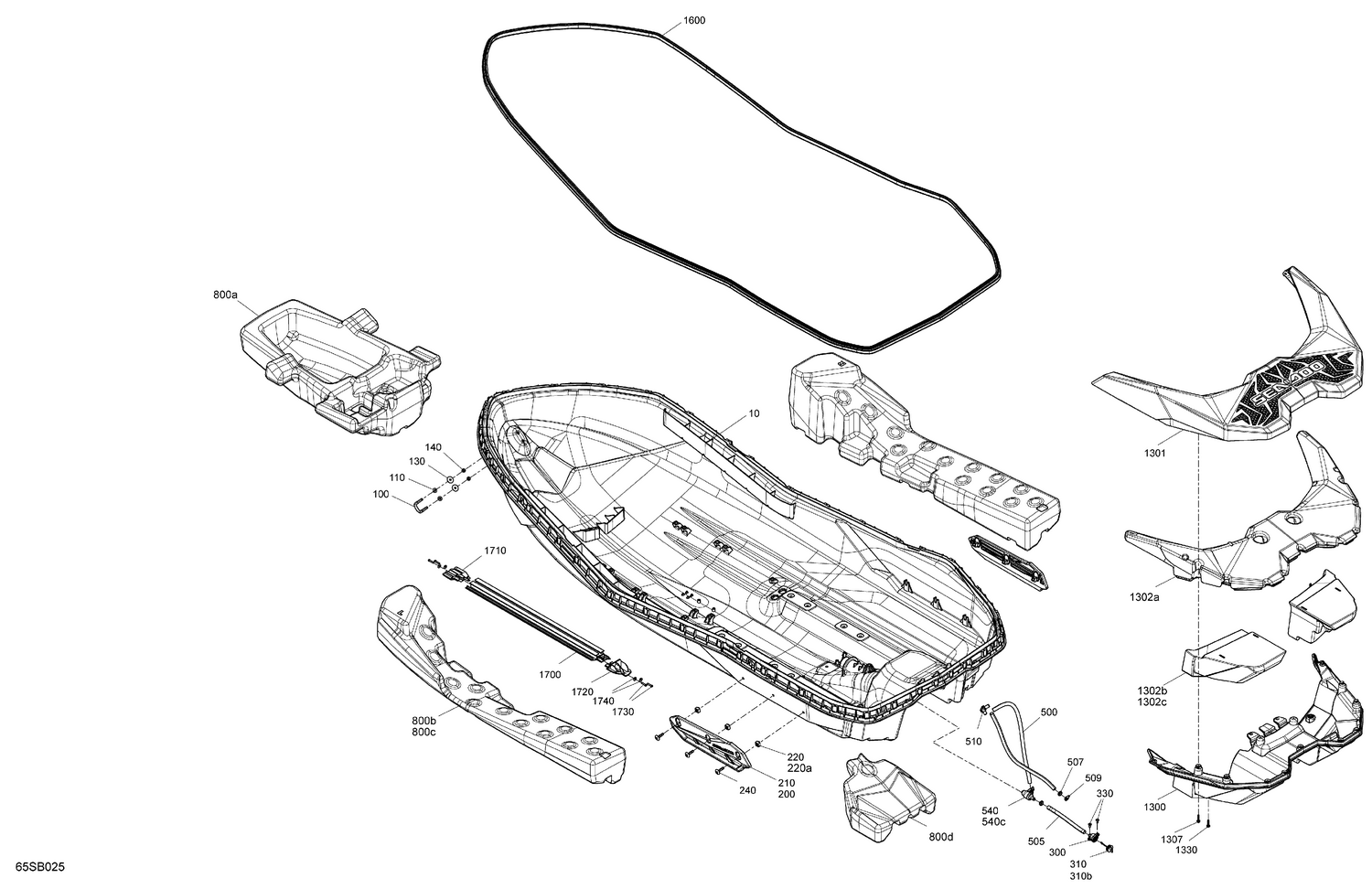

07- Body - Hull
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 100 | 292000933 | U-Clamp |
| 110 | 293050001 | Flat Washer M8.5 x 18 |
| 130 | 250200175 | Flat Washer 8 mm, Stainless |
| 140 | 232581200 | Hex. Elastic Nut M8 Brass |
| 200 | 292002009 | RH Sponson |
| 210 | 292002008 | LH Sponson |
| 220a | 232581200 | Hex. Elastic Nut M8 Brass |
| 240 | 250000697 | Torx Screw M8 X 35 |
| 300 | 292001552 | Neck Drain |
| 310b | 293300067 | O-Ring |
| 330 | 250000384 | Torx Screw M6 X 14 |
| 500 | 219704393 | Polyurethane Hose 1000Mm Long |
| 505 | 219704393 | Polyurethane Hose 1000Mm Long |
| 507 | 293830063 | Rubber Washer |
| 509 | 293650285 | Clamp Gear |
| 510 | 293710152 | Fitting Elbow 90° |
| 540c | 293830080 | Floating Ball |
| 800a | 292001439 | Front Float |
| 800b | 292001467 | LH Float |
| 800c | 292001468 | RH Float |
| 800d | 292001469 | Rear Float |
| 1300 | 292002010 | Hull Extension Black |
| 1301 | 291004596 | Deck |
| 1302a | 292001504 | Rear Deck Extension Float |
| 1302b | 292001505 | LH Extension Float |
| 1302c | 292001506 | RH Extension Float |
| 1307 | 243163060 | Hex. Flange Screw M6.81 X 30 |
| 1330 | 250000879 | Plastite Torx Screw M6.81X30 |
| 1600 | 293250338 | Seal Joint |
| 1700 | 292001549 | Hull Reinforcement |
| 1710 | 292001550 | Front End Piece Reinforcement |
| 1720 | 292001551 | Rear End Piece Reinforcement |
| 1730 | 250000680 | Hex. Flange Screw K50 X 25 |
