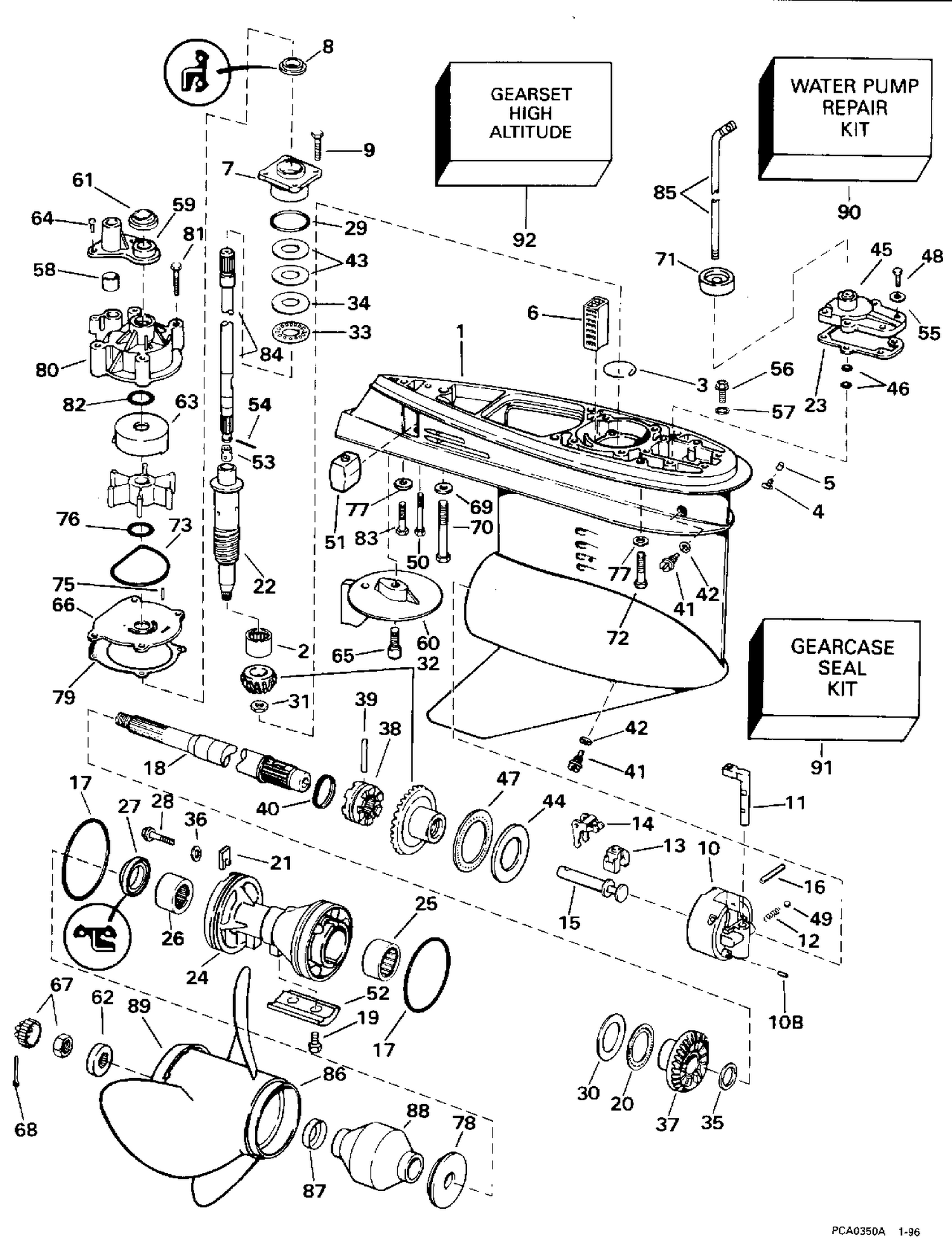

| Ref | Part Number | Description |
|---|
| 3 |
0338778 |
RETAINING RING |
| 8 |
0341280 |
SEAL |
| 17 |
0305123 |
O RING |
| 27 |
0341281 |
SEAL |
| 60 |
0338742 |
COMPENSATEUR DE DÉRIVE This part replaces 0327640. |
| 65 |
0313715 |
SCREW, Cap, hex hd, 7/16-14 x 1 |
| 70 |
0331998 |
SCREW, Gearcase to housing |
| 72 |
0331999 |
SCREW, Gearcase housing |
| 73 |
0331353 |
Seal, Impeller Housing Plate. |
| 80 |
0435990 |
IMPELLER HOUSING |
| 82 |
0331188 |
O-Ring |
| 83 |
0330263 |
SCREW, Mounting, 3/8 in. X 3.50 in. |
| 84 |
5007671 |
DRIVESHAFT Assembly, Upper This part replaces 0436232. |
| 85 |
0329864 |
SHIFT ROD |
| 86 |
PROPELLER |
Ref: 87 0313926 *Propeller Hub Sleeve 0313926 |
| 90 |
5001594 |
WATER PUMP REPAIR KIT This part replaces 0434421. |
| 91 |
5006373 |
GEARCASE SEAL KIT This part replaces 0437753. |
| 0438047 |
5004635 |
See Sb 2002-02P This part replaces 0438047. |
