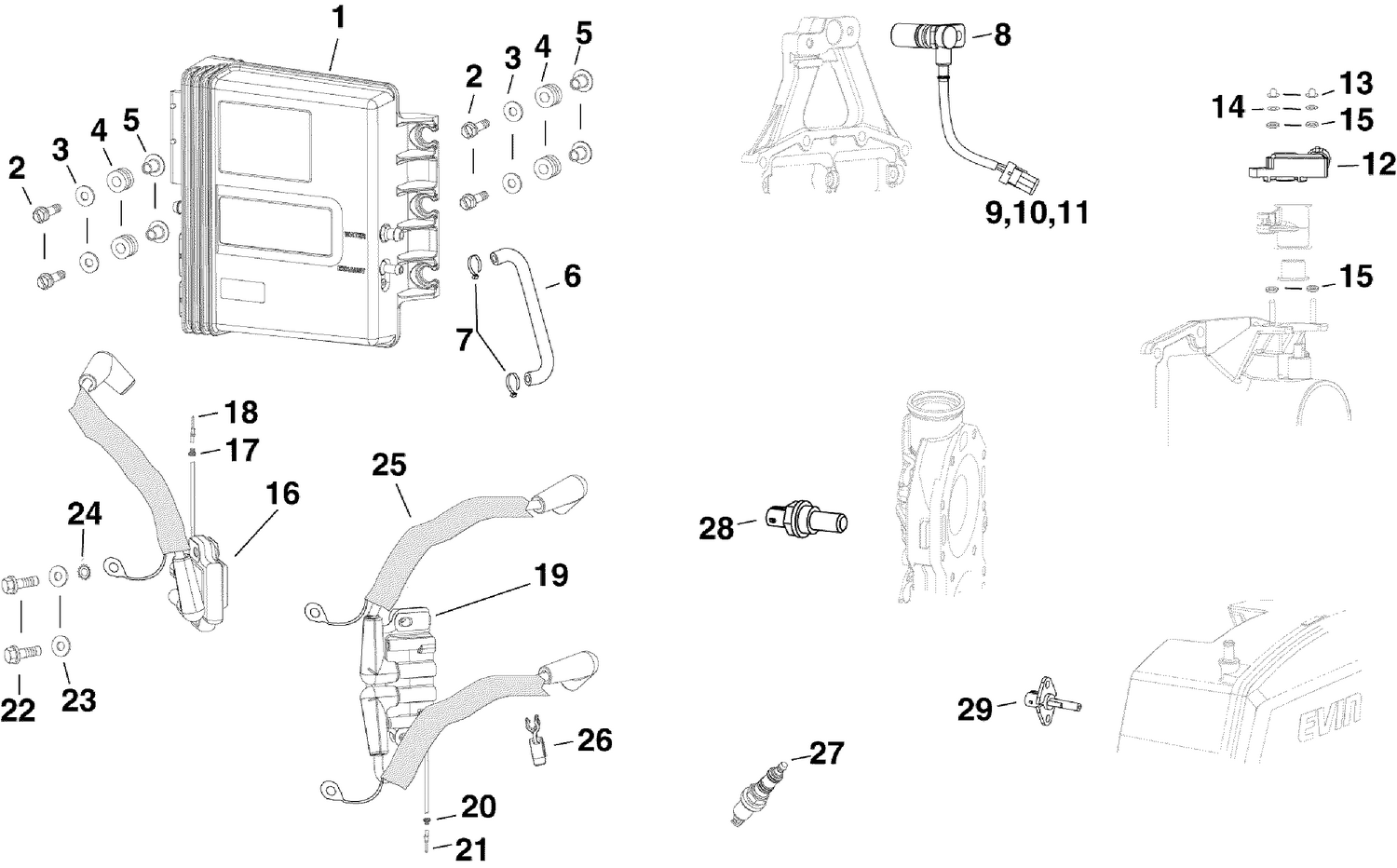

EMM, SENSORS, IGNITION COILS & SPARK PLUGS
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 6 | 0353861 | HOSE, Exh back pressure to EMM |
| 7 | 0320107 | ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 8 | 0587402 | SENSOR, Crankshaft position (CPS) This part replaces 0586785. |
| 16 | 0586857 | IGNITION COIL, Single |
| 19 | 0586854 | IGNITION COIL, Dual |
| 25 | 5007415 | SPARK PLUG LEAD |
| 26 | 3011346 | CLIP |
| 27 | 5007597 | SPARK PLUG - QC8WEP |
| 28 | 3010674 | ENGINE TEMPERATURE SENSOR |
