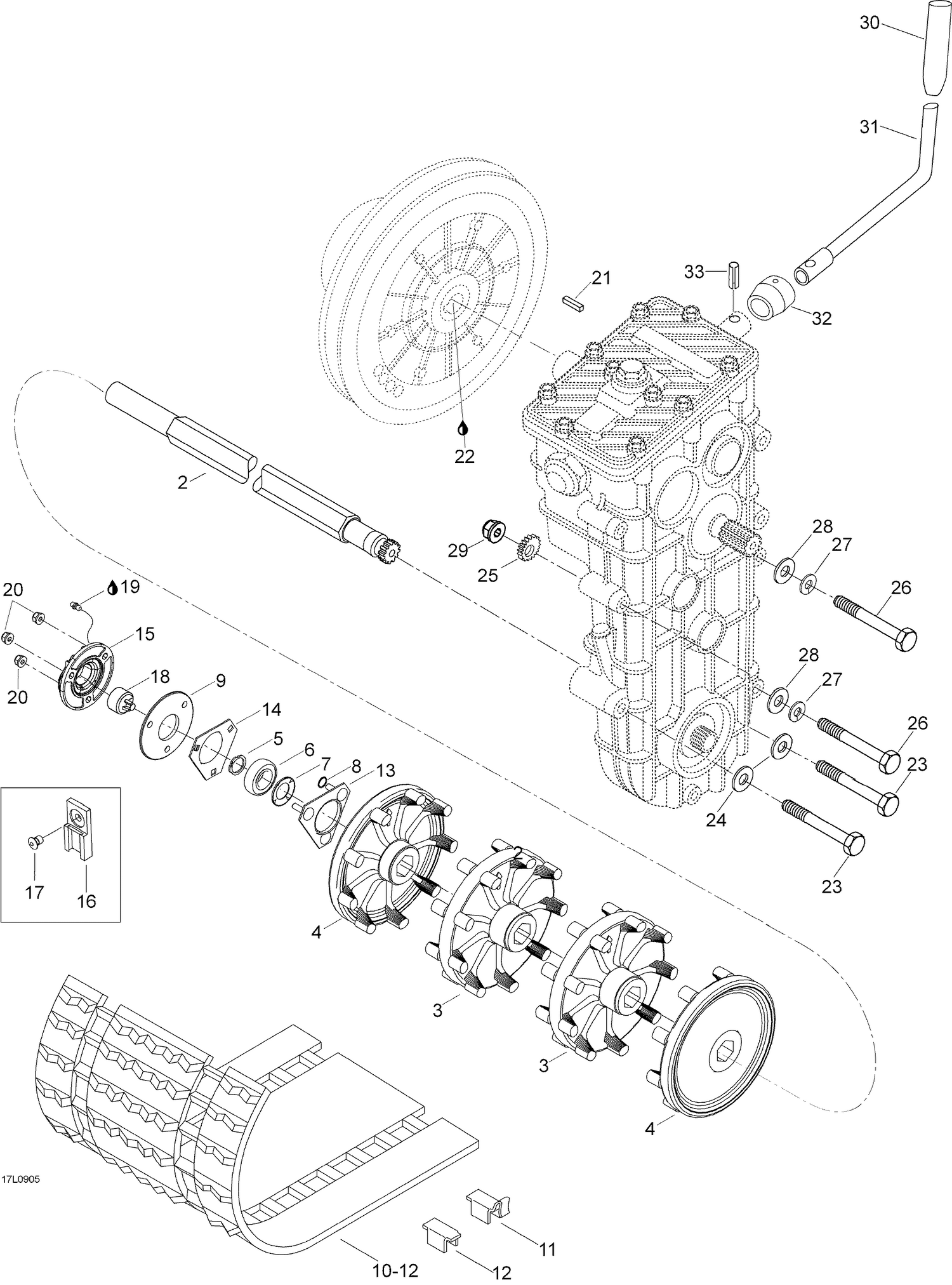

| Ref | Part Number | Description |
|---|
| 2 |
605249972 |
DRIVE AXLE - Call your local BRP dealership |
| 3 |
414931800 |
SPROCKET - Call your local BRP dealership |
| 4 |
415067400 |
HALF SPROCKET - Call your local BRP dealership |
| 5 |
371910200 |
CIRCLIP - Call your local BRP dealership |
| 6 |
293350060 |
Ball bearing |
| 7 |
501017400 |
BEARING PROTECTOR - Call your local BRP dealership |
| 8 |
414484400 |
O-ring |
| 9 |
5446641 |
Spacer |
| 11 |
5318323 |
Cleat guide |
| 12 |
5318322 |
Slide guide |
| 13 |
504151860 |
BEARING HOUSING - Call your local BRP dealership |
| 14 |
501025000 |
FLANGE - Call your local BRP dealership |
| 15 |
504152173 |
FLANGE, SPEEDO - Call your local BRP dealership |
| 16 |
270000141 |
Clip This part replaces 515175917. |
| 17 |
36005 |
Rivet |
| 18 |
504152040 |
MAGNETIC ADAPTOR - Call your local BRP dealership |
| 19 |
219700417 |
SYNTHETIC GREASE, 400 G - Call your local BRP dealership |
| 20 |
233281414 |
Hex. Flange Elastic Nut M8 This part replaces 33201. |
| 21 |
619690074 |
KEY - Call your local BRP dealership This part replaces 418763. |
| 22 |
293800070 |
Lubricant LOCTITE LB 8150 - Call your local BRP dealership |
| 23 |
40089 |
M8 x 75DIN 931m8.8Zne(1=10pcs) - Call your local BRP dealership |
| 24 |
234081410 |
Flat Washer 8 mm This part replaces 20004. |
| 25 |
605454017 |
TOOLS - Call your local BRP dealership |
| 26 |
40012 |
HEX, SCREW M8 X 80 - Call your local BRP dealership |
| 27 |
20014 |
Lock washer |
| 28 |
234082410 |
Flat Washer 8 mm This part replaces 20010. |
| 29 |
233281414 |
Hex. Flange Elastic Nut M8 This part replaces 33201. |
| 30 |
28247 |
Shift button |
| 31 |
605350153 |
SHIFT HANDLE - Call your local BRP dealership |
| 32 |
5446699 |
SLEEVE - Call your local BRP dealership |
| 33 |
41008 |
Spring pin 5 x 24(1=10pcs) - Call your local BRP dealership |
