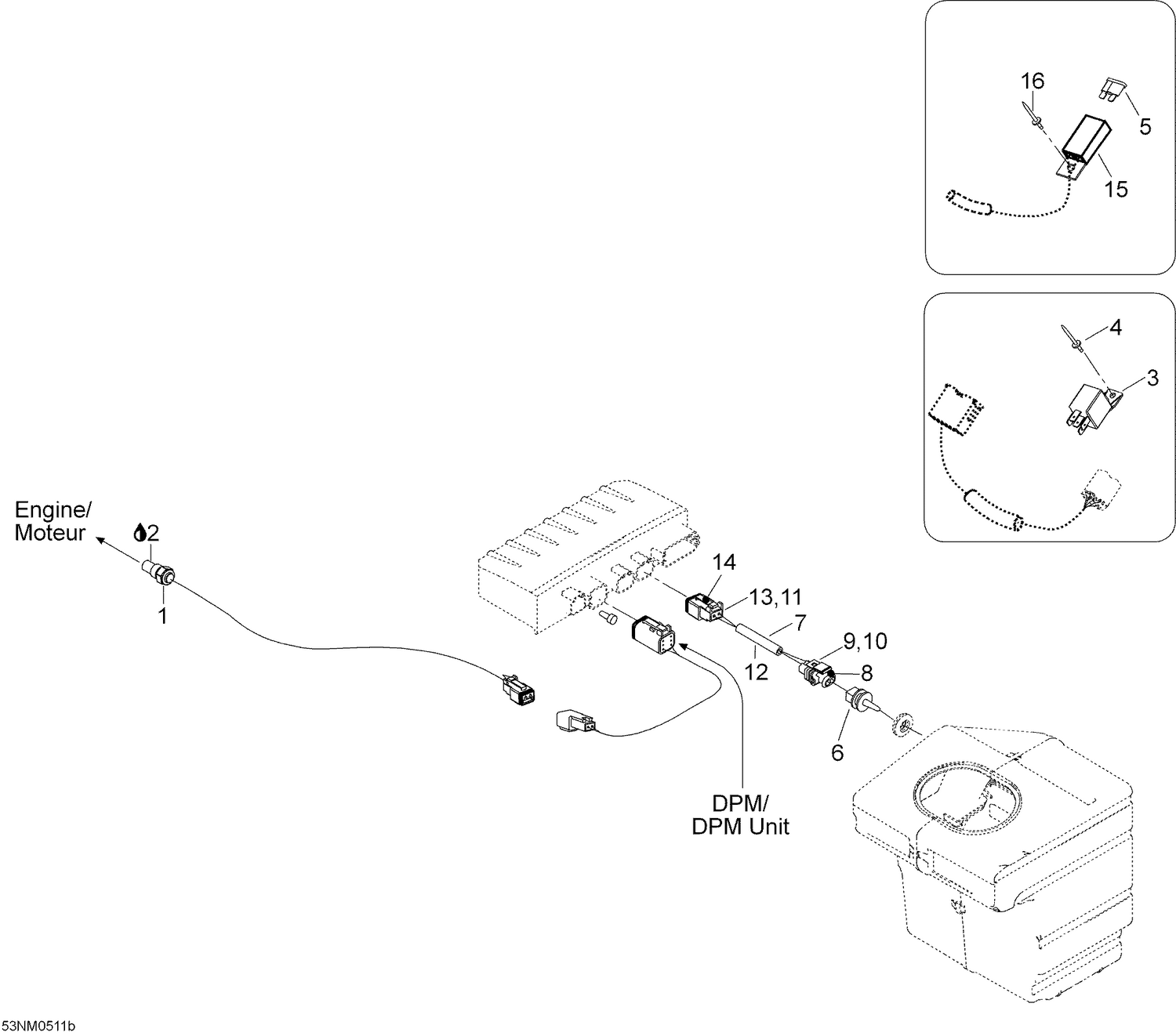

| Ref | Part Number | Description |
|---|
| 1 |
515176041 |
TEMPERATURE SENSOR - Call your local BRP dealership |
| 2 |
293800018 |
SEALANT LOCTITE 592 - Call your local BRP dealership |
| 3 |
710010053 |
RELAY This part replaces 410113200. |
| 4 |
36005 |
Rivet |
| 5 |
409003900 |
Fuse 20 A This part replaces 278001143. |
| 6 |
270600000 |
AIR TEMPERATURE SENSOR - Call your local BRP dealership |
| 8 |
515175588 |
FEMALE TERMINAL HOUSING, 2 CIRCUITS - Call your local BRP dealership |
| 9 |
278000998 |
Female terminal |
| 10 |
278000999 |
Seal |
| 11 |
278000632 |
Female connector |
| 12 |
515175332 |
Tubing |
| 13 |
515175706 |
Female lock |
| 14 |
515175670 |
Female connector housing |
| 15 |
42272 |
Clip |
