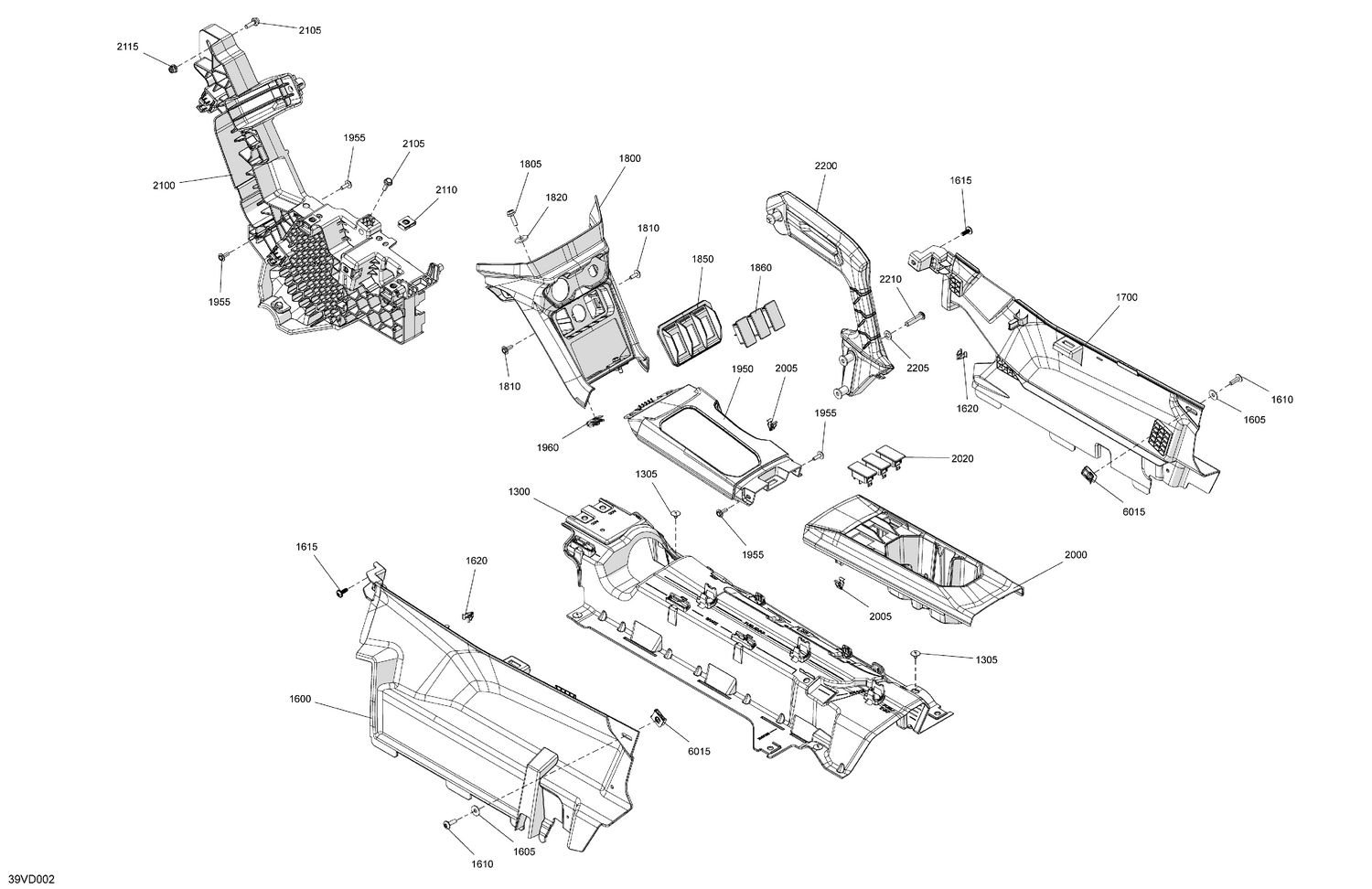

07- Cab Interior - Center Console
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 1300 | 707900943 | Central Console Support |
| 1305 | 293150292 | Black, Pop Rivet 3/16 X ,550 |
| 1600 | 707900897 | LH Central Console Panel |
| 1605 | 234062670 | Stainless Steel Flat Washer |
| 1610 | 250000722 | Torx Screw M6 X 20 |
| 1615 | 250000546 | Oval Head Torx Screw K60 X 16 |
| 1620 | 517306478 | Clip |
| 1700 | 707900898 | RH Central Console Panel |
| 1800 | 707900899 | Upper Front Console |
| 1805 | 207562054 | Hex. Flange Screw S.Grip M6 X 20 |
| 1810 | 250000959 | Screw PT Type K-50 X 16 |
| 1820 | 234062670 | Stainless Steel Flat Washer |
| 1850 | 707901075 | Switch Support |
| 1860 | 710007173 | Plug Carling |
| 1950 | 715009653 | Front Central Console Ass'y |
| 1955 | 250000959 | Screw PT Type K-50 X 16 |
| 1960 | 250100208 | Panel Nut M6 X 1.0 |
| 2000 | 715009650 | Central Console Ass'y |
| 2005 | 517306478 | Clip |
| 2020 | 710007173 | Plug Carling |
| 2100 | 707900988 | Central Handle Support |
| 2105 | 207562544 | Hex. Flange Screw M6 X 25 |
| 2110 | 250100208 | Panel Nut M6 X 1.0 |
| 2115 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 2200 | 707901111 | Overmolded Front Central Holding Handle |
| 2205 | 234081670 | Stainless Steel Flat Washer 8 mm |
| 2210 | 250000764 | Hex. Button Head Screw M8 X 1.25 X 35 |
