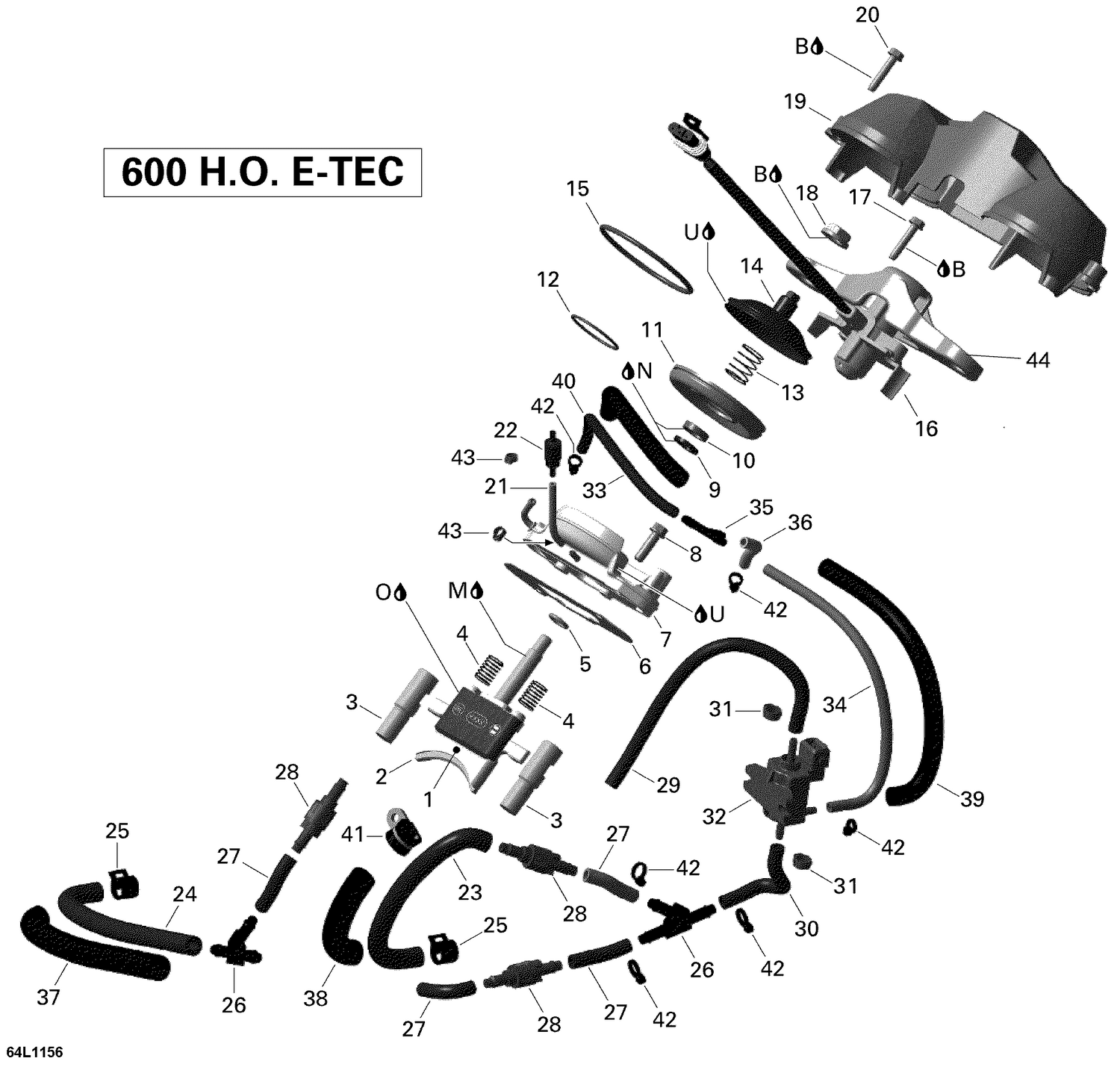

01- 3D Rave

01- 3D Rave

Parts (48)

RefPart NumberDescription
B 293800060 Loctite 243, 10 ml
M 420297433 Molykote G-N, 50 g
N 413707000 Dow Corning 111, 150 g
O Not Available As Spare Part - Engine Oil
1 420854980 Exhaust Valve, Upper
2 420854974 Lower Exhaust Valve This part replaces 420854973.
3 420854990 Exhaust Valve
4 420238558 Spring This part replaces 420238556.
5 420931765 O-Ring
6 420430032 Gasket
7 420854888 Valve Housing
8 420440207 Flanged Torx Screw M6X20-SW8/T30
9 420431380 Gasket Ring
10 420950732 Oil Seal This part replaces 420950730.
11 420260725 Bellows This part replaces 420260724.
12 420939286 Hose Spring This part replaces 420939285.
13 420238557 Spring
14 420854442 Valve Cover
15 420838255 Hose Spring
16 420854089 Position Sensor With Valve Bar This part replaces 420854088.
17 420241271 Hex. Taptite Screw M5 X 25 This part replaces 420241270.
18 420942190 Nut M12 X 1.5
19 420910821 Rave Cover This part replaces 420910820.
20 420241271 Hex. Taptite Screw M5 X 25 This part replaces 420241270.
21 414413800 Oil Hose
22 420956515 Check Valve Ass’y
23 420460782 MOLDED HOSE - Call your local BRP dealership
24 420460782 MOLDED HOSE - Call your local BRP dealership
25 293650214 Norma Spring Clamp
26 293710059 Y-Fitting
27 420460851 HIGH PRESSURE AIR HOSE, 40 MM - Call your local BRP dealership
28 420660543 Check Valve
29 415080200 HOSE, POLYURETHANE - Call your local BRP dealership
30 420460852 HIGH PRESSURE AIR HOSE, 80 MM - Call your local BRP dealership
31 420853658 Gear Clamp
32 270600005 Solenoid Valve
33 420660571 High Pressure Air Hose, 180 mm
34 420660575 HIGH PRESSURE AIR HOSE, 220 MM - Call your local BRP dealership
35 293710068 T-Fitting
36 420660572 HIGH PRESSURE AIR HOSE, 50 MM - Call your local BRP dealership
37 409901800 Tubing 13 mm
38 409901800 Tubing 13 mm
39 415079900 Tubing 10 mm
40 415079900 Tubing 10 mm
41 420851250 Clamp
42 293750001 Tie-Rap 94 mm
43 420851508 Clamp
44 420854089 Position Sensor With Valve Bar This part replaces 420854086.
