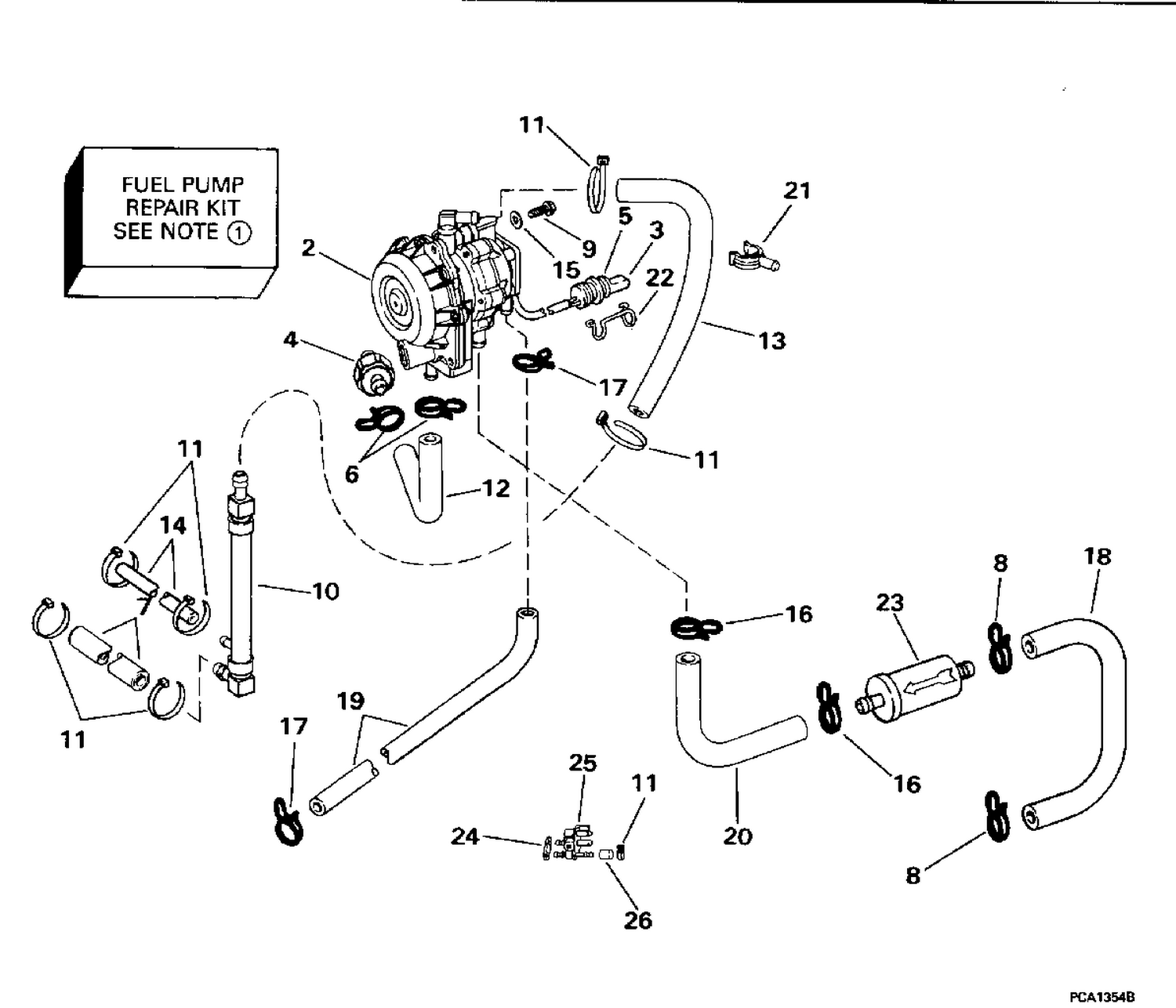

| Ref | Part Number | Description |
|---|
| 1 |
5004892 |
FUEL/OIL PUMP, Conversion Kit This part replaces 0438523. |
| 2 |
0438090 |
FUEL PUMP ASSY. |
| 6 |
0339278 |
COLLIER DE SERRAGE |
| 7 |
HOSE, |
Fuel manifold to carb. 4 1/2 in. (114m ) |
| 8 |
0339278 |
COLLIER DE SERRAGE |
| 11 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 12 |
0332851 |
FLEXIBLE D’IMPULSIONS |
| 13 |
0332851 |
FLEXIBLE D’IMPULSIONS |
| 14 |
HOSE, |
Manifold to primer, 13 in. (330mm) |
| 16 |
0339279 |
COLLIER DE SERRAGE, conduite de carburant |
| 17 |
0339277 |
CLAMP, Exh back pressure hose |
| 18 |
0334131 |
FLEXIBLE, impulsions |
| 19 |
HOSE, |
Fuel connector to pump, 16 in. (406mm) |
| 21 |
0329661 |
SUPPORT/BOUCHON |
| 22 |
0512743 |
DISPOSITIF DE RETENUE |
| 23 |
0360941 |
FUEL FILTER, 65 micron This part replaces 0435918. |
| 24 |
0331533 |
JOINT, conn. carburant vers capot inférieur |
