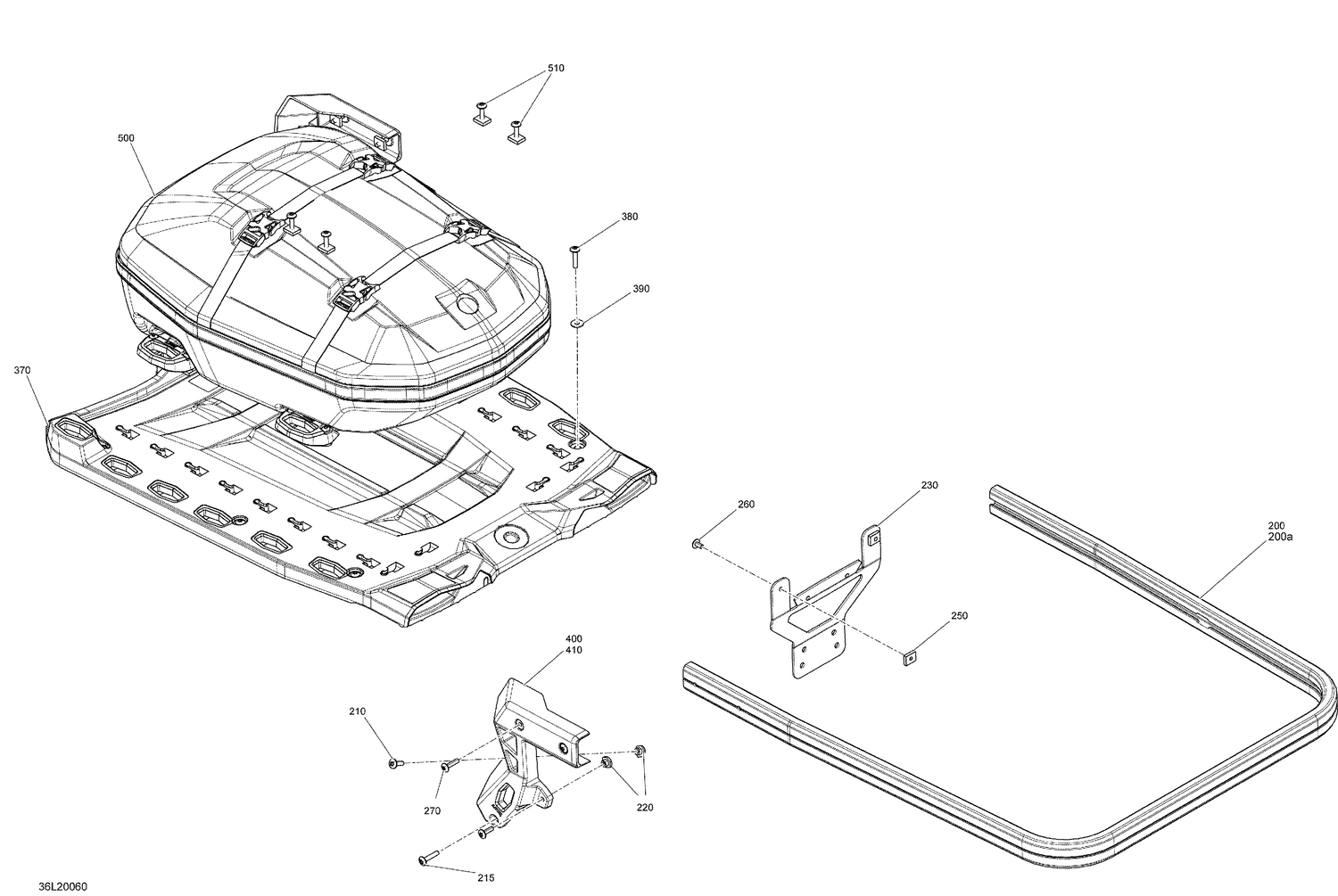

09- Body - Cargo - LTD
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 200a | 293450275 | Insert |
| 210 | 250000717 | Torx Head Screw M6 X 16 |
| 215 | 250000843 | Torx Truss Screw M6 X 30 |
| 220 | 511001120 | Short Insert |
| 230 | 511001406 | Grey, Rear Rack Support |
| 250 | 511001314 | Threaded Insert |
| 260 | 250000767 | Torx Truss Screw M6 X 12 |
| 270 | 250000807 | Torx Truss Screw M6 x 25 |
| 370 | 511001145 | Multi Purpose Plate |
| 380 | 250000843 | Torx Truss Screw M6 X 30 |
| 390 | 234062670 | Flat Washer, Stainless |
| 400 | 511001467 | Grey, RH Rack Support |
| 410 | 511001468 | Grey, LH Rack Support |
