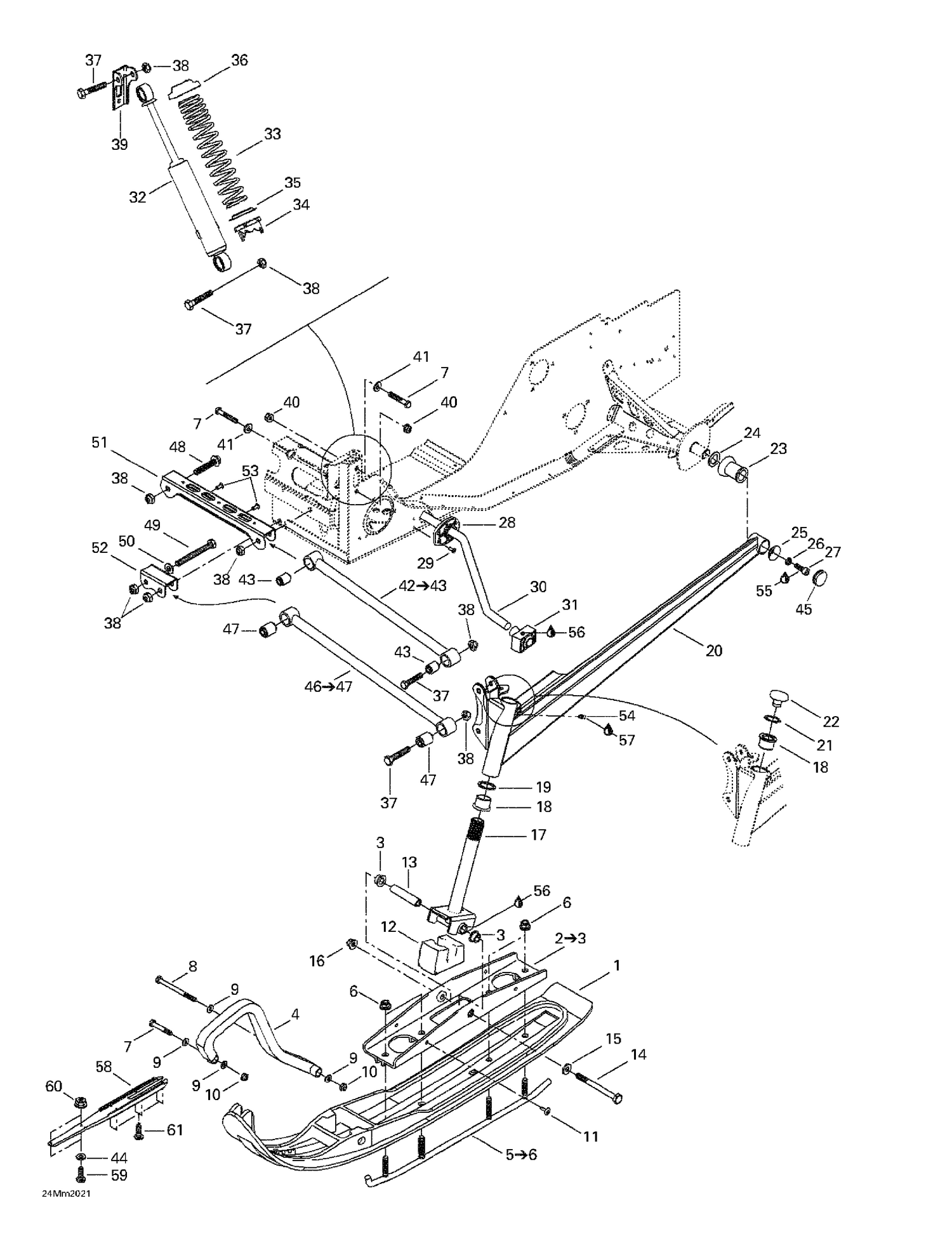

| Ref | Part Number | Description |
|---|
| 1 |
505070189 |
Ski-Liner Flex |
| 3 |
505070001 |
BUSHING - Call your local BRP dealership |
| 4 |
505070963 |
Black, Handle This part replaces 572101000. |
| 6 |
233601416 |
Elastic Locking Nut M10 X 1.5 |
| 7 |
207085044 |
Hex. Screw M8 X 50 |
| 8 |
230080044 |
SCREW-HEX. M8 X 100 - Call your local BRP dealership |
| 9 |
234081410 |
Flat Washer 8 mm |
| 10 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 11 |
390911100 |
RIVET_POP 1/4 - Call your local BRP dealership |
| 12 |
505072018 |
SKI STOPPER - Call your local BRP dealership This part replaces 506151233. |
| 13 |
506133300 |
Spacer |
| 14 |
250000001 |
HEX. SCREW M10 X 110 - Call your local BRP dealership |
| 15 |
732900049 |
Washer |
| 16 |
250100105 |
Flange Nut M10 This part replaces 732610084. |
| 17 |
506151234 |
Ski Leg |
| 18 |
505070003 |
Cushion |
| 19 |
505070004 |
WASHER - Call your local BRP dealership |
| 20 |
505070416 |
RH Swing Arm |
| 21 |
371910400 |
CIRCLIP - Call your local BRP dealership |
| 22 |
572091300 |
Cap |
| 23 |
570062200 |
DAMPER - Call your local BRP dealership |
| 24 |
503146700 |
WASHER - Call your local BRP dealership |
| 25 |
705007171 |
Cup This part replaces 506115800. |
| 26 |
234181401 |
Lock Washer 8 mm |
| 27 |
205082544 |
Socket Head Screw M8 X 25 |
| 28 |
505070139 |
BUSHING - Call your local BRP dealership |
| 29 |
390402300 |
Pop Rivet 3/16" |
| 30 |
505070563 |
STABILISATOR - Call your local BRP dealership |
| 31 |
505070121 |
BALL JOINT BLOCK - Call your local BRP dealership |
| 32 |
505070236 |
Front Shock Ass'y |
| 33 |
505070392 |
Spring |
| 34 |
505073625 |
Adjustment Cam This part replaces 503183700. |
| 35 |
503187500 |
Spring Guide |
| 36 |
706200881 |
Spring Stopper This part replaces 503140600. |
| 37 |
207005544 |
Hex. Screw M10 X 55 |
| 38 |
233601416 |
Elastic Locking Nut M10 X 1.5 |
| 39 |
518317518 |
RH SHOCK BRACKET - Call your local BRP dealership |
| 40 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 41 |
506151245 |
Washer |
| 43 |
505070025 |
Bushing |
| 44 |
234061410 |
Flat Washer 6 mm |
| 45 |
572045900 |
CAP - Call your local BRP dealership |
| 47 |
505070025 |
Bushing |
| 48 |
207605544 |
Hex. Flange Screw M10 X 55 |
| 49 |
207009544 |
Hex. Screw M10 X 95 |
| 50 |
234001410 |
Flat Washer 10 mm |
| 51 |
505070010 |
Upper Arm Bracket |
| 52 |
505070011 |
Lower Arm Bracket |
| 53 |
390402200 |
Pop Rivet 3/16" |
| 54 |
408200700 |
Grease Fitting |
| 55 |
293800060 |
Loctite 243, 10 ml |
| 56 |
219700417 |
SYNTHETIC GREASE, 400 G - Call your local BRP dealership |
| 57 |
293550030 |
Grease, Super Lube This part replaces 293550014. |
| 58 |
505070232 |
PROACTIVE CONTROL (GT ONLY) - Call your local BRP dealership |
| 59 |
250000015 |
Socket Head Screw M5 x 25 (Europe) |
| 60 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 505070189 |
Ski |
Plastique Flex This part replaces 505070190. 505070189 |
| 505070189 |
Ski-Liner |
Flex This part replaces 505070190. 505070189 |
| 505070417 |
Bras |
Oscillant GA 505070417 |
| 505070417 |
LH |
Swing Arm 505070417 |
| 518317519 |
LH |
Shock Bracket 518317519 |
