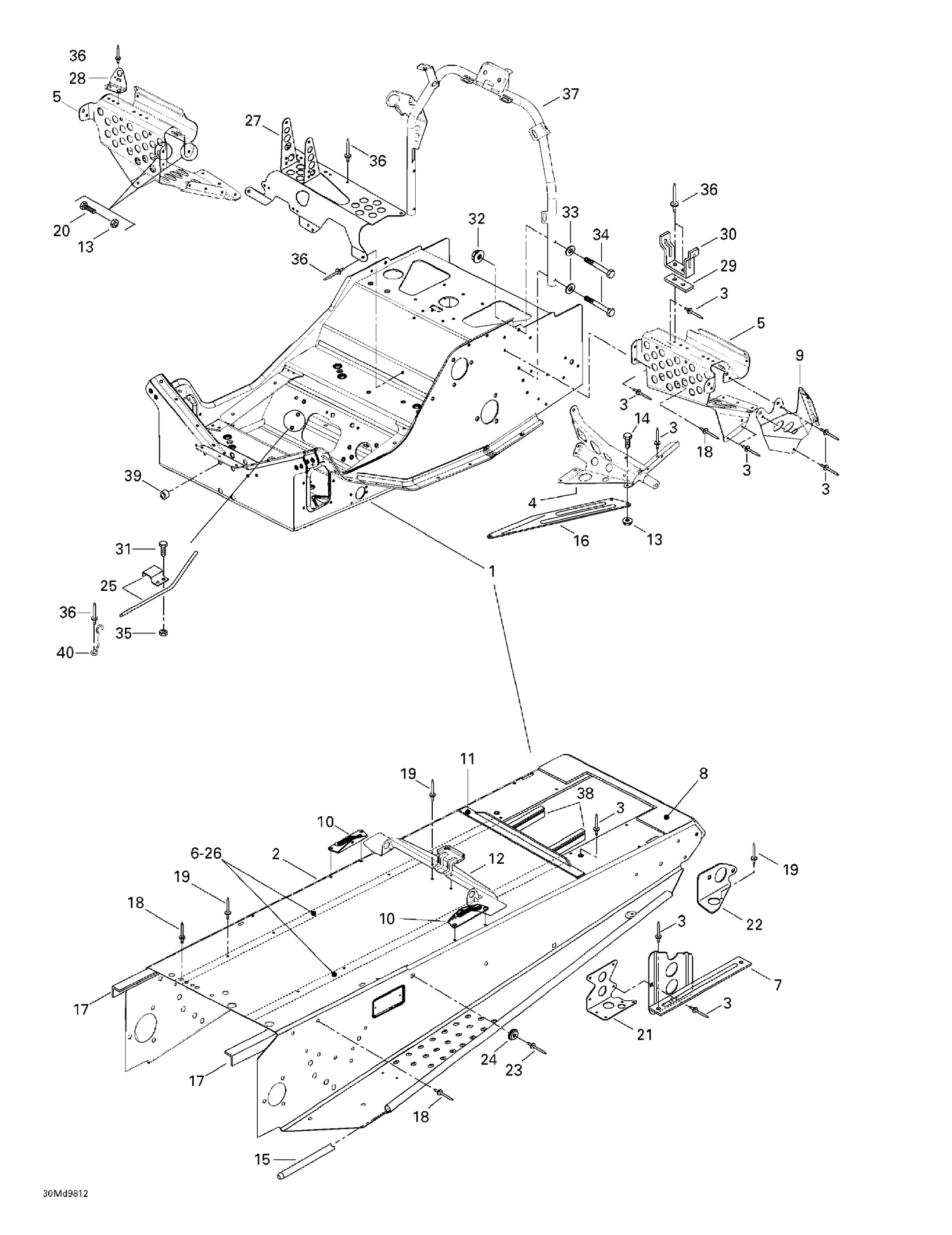

| Ref | Part Number | Description |
|---|
| 2 |
Not |
Available As Spare Part - Tunnel |
| 3 |
390402200 |
Pop Rivet 3/16" |
| 4 |
518320507 |
LH SOOTREST SUPPORT - Call your local BRP dealership |
| 5 |
518320602 |
RH Front Footrest |
| 6 |
518318112 |
Frame Protector |
| 7 |
518316723 |
LH Rear Bracket |
| 8 |
518318102 |
Cap-End |
| 9 |
518318121 |
Upper Plate L.H |
| 10 |
518304747 |
RH Tank Bracket |
| 11 |
518318116 |
Frame Member |
| 12 |
518317560 |
Seat Bracket |
| 13 |
233251434 |
Flange Elastic Nut M5 This part replaces 228751045. |
| 14 |
207151644 |
Hex. Screw M5 X 16 This part replaces 222051665. |
| 15 |
518318109 |
Reinforcement |
| 16 |
518316709 |
RH Reinforcement Plate |
| 17 |
518318123 |
LH Tunnel Reinforcement |
| 18 |
390402300 |
Pop Rivet 3/16" |
| 19 |
390402400 |
Pop Rivet 3/16" |
| 20 |
250000676 |
Forming Screw M5 x 16 This part replaces 732600030. |
| 21 |
518321426 |
RH Junction Plate |
| 22 |
518321000 |
RH Rear Reinforcement |
| 23 |
293150189 |
Pop Rivet 1/8", Black This part replaces 390400700. |
| 24 |
415089100 |
Male Snap |
| 25 |
517293500 |
Guide Rope |
| 26 |
415068500 |
Protector |
| 27 |
518320611 |
Muffler Support |
| 28 |
518310206 |
Valve Bracket |
| 29 |
518207500 |
REINFORCEMENT - Call your local BRP dealership |
| 30 |
518202100 |
Belt Guard Bracket |
| 31 |
207151644 |
Hex. Screw M5 X 16 This part replaces 222051665. |
| 32 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 228761045. |
| 33 |
234061410 |
Flat Washer 6 mm This part replaces 224061151. |
| 34 |
207064044 |
Hex. Screw M6 X 40 This part replaces 222064065. |
| 35 |
232551414 |
Elastic Stop Nut M5 This part replaces 228551045. |
| 36 |
390402200 |
Pop Rivet 3/16" |
| 37 |
518318400 |
Handle Steering Support |
| 38 |
415067300 |
Radiator Protector |
| 39 |
293450166 |
Insert |
| 518304748 |
LH |
Tank Bracket 518304748 |
| 518316710 |
LH |
Reinforcement. Plate 518316710 |
| 518316724 |
Attache |
Arrière DR 518316724 |
| 518316724 |
RH |
Rear Bracket 518316724 |
| 518318122 |
Upper |
Plate R.H 518318122 |
| 518318124 |
RH |
Tunnel Reinforcement 518318124 |
| 518320506 |
RH |
Footrest Support 518320506 |
| 518320506 |
Support |
Repose-Pied DR 518320506 |
| 518320603 |
LH |
Front Footrest 518320603 |
| 518320603 |
Repose-Pied |
Avant GA 518320603 |
| 518321100 |
LH |
Rear Reinforcement 518321100 |
| 518321100 |
Renfort |
Arrière GA 518321100 |
| 518321427 |
LH |
Junction Plate 518321427 |
