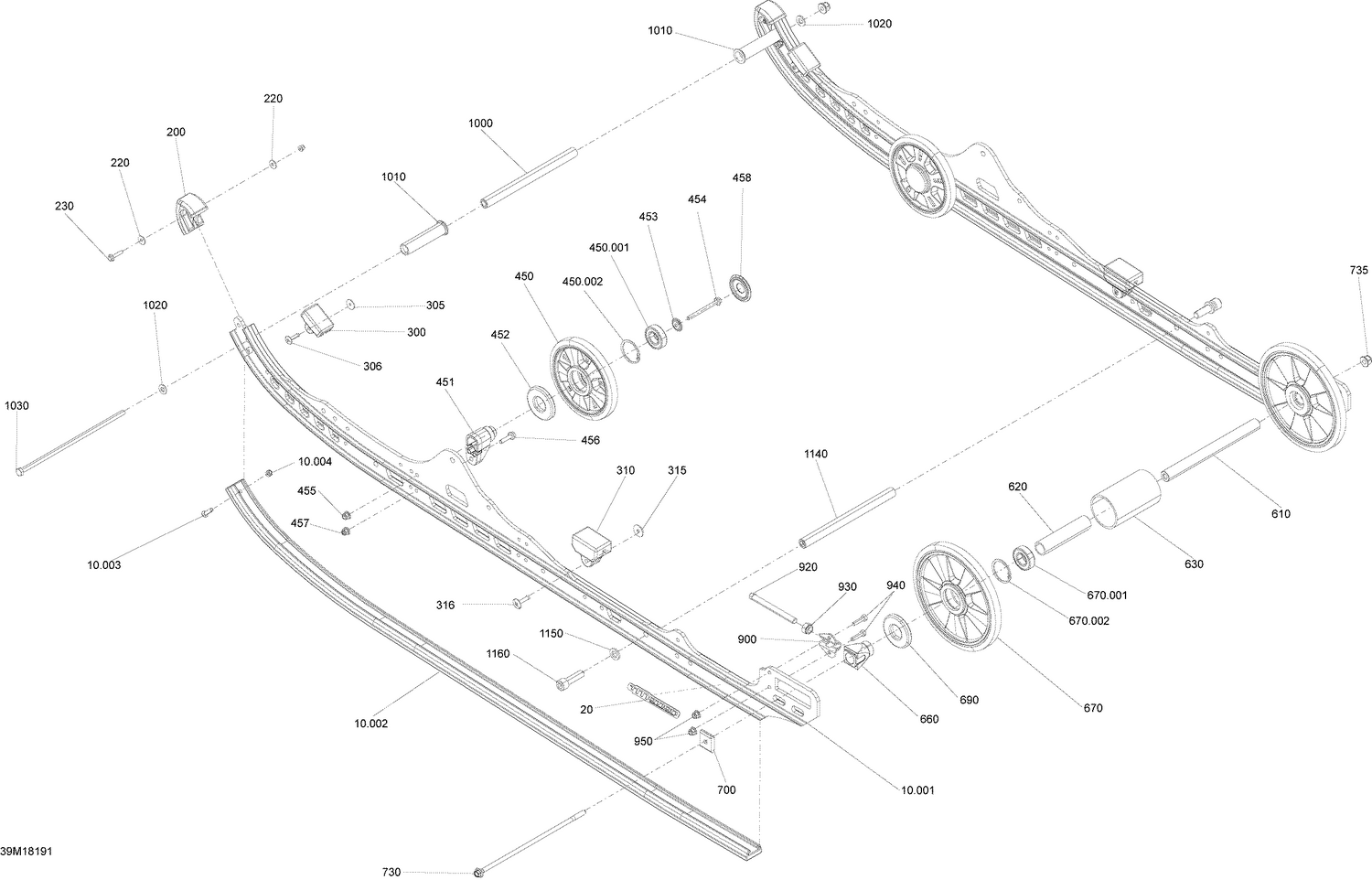

08- Rear Suspension Summit - Package SP - Inferior
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 20 | 516006381 | Runner Decal |
| 200 | 503192299 | Runner Protector |
| 220 | 250200140 | Washer |
| 230 | 207652544 | Hex. Flange Screw M5 X 25 |
| 300 | 503190576 | Rubber Stopper |
| 305 | 503191273 | Washer |
| 306 | 293150224 | Pop Rivet 3/16 |
| 310 | 503193504 | Rubber Stopper |
| 315 | 503191273 | Washer |
| 316 | 293150224 | Pop Rivet 3/16 |
| 451 | 503193894 | Casted Support |
| 452 | 503190434 | Labyrinth Seal |
| 453 | 503191820 | Wheel Cup M6 |
| 454 | 250000944 | Hex. Flange Screw M6 X 70 |
| 455 | 233261466 | Hex. Flange Elastic Nut M6 |
| 456 | 250000945 | Hex. Flange Screw M6 X 25 |
| 457 | 233261466 | Hex. Flange Elastic Nut M6 |
| 458 | 503192771 | Black, Wheel Cap |
| 610 | 503194200 | Rear Axle |
| 620 | 503191263 | Rear Spacer |
| 630 | 503193097 | Bushing |
| 660 | 503190428 | Rear Wheel Spacer |
| 690 | 503190434 | Labyrinth Seal |
| 700 | 503194412 | Axle Slider |
| 730 | 503194265 | Bolt |
| 735 | 233281466 | Elastic Flange Nut M8 |
| 900 | 503192583 | Tensioner |
| 920 | 230100054 | Hex Screw M10 x 100 |
| 930 | 233601466 | Elastic Locking Nut M10 |
| 940 | 207562054 | Hex. Flange Screw S.Grip M6 X 20 |
| 950 | 233261466 | Hex. Flange Elastic Nut M6 |
| 1000 | 503194845 | Axle |
| 1010 | 503191259 | Center Bushing |
| 1020 | 503192494 | Washer |
| 1030 | 503192440 | Bolt M8 X 248mm |
| 1140 | 503191260 | Axle Strap |
| 1150 | 503192496 | Washer |
