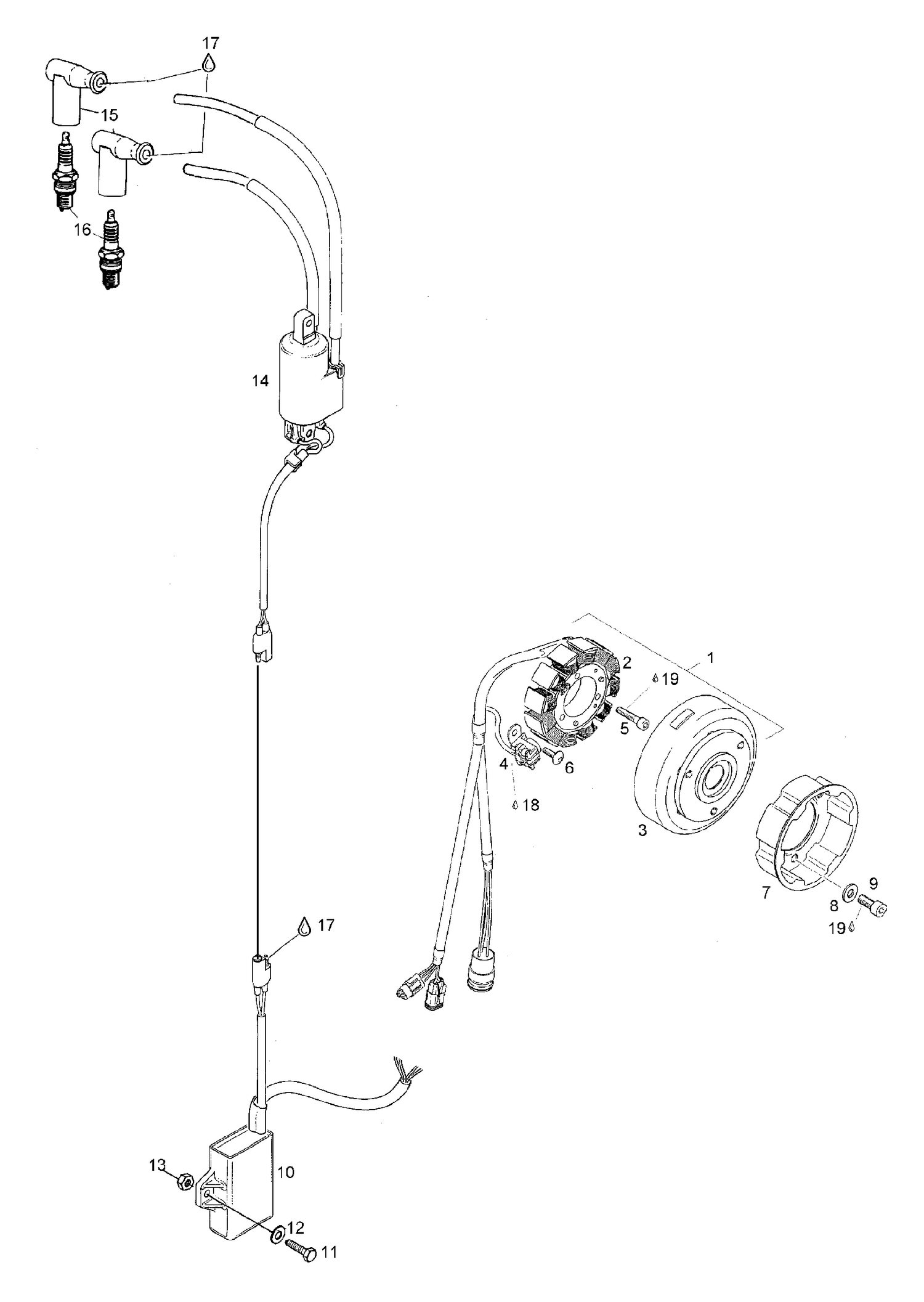

| Ref | Part Number | Description |
|---|
| 2 |
420888612 |
Stator assy |
| 3 |
420888624 |
Magneto flywheel |
| 5 |
205063044 |
Allen screw M6x30 This part replaces 420840880. |
| 6 |
420640324 |
Torx Screw M6 X 16 This part replaces 420640321. |
| 7 |
420852590 |
Starter cup This part replaces 420852419. |
| 8 |
420945832 |
Washer-Lock Din.128 This part replaces 420945752. |
| 9 |
420841520 |
Allen screw M8x12 |
| 10 |
5345520 |
CDI-box |
| 11 |
40030 |
Screw M6x20 |
| 12 |
20003 |
Washer |
| 13 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 14 |
512059073 |
Ignition coil |
| 15 |
278000237 |
SPARK PLUG CAP - Call your local BRP dealership |
| 16 |
219703120 |
Spark Plug NGK BR9ES This part replaces 414961100. |
| 17 |
420897330 |
Lithium-grease |
| 18 |
420297710 |
PU-glue |
