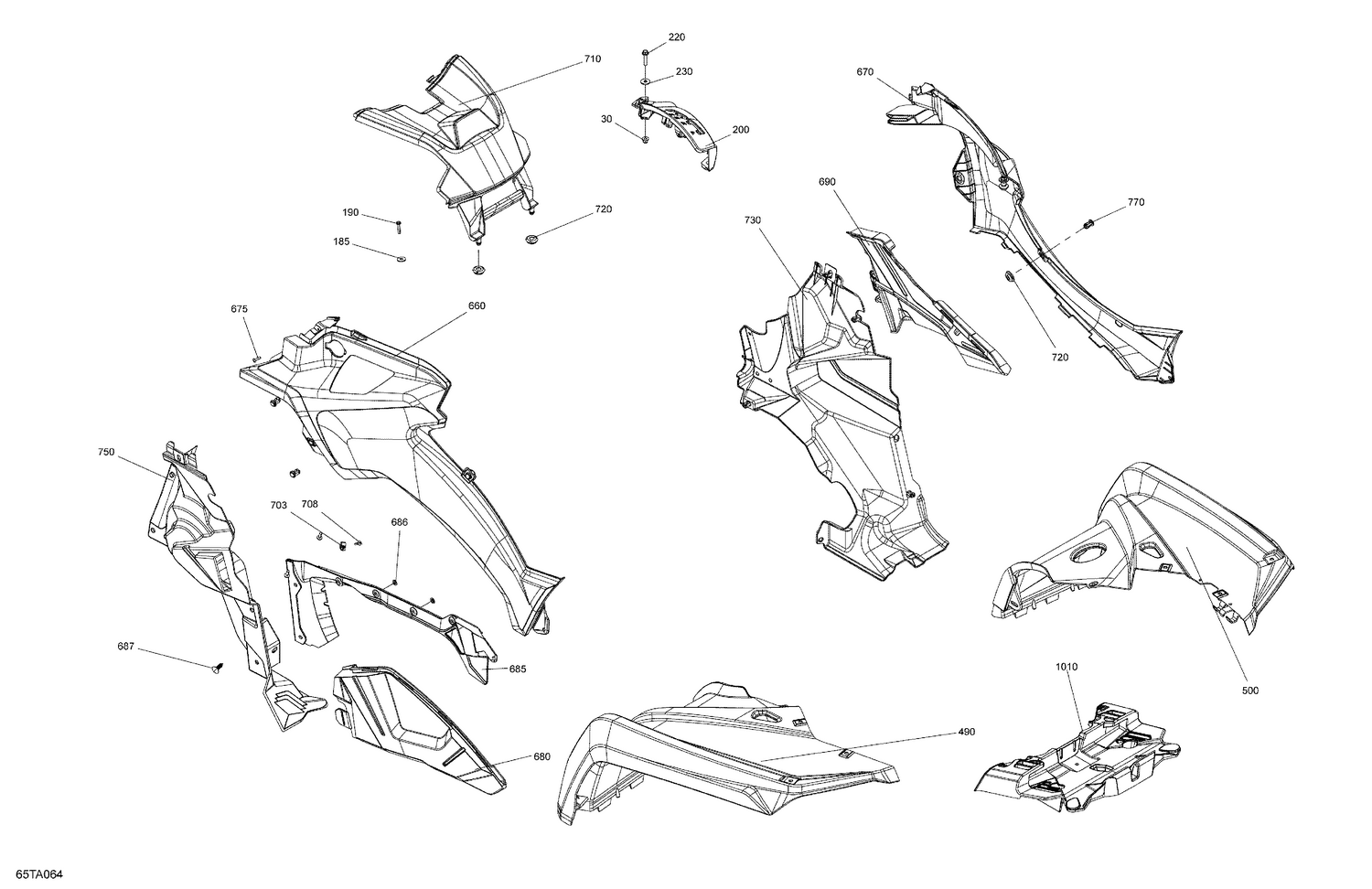

07- Body - Fender Kit
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 30 | 233261434 | Flange Elastic Nut M6 |
| 185 | 234062600 | Flat Washer M6, Stainless |
| 190 | 241152540 | Hex. Flange Screw K50 X 2.24 X 25 |
| 200 | 715003977 | Shifter Gate Kit |
| 220 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 230 | 224061201 | Flat Washer |
| 500 | 705014606 | Mineral Gray Satin, RH Rear Fender |
| 675 | 250000723 | Phillips Screw K40 X 16 |
| 680 | 715007294 | Deflector Body Panel Kit |
| 685 | 705014061 | Deflector Body Panel |
| 686 | 732610072 | Push Nut |
| 687 | 293730006 | Black, Dart |
| 690 | 705003444 | Engine Cover |
| 703 | 250100143 | Extruded Panel Nut M4 X 0.7 |
| 708 | 250000797 | Torx Head Screw M4 X 16 |
| 710 | 715005837 | Dash Kit |
| 720 | 705003264 | Grommet |
| 730 | 705017023 | RH Front Wheel Arch Protector This part replaces 705010714. |
| 750 | 705017022 | LH Front Wheel Arch Protector This part replaces 705012338. |
| 770 | 293150230 | Tuflok Plastic Rivet |
