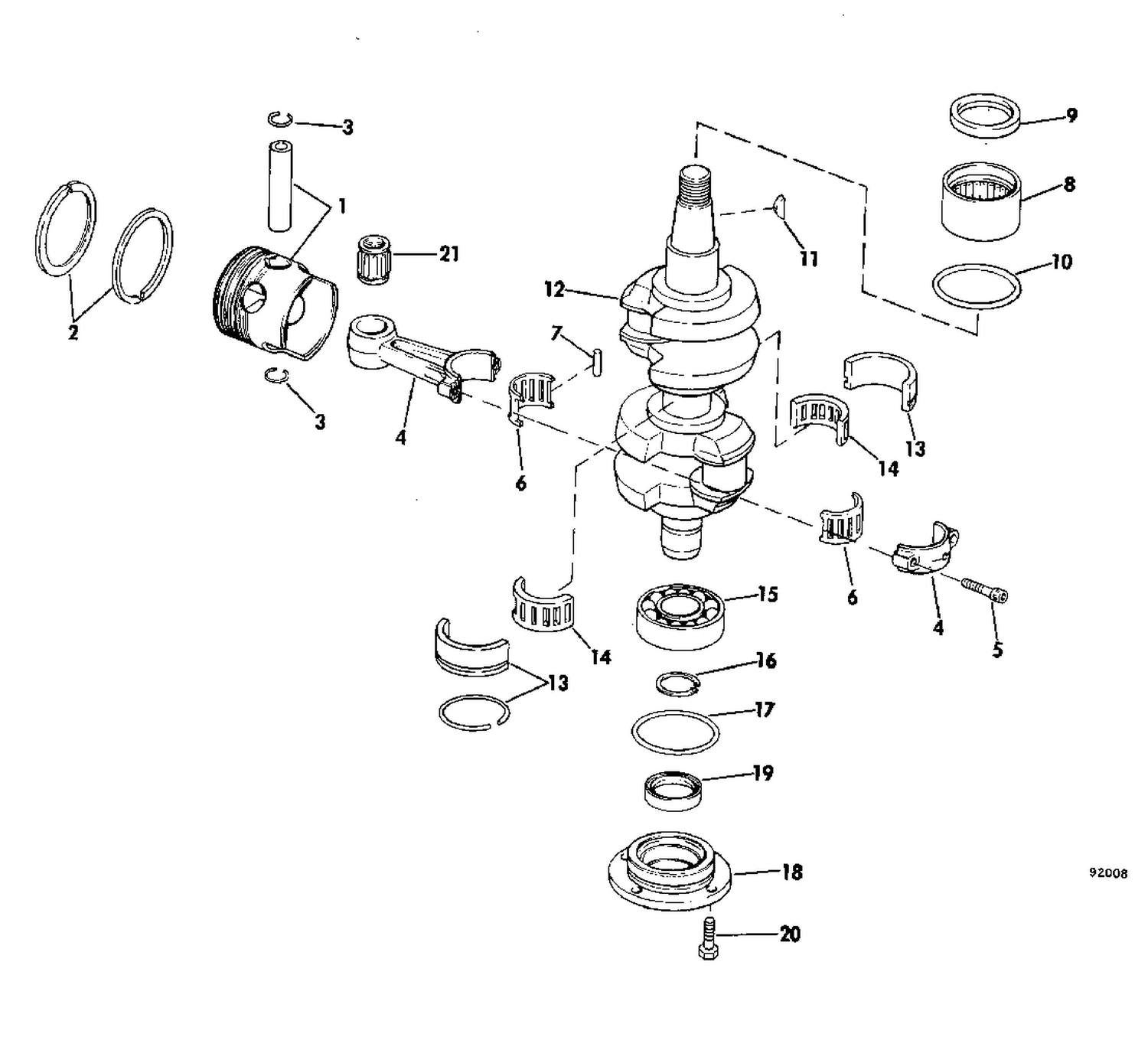

| Ref | Part Number | Description |
|---|
| 1 |
0389661 |
PISTON AND WRIST PIN, Std |
| 1 |
0389664 |
PISTON AND WRIST PIN, .30" o s |
| 2 |
0391170 |
RING SET STD. This part replaces 0388906. |
| 2 |
0391416 |
RING SET .030 This part replaces 0388907. |
| 3 |
0317831 |
Circlip |
| 4 |
0395861 |
CONNECTING ROD This part replaces 0388232. |
| 6 |
0437088 |
BEARING Assy This part replaces 0388188. |
| 7 |
0387142 |
NEEDLE SET, RD |
| 8 |
0390900 |
ROLLER BEARING ASSY This part replaces 0383955. |
| 10 |
0313754 |
O RING |
| 11 |
0120395 |
KEY |
| 12 |
0334203 |
CRANKSHAFT This part replaces 0322928. |
| 13 |
0310433 |
SLEEVE |
| 14 |
0378252 |
BEARING ASSY., Needle |
| 17 |
0308876 |
O RING CRANKCASE HEAD LOWER |
| 18 |
0395819 |
CRANKCASE HEAD ASSY. This part replaces 0389881. |
| 18 |
0395820 |
CRANKCASE HEAD ASSY. This part replaces 0385835. |
| 20 |
0551793 |
SCREW |
