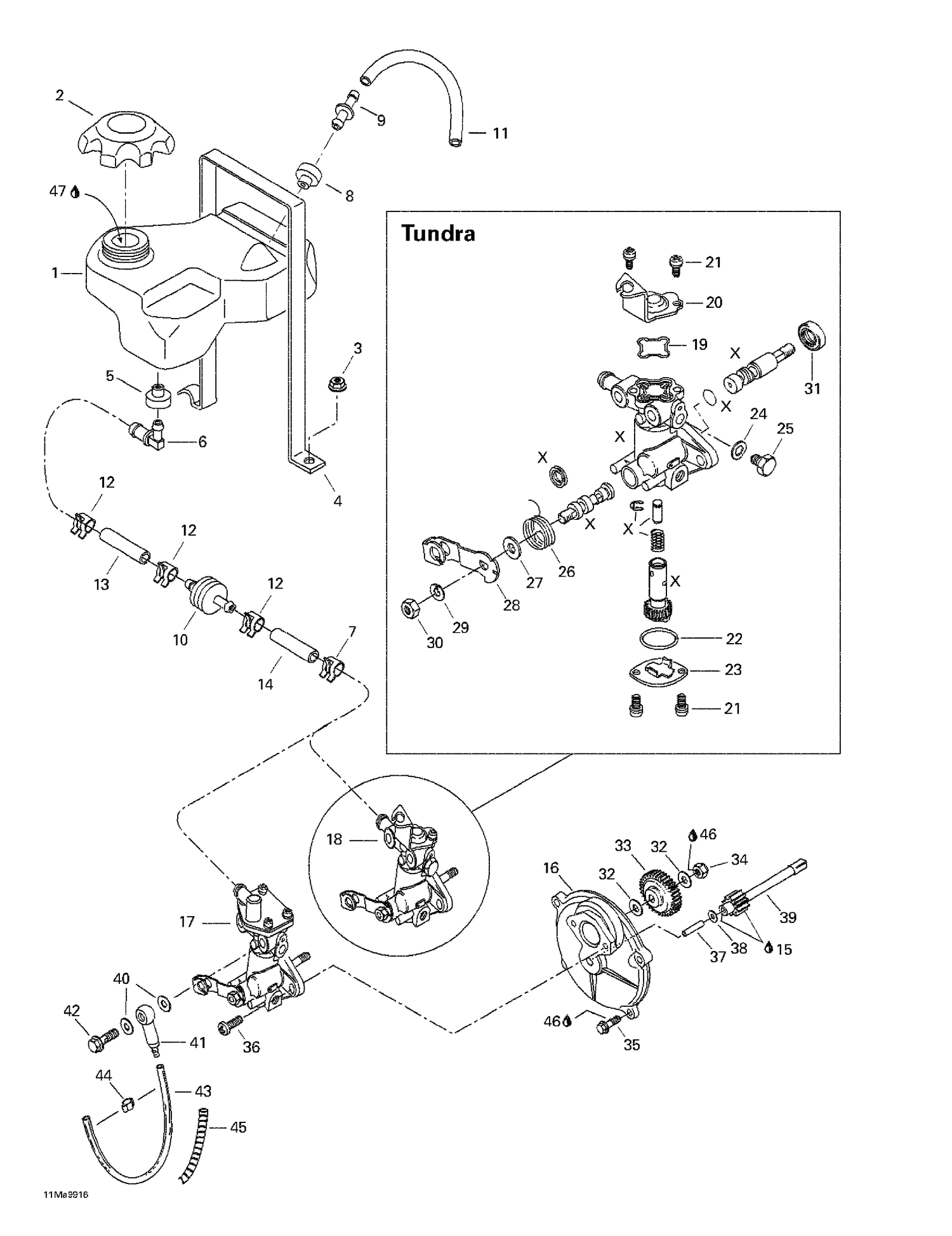

| Ref | Part Number | Description |
|---|
| 1 |
571008600 |
Injection Oil Tank |
| 2 |
513033025 |
Fuel Tank Cap This part replaces 572039600. |
| 3 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 4 |
517263400 |
Retainer Strip |
| 5 |
709200285 |
Grommet This part replaces 570135100. |
| 6 |
414650200 |
Elbow Fitting 90 Deg |
| 7 |
414420700 |
Spring Clamp |
| 8 |
570027700 |
GROMMET - Call your local BRP dealership |
| 9 |
275500398 |
Check Valve |
| 10 |
414536500 |
Filter |
| 11 |
219704414 |
Was 415110000 Polyurethane Hose 5.2 mm |
| 12 |
414415200 |
Spring Clamp |
| 13 |
219704412 |
Polyurethane Hose, 8 Mm 3000Mm Long |
| 14 |
219704412 |
Polyurethane Hose, 8 Mm 3000Mm Long |
| 15 |
413707000 |
Dow Corning 111, 150 g |
| 32 |
420927945 |
FLAT WASHER - Call your local BRP dealership |
| 33 |
420935930 |
Oil Pump Gear, 27 Teeth |
| 34 |
232561434 |
Elastic Stop Nut M6 This part replaces 228561045. |
| 35 |
420841976 |
SCREW - Call your local BRP dealership This part replaces 420841975. |
| 36 |
420841971 |
Screw This part replaces 420841970. |
| 37 |
420832260 |
NEEDLE PIN - Call your local BRP dealership |
| 38 |
420244072 |
Flat Washer 4 This part replaces 420244073. |
| 39 |
420935975 |
GEAR, 9 TEETH - Call your local BRP dealership |
| 40 |
404146600 |
Sealing Washer |
| 41 |
420956010 |
Valve Ass’Y |
| 42 |
404146800 |
Banjo Bolt M6 X 16 |
| 44 |
420853840 |
Clamp |
| 45 |
Not |
Available As Spare Part - Insulator |
| 46 |
293800060 |
Loctite 243, 10 ml This part replaces 293800015. |
| 47 |
293600120 |
OIL PRE-MIX 12 X 500ML - Call your local BRP dealership This part replaces 413803100. |
| 779120 |
2T |
Snowmobile Premium Mineral Oil This part replaces 413803000. 779120 |
