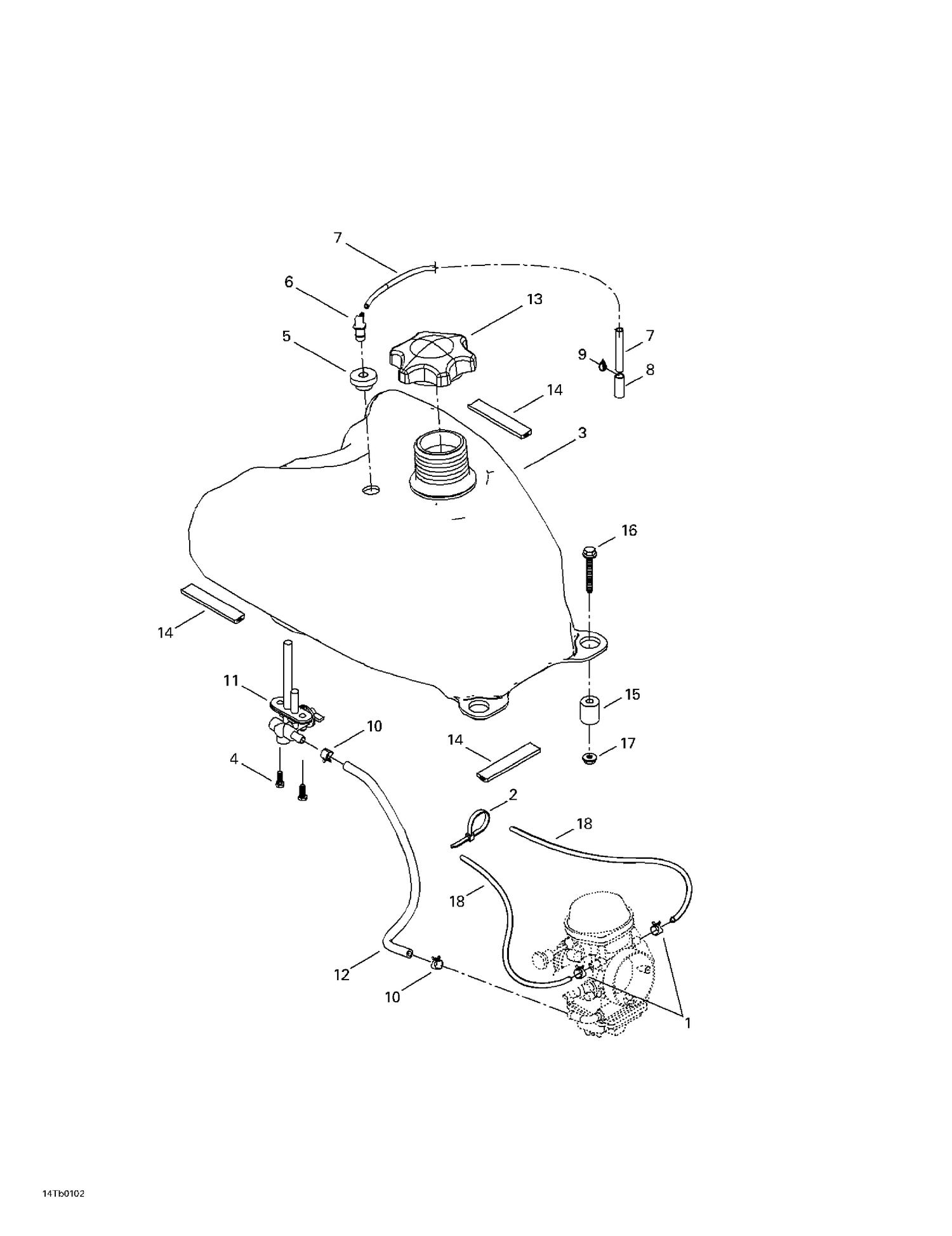

| Ref | Part Number | Description |
|---|
| 1 |
414420700 |
Spring Clamp |
| 2 |
414115200 |
Tie-Rap 180 mm |
| 3 |
709000010 |
FUEL TANK - Call your local BRP dealership |
| 4 |
207151444 |
Hex. Screw M5 X 14 |
| 5 |
570045500 |
Grommet |
| 6 |
414814100 |
Male Connector |
| 7 |
219704709 |
NEEDS DESCRIPTION This part replaces 219704409. |
| 8 |
219704414 |
Was 415110000 Polyurethane Hose 5.2 mm |
| 10 |
414655700 |
Spring Clamp |
| 11 |
709000011 |
FUEL VALVE - Call your local BRP dealership |
| 12 |
204560396 |
HOSE 5/16 - Call your local BRP dealership This part replaces 275500345. |
| 13 |
513033722 |
Fuel Tank Cap 91 Octane This part replaces 572073900. |
| 14 |
219704364 |
Neoprene Seal (1PAC=3M) |
| 15 |
705000114 |
SPACER - Call your local BRP dealership |
| 16 |
207686044 |
Hex. Flange Screw M8 x 60 |
| 17 |
233281414 |
Hex. Flange Elastic Nut M8 |
