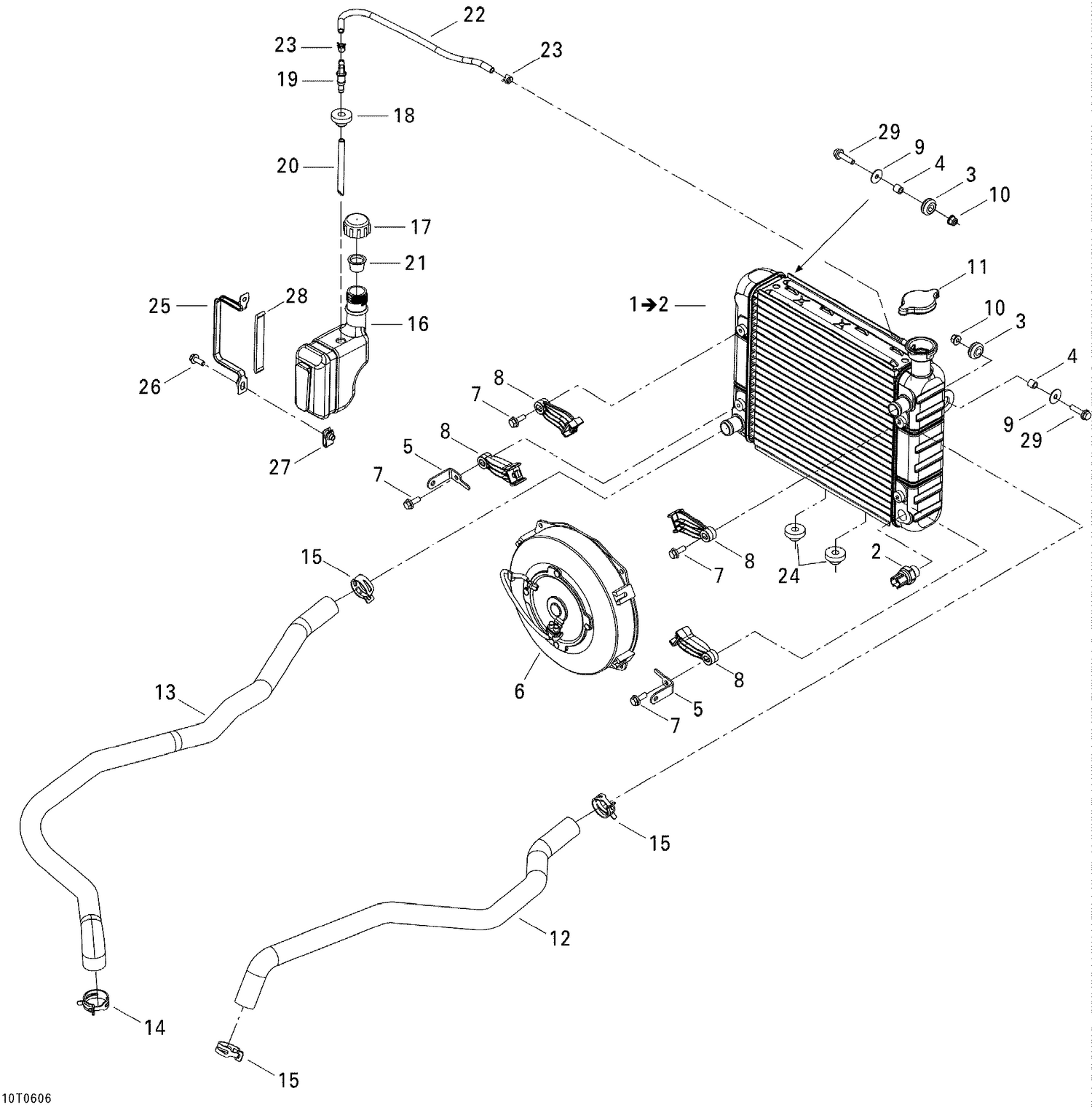

| Ref | Part Number | Description |
|---|
| 2 |
715900095 |
Temperature Sensor This part replaces 709200089. |
| 3 |
709000582 |
Grommet This part replaces 293720053. |
| 4 |
293900105 |
Bushing This part replaces 293900045. |
| 5 |
709200284 |
SUPPORT - Call your local BRP dealership This part replaces 705000677. |
| 6 |
709200158 |
Fan Ass'y |
| 7 |
207562544 |
Hex. Flange Screw M6 X 25 |
| 8 |
709200159 |
FAN SUPPORT - Call your local BRP dealership |
| 9 |
250200082 |
Flat Washer This part replaces 391302000. |
| 10 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 11 |
709200207 |
Radiator Pressure Cap This part replaces 709200033. |
| 12 |
709200077 |
RADIATOR INLET HOSE - Call your local BRP dealership |
| 13 |
709200123 |
RADIATOR OUTLET HOSE - Call your local BRP dealership |
| 14 |
293650108 |
Norma Spring Clamp |
| 15 |
293650109 |
Norma Spring Clamp |
| 16 |
709200099 |
COOLANT TANK - Call your local BRP dealership |
| 17 |
709200009 |
TANK CAP - Call your local BRP dealership |
| 18 |
709200285 |
Grommet This part replaces 570135100. |
| 19 |
414580600 |
Elbow Male Connector |
| 20 |
219704414 |
Was 415110000 Polyurethane Hose 5.2 mm |
| 21 |
709200205 |
PROTECTION CAP - Call your local BRP dealership This part replaces 709200034. |
| 22 |
219704414 |
Was 415110000 Polyurethane Hose 5.2 mm |
| 23 |
414554800 |
Spring Clamp |
| 24 |
709200285 |
Grommet This part replaces 570135100. |
| 25 |
709200080 |
TANK ANCHOR - Call your local BRP dealership |
| 26 |
210261650 |
Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 27 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000048. |
| 28 |
219704476 |
Gasket, Neoprene 2000Mm Long This part replaces 219704372. |
