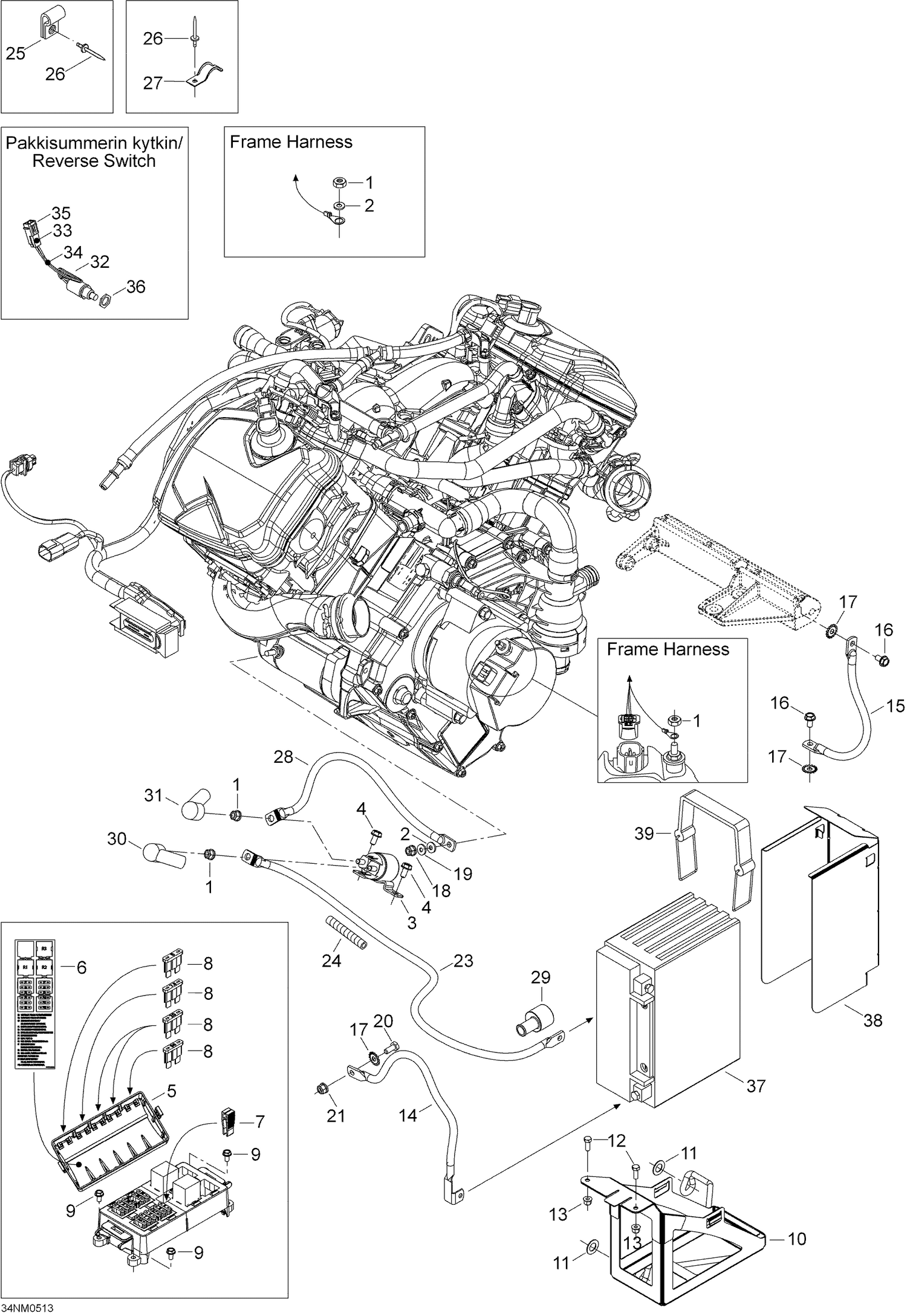

| Ref | Part Number | Description |
|---|
| 1 |
33010 |
Lock Nut M6 (1=10Pcs) |
| 2 |
20003 |
Washer A6,4 |
| 3 |
515176011 |
Relay-starter |
| 4 |
40327 |
Hex. screw M6 x 12 |
| 5 |
515176066 |
COVER - Call your local BRP dealership |
| 6 |
516001613 |
Decal, fuse |
| 7 |
515175811 |
FUSE TOOL - Call your local BRP dealership |
| 8 |
278000344 |
Fuse 5 A |
| 8 |
278000704 |
FUSE, 7.5 AMPERES - Call your local BRP dealership |
| 8 |
409003900 |
Fuse 20 A This part replaces 278001143. |
| 8 |
410917200 |
Fuse 30 A |
| 9 |
210251650 |
Screw-Forming Hex.Hd.Fl.Bzn This part replaces 210251680. |
| 10 |
515175954 |
Battery support |
| 11 |
20005 |
WASHER M10 - Call your local BRP dealership |
| 12 |
40247 |
Screw M5 x 16 |
| 13 |
233251434 |
Flanged Elastic Nut M5 This part replaces 33062. |
| 14 |
515175962 |
Ground wire |
| 15 |
515175483 |
GROUND WIRE - Call your local BRP dealership |
| 16 |
40327 |
Hex. screw M6 x 12 |
| 17 |
20017 |
Serrated lock washer |
| 18 |
33002 |
Nut M6 |
| 19 |
20052 |
Spring washer A6 |
| 20 |
40029 |
Hex. screw M6 x 16 |
| 22 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 23 |
515175794 |
Battery wire |
| 24 |
390004 |
Tubing |
| 25 |
27092 |
Clamp |
| 26 |
36489 |
Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
| 27 |
27025 |
Clamp |
| 28 |
515175793 |
Battery wire |
| 29 |
515175919 |
Cap protection |
| 30 |
570151000 |
Cap protection |
| 31 |
278001771 |
PROTECTOR CAP - Call your local BRP dealership |
| 33 |
515175232 |
Male terminal |
| 34 |
293740005 |
Tape |
| 35 |
515175654 |
Male terminal housing |
| 36 |
250100012 |
BRASS NUT - Call your local BRP dealership |
| 37 |
219800519 |
Battery_12 Volt 21Ah This part replaces 515175895. |
| 38 |
515175616 |
DEFLECTOR - Call your local BRP dealership |
