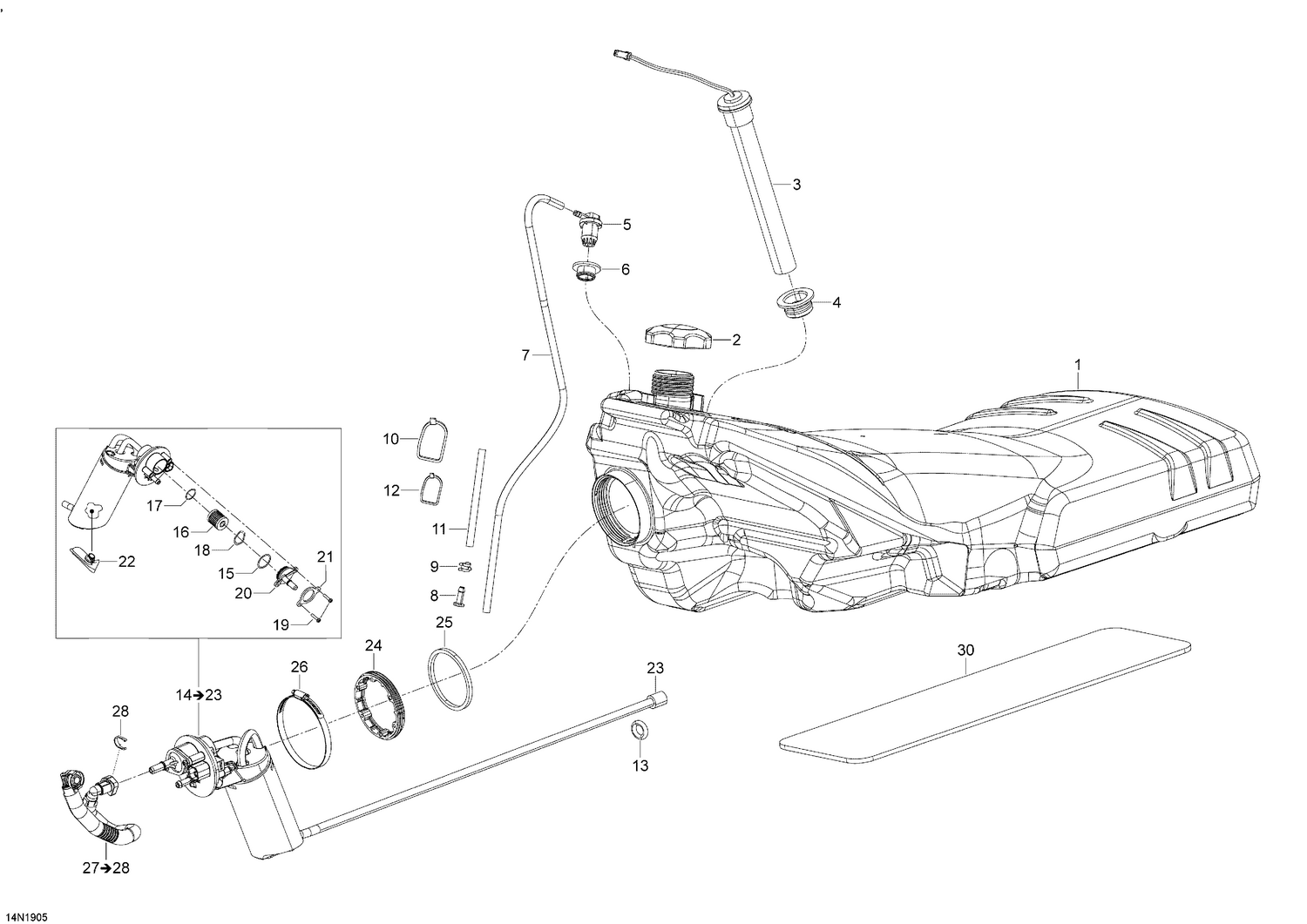

02- Fuel
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 513033757 | Fuel Tank |
| 3 | 513033902 | Fuel Sensor |
| 4 | 293720113 | Grommet |
| 5 | 513033842 | Check Valve |
| 6 | 513033596 | Grommet |
| 7 | 219704410 | Polyurethane Hose 10000Mm Long |
| 9 | 414554800 | Spring Clamp |
| 11 | 504153468 | Protector Tube |
| 13 | 293300184 | O Ring |
| 15 | 415129509 | O-Ring |
| 16 | 415129510 | Fuel Filter |
| 17 | 415129511 | O-Ring |
| 18 | 415129512 | Wave Washer |
| 19 | 415129513 | Screw |
| 20 | 415129685 | Cover |
| 21 | 415129569 | FUEL PUMP RING - Call your local BRP dealership |
| 22 | 415129451 | Fuel Filter |
| 23 | 414872100 | Fuel Filter Strainer |
| 24 | 513033180 | Ring |
| 25 | 513033334 | Gasket |
| 28 | 513033135 | Locking Clip |
| 40 | 513033628 | Clamp |
