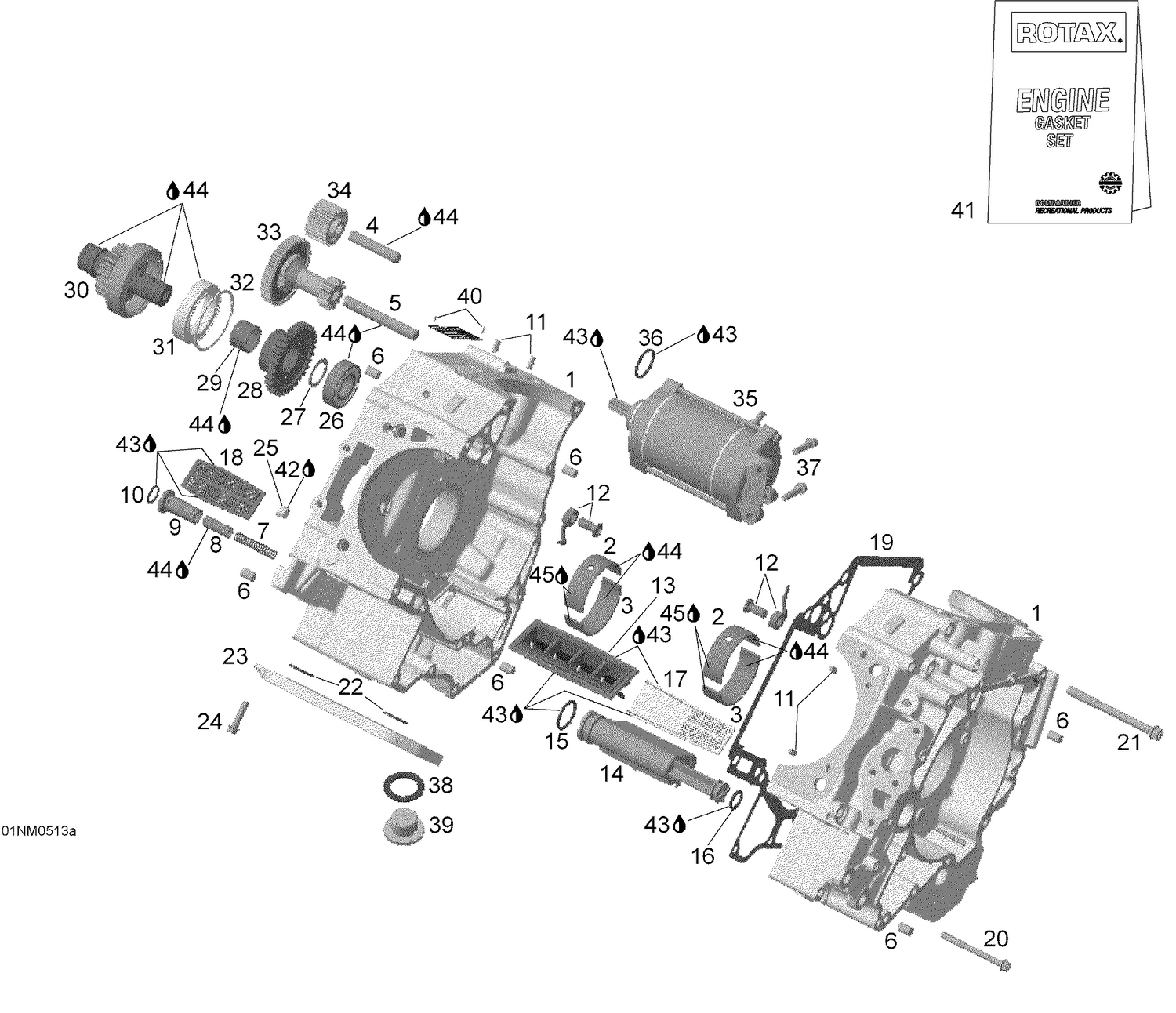

| Ref | Part Number | Description |
|---|
| 2 |
420933492 |
BEARING SLEEVE - Call your local BRP dealership |
| 3 |
420933495 |
Bushing_Half - Call your local BRP dealership |
| 4 |
420229302 |
Location Pin This part replaces 420229301. |
| 5 |
420229410 |
PIN - Call your local BRP dealership |
| 6 |
420632010 |
Center Pin 8 X 12 |
| 7 |
420239445 |
Spring DM6,95 D1,15 L46 |
| 8 |
420256510 |
Pressure regulating piston |
| 9 |
420956780 |
VALVE SEAT - Call your local BRP dealership |
| 10 |
420230880 |
O-RING - Call your local BRP dealership |
| 11 |
420929650 |
Drive pin 5 x 10 |
| 12 |
420956820 |
OIL NOZZLE ASS?Y - Call your local BRP dealership |
| 13 |
420924735 |
VALVE HOUSINS ASS?Y - Call your local BRP dealership |
| 15 |
420931630 |
O-RING - Call your local BRP dealership |
| 16 |
293300024 |
O-ring |
| 17 |
420856070 |
Oil sieve |
| 18 |
420856072 |
OIL SIEVE - Call your local BRP dealership |
| 19 |
420950600 |
GASKET - Call your local BRP dealership |
| 20 |
420440602 |
Screw M6 x 65 |
| 21 |
420440412 |
Screw M8 x 90 |
| 22 |
420430373 |
O-Ring This part replaces 420430370. |
| 23 |
420811770 |
COVER - Call your local BRP dealership |
| 24 |
420440234 |
Flanged Torx Screw M6 X 25 This part replaces 420440232. |
| 25 |
420240480 |
PLUG SCREW - Call your local BRP dealership |
| 26 |
420232192 |
BALL BEARING - Call your local BRP dealership |
| 27 |
420227440 |
THRUST WASHER - Call your local BRP dealership |
| 28 |
420834410 |
CAM CLUTCH DRIVE GEAR, 32 TEETH - Call your local BRP dealership |
| 29 |
420232745 |
Bearing_Needle - Call your local BRP dealership |
| 31 |
420259492 |
SPRAG CLUTCH - Call your local BRP dealership |
| 32 |
420845590 |
SNAP RING - Call your local BRP dealership |
| 33 |
420834705 |
Double gear (61/11 teeth) |
| 34 |
420834430 |
INTERMEDIATE GEAR, 33 TEETH - Call your local BRP dealership |
| 35 |
420296480 |
ELECTRIC STARTER ASS?Y - Call your local BRP dealership |
| 36 |
Not |
Available As Spare Part - O-ring |
| 37 |
420440234 |
Flanged Torx Screw M6 X 25 This part replaces 420440232. |
| 38 |
420950620 |
GASKET RING, PLUG SCREW - Call your local BRP dealership |
| 39 |
420641090 |
Plug screw |
| 40 |
420249073 |
Grooved pin |
| 41 |
420889981 |
GASKET SET ENGINE - Call your local BRP dealership |
| 42 |
293800060 |
Loctite 243, 10 ml |
| 43 |
293550030 |
Grease, Super Lube This part replaces 293550014. |
| 44 |
293600054 |
Engine oil 4 strokes, 0W40, 12 x 1 liter |
