Parts Catalog

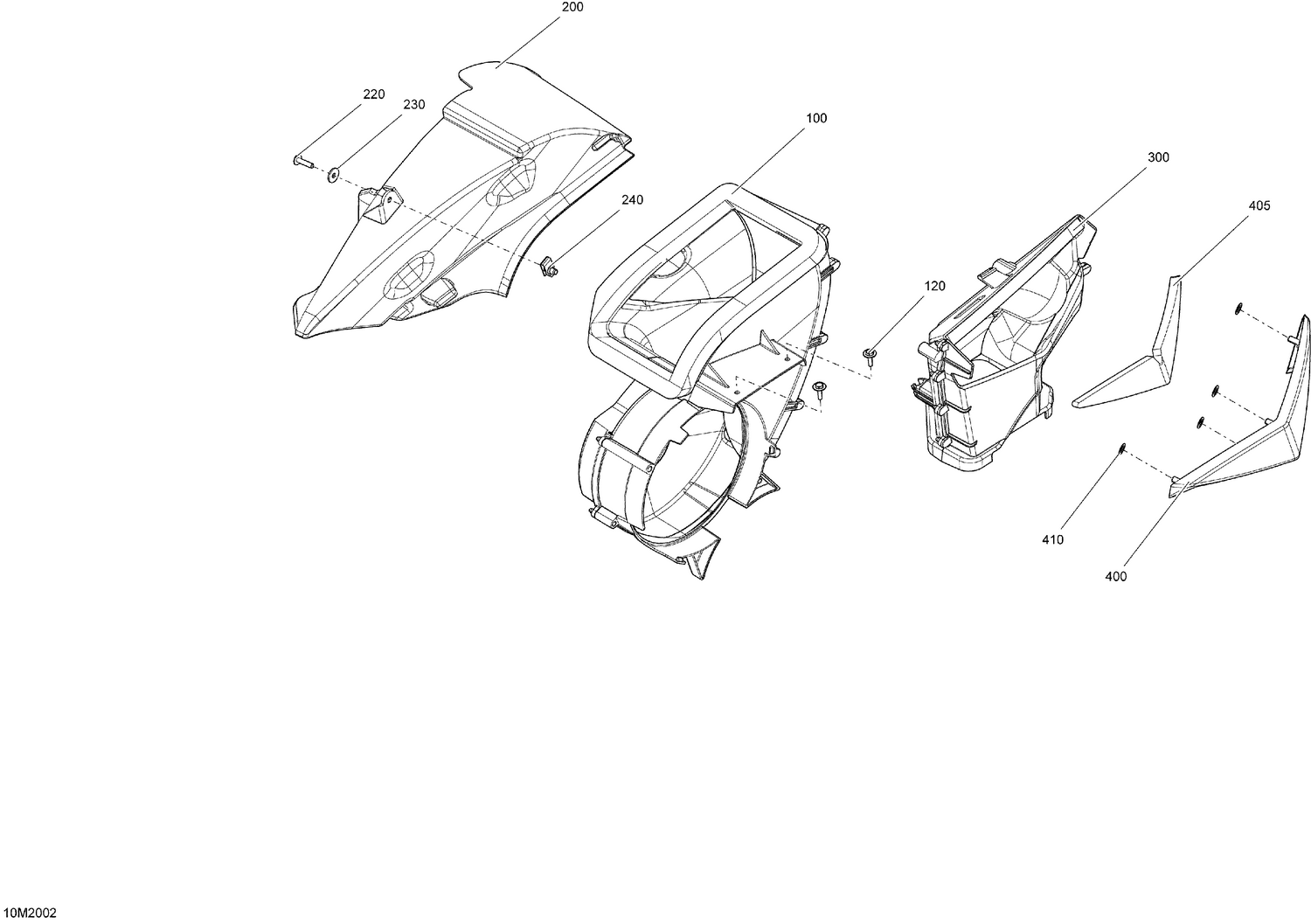

03- Cooling - System

Parts (9)

Ref	Part Number	Description
100	509000840	Inlet Duct
120	250000725	Screw M4 X 16
200	509000451	Air Chamber
220	250000724	Torx Screw M5 X 20
230	391301600	Washer
240	250000958	Panel Nut M5 X 0.8
300	509000452	Outlet Duct
400	509000611	Outlet Air Deflector
405	509000574	Air Inlet Foam
