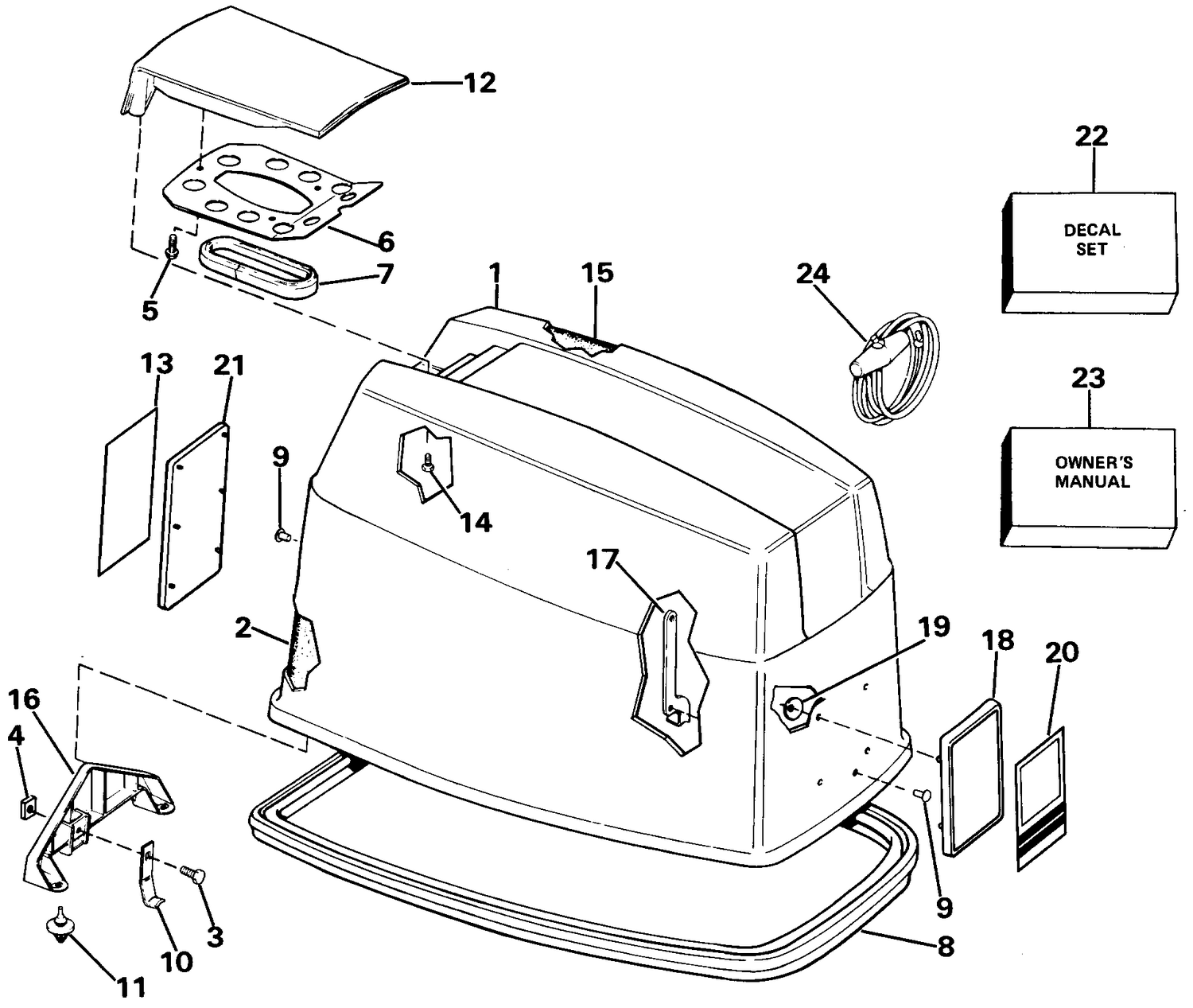

ENGINE COVER - EVINRUDE
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0282482 | ENGINE COVER ASSEMBLY |
| 1 | 0282483 | ENGINE COVER ASSEMBLY |
| 6 | 0206520 | AIR INLET BAFFLE |
| 7 | 0315984 | SEAL , Baffle to motor cover This part replaces 0209507. |
| 8 | 0209518 | SEAL, Engine cover |
| 13 | 0210206 | PLATE, Applique, rear, 75 |
| 13 | 0210207 | PLATE, Applique, rear, 70 |
| 18 | 0209788 | APPLIQUE, Front |
| 20 | 0209824 | PLATE, Applique, front, 75 |
| 20 | 0210087 | PLATE, Applique, front, 70 |
| 21 | 0209492 | APPLIQUE, Front |
| 22 | 0282443 | DECAL SET |
| 23 | 0209840 | OWNER'S MANUAL |
