Home / BRP / Can-Am 3-Wheel Vehicles / 2025 / 004 - Ryker / RYKER 900 ACE, International, 2025 / International - RYKER - STD - 900 ACE - F2SB - Deep Black, 2025 000F2SB00 / 01- ROTAX - CVT Cover

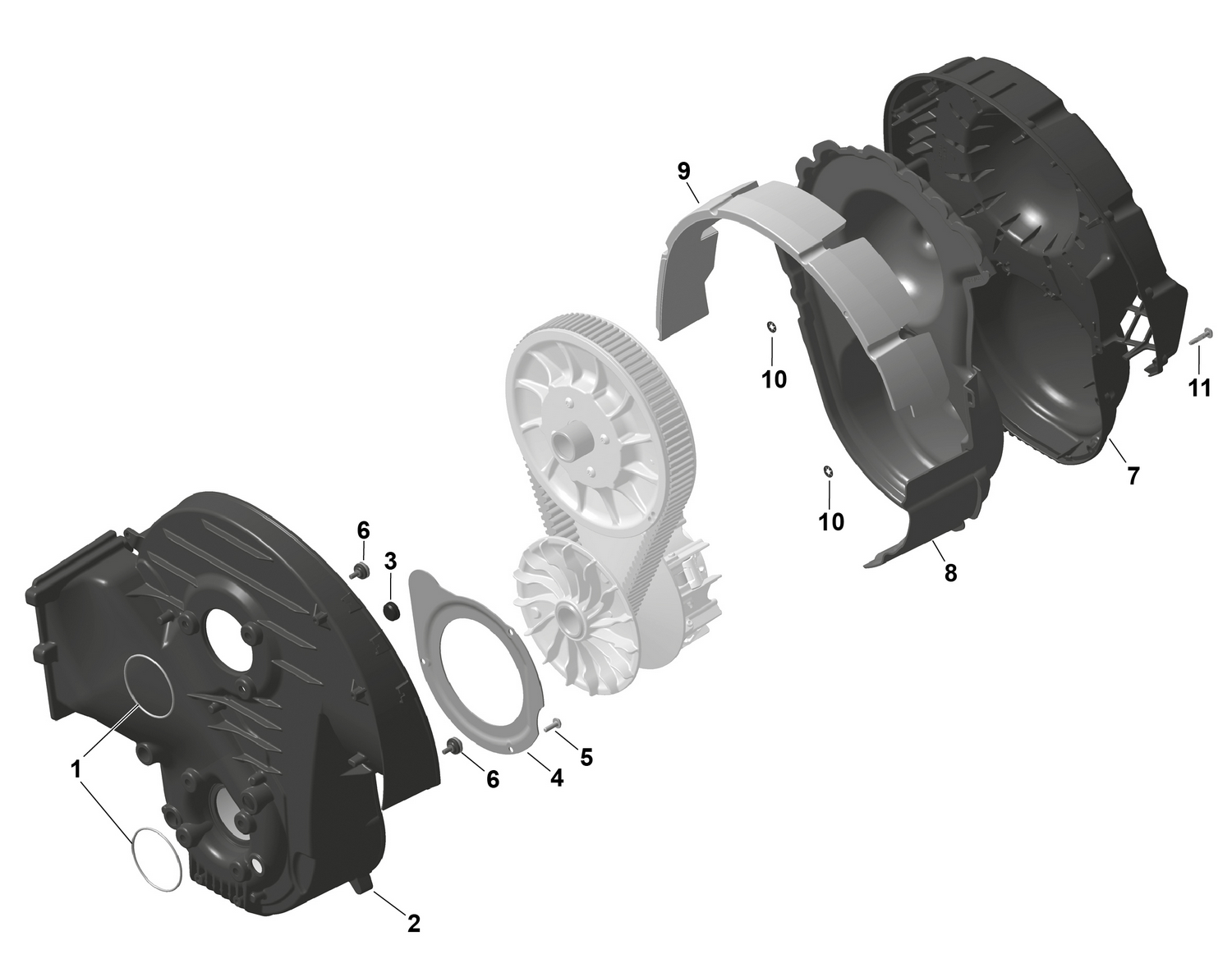

01- ROTAX - CVT Cover

01- ROTAX - CVT Cover

Parts (9)

RefPart NumberDescription
2 420212700 CVT Guide
3 420460595 Plug
4 420251305 Cover Sheet
5 420841103 Torx Flange Screw M6 X 20
6 420440497 Distance Screw M6
7 420212710 Variator Cover
8 420897380 Insulating Mat
9 420952830 Guard Plate
10 420245750 Locking Element
