Home / BRP / STERN DRIVE / 1986 / 4.30 / 432AMKWB 1986 / POWER TRIM AND TILT

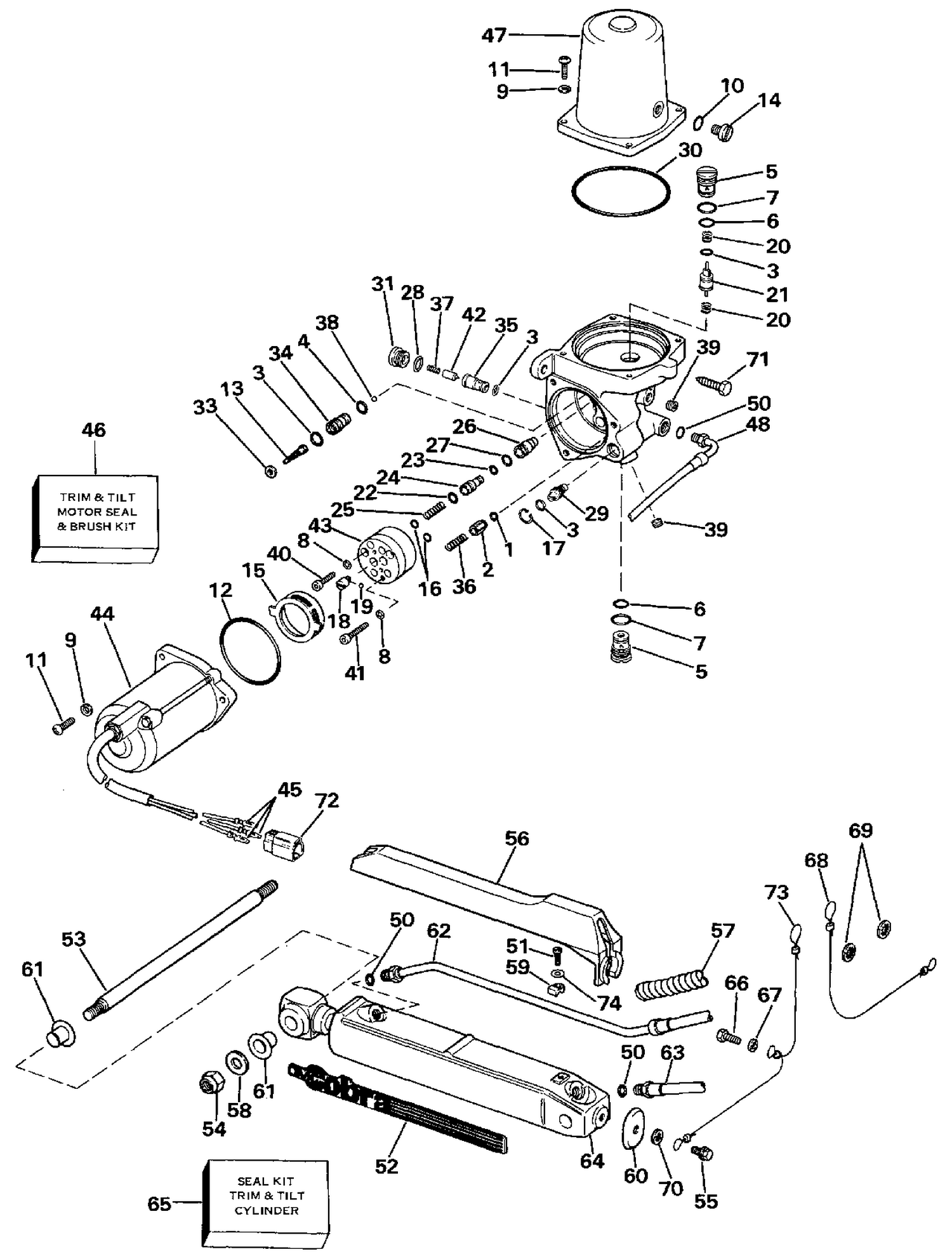

POWER TRIM AND TILT

POWER TRIM AND TILT

Parts (41)

RefPart NumberDescription
8 0360252 WASHER This part replaces 0306311.
22 0324677 JOINT TORIQUE, mamelon, vidange inférieure
23 0324678 JOINT TORIQUE Galet de came de papillon
30 3852508 O-RING, Reservoir This part replaces 0910702.
31 0910866 HOUSING, Valve seat
33 0911307 WASHER
34 0911603 VALVE SEAT, Filter
35 0911620 SEAT, Relief valve
36 0911965 SPRING, Pump relief
37 0911966 SPRING, Relief valve
38 0800128 BALL
39 0912297 PLUG
40 0912299 SCREW, Short
41 0912300 SCREW, Long
42 0983786 VALVE CORE & SEAL
43 0984032 OIL PUMP ASSY.
44 0984356 MOTOR & CABLE ASSY.
46 0984961 SEAL & BRUSH KIT
47 0984357 COVER & DECAL ASSY.
48 0983945 OIL LINE ASSY., Pump to manifold
52 0912261 APPLIQUE, Tilt cylinder
53 0911819 PIVOT PIN, Tilt cylinder
54 3853329 LOCKNUT, Transom plate This part replaces 0911835.
55 3852568 SCREW, Cover This part replaces 0911859.
56 3852378 COVER, Tilt cylinder This part replaces 0911907.
57 0911909 JACKET, Oil line
58 3852573 WASHER, Pivot pin This part replaces 0911915.
59 3852579 RETAINER, Oil line This part replaces 0911967.
60 3852681 RETAINER, Cover This part replaces 0912128.
61 0910855 BUSHING, Pivot pin
62 3853854 OIL LINE, Starboard, down This part replaces 0983946.
62 3853856 OIL LINE, Port, down This part replaces 0983948.
63 3853855 OIL LINE, Starboard, up This part replaces 0983947.
63 3853857 OIL LINE, Port, up This part replaces 0984024.
64 0984692 CYLINDER ASSY., Limited This part replaces 0984613.
64 0985660 CYLINDER ASSY This part replaces 0983949.
65 0985060 SEAL KIT
68 0984433 GROUND WIRE, 2 loop
71 3852581 LAG SCREW This part replaces 0911975.
73 0984434 GROUND WIRE, 3 loop
0984355 0984355 MANIFOLD & PUMP ASSY.
