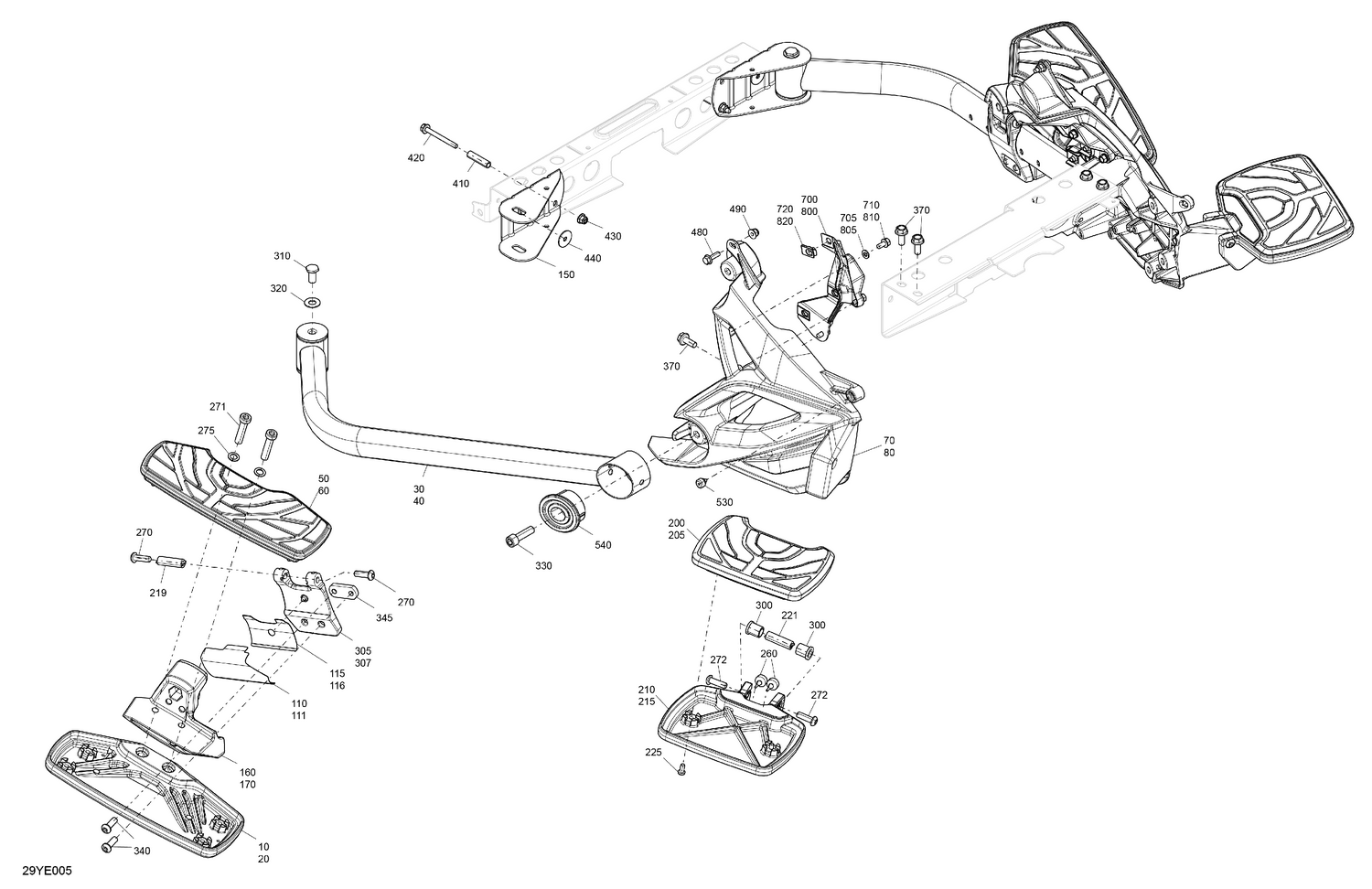

| Ref | Part Number | Description |
|---|
| 10 |
705009454 |
LH Foot Board |
| 20 |
705009455 |
RH Foot Board |
| 30 |
705008955 |
Carbon Black, LH Footrest Support |
| 40 |
705008954 |
Carbon Black, RH Footrest Support |
| 50 |
705015846 |
LH Footrest Pad |
| 60 |
705015847 |
RH Footrest Pad |
| 70 |
705017652 |
Sterling Silvert, RH Rear Footrest Support |
| 80 |
705017653 |
Sterling Silver, LH Footrest |
| 110 |
705014178 |
LH Outer Protective Film |
| 111 |
705014179 |
RH Outer Protective Film |
| 115 |
705014175 |
RH Inner Protective Film |
| 116 |
705014174 |
LH inner Protective Film |
| 150 |
705008950 |
Tube Support |
| 160 |
705009466 |
Carbon Black, LH Slider Outside |
| 170 |
705009463 |
Carbon Black, RH Slider Outside |
| 200 |
705009234 |
Foot Board Pad, Passenger |
| 205 |
705009234 |
Foot Board Pad, Passenger |
| 210 |
705010759 |
Carbon Black, RH Foot Board |
| 215 |
705010759 |
Carbon Black, RH Foot Board |
| 219 |
705013628 |
Pivot Pin |
| 221 |
705013628 |
Pivot Pin |
| 225 |
250000099 |
Allen Plastite Screw #12 |
| 260 |
708003866 |
Seat Stopper |
| 270 |
250000830 |
Socket Head Screw M8 X 25 |
| 271 |
250000997 |
Thin Socket Screw, Scotch Grip, M10 |
| 272 |
250000830 |
Socket Head Screw M8 X 25 |
| 275 |
250200105 |
Stainless Flat Washer, 10 mm |
| 300 |
705008166 |
Spacer Bushing |
| 305 |
705013117 |
Black, LH Slider Clamp |
| 307 |
705013120 |
Black, RH Slider Clamp |
| 310 |
250000719 |
Hex. Cap Screw Full Thread M10 X 20 |
| 320 |
506152582 |
Washer |
| 330 |
244003560 |
SOCKET HEAD SCREW M10 X 35, SCOTCH GRIP - Call your local BRP dealership |
| 340 |
250000830 |
Socket Head Screw M8 X 25 |
| 345 |
705008553 |
Back Plate |
| 370 |
207582054 |
Hex Screw Washer Head M8 X 20 |
| 410 |
705018575 |
Spacer |
| 420 |
250000778 |
Hex. Flange Screw M6 X 60 |
| 430 |
233261466 |
Hex. Flange Elastic Nut M6 |
| 440 |
250200029 |
Washer M6 |
| 480 |
207562054 |
Hex. Flange Screw S.Grip M6 X 20 |
| 490 |
233261466 |
Hex. Flange Elastic Nut M6 |
| 530 |
293830005 |
Rubber Bumper |
| 540 |
705010203 |
Pivot Cap |
| 700 |
705008961 |
LH Fairing Support |
| 705 |
234061670 |
Black, Flat Washer 6 mm |
| 710 |
210261250 |
Hex. Flange Screw M6 X 12 |
| 720 |
250100198 |
Panel Nut M6 X 1.0 |
| 800 |
705008962 |
RH Fairing Support |
| 805 |
234061670 |
Black, Flat Washer 6 mm |
| 810 |
210261250 |
Hex. Flange Screw M6 X 12 |
