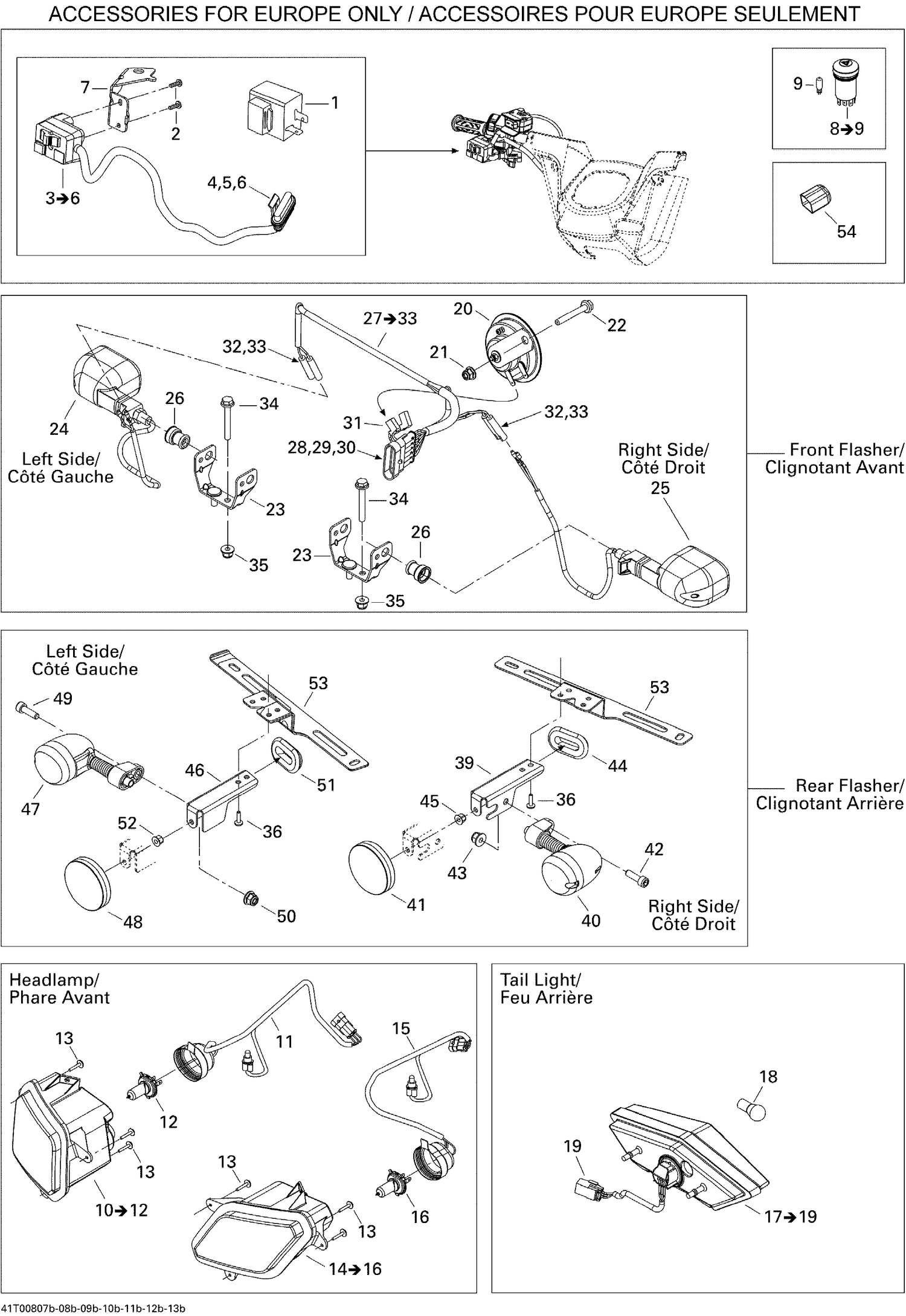

10- Electrical Accessories EURO
Parts (46)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 710000581 | FLASHER UNIT - Call your local BRP dealership |
| 2 | 207141260 | Screw Hex. M4 X 12 |
| 4 | 710000780 | Connector |
| 5 | 278001014 | Female Terminal |
| 6 | 278001013 | Wire Seal |
| 7 | 710000905 | Switch Support |
| 9 | 710000661 | EMERGENCY SWITCH LIGHT BULB - Call your local BRP dealership |
| 11 | 710000923 | Headlamp Harness |
| 12 | 710000871 | Bulb, 12V 35/35W |
| 13 | 250000101 | Plastite Screw Type K-40, M4 X 25 |
| 15 | 710000923 | Headlamp Harness |
| 16 | 710000871 | Bulb, 12V 35/35W |
| 18 | 520000758 | Bulb This part replaces 410504100. |
| 19 | 515175494 | Male Housing, 3 Circuits |
| 20 | 710004791 | Horn This part replaces 710001281. |
| 21 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 22 | 207664544 | Hex. Flange Screw M6 X 45 |
| 23 | 710000978 | SUPPORT *BRACKET - Call your local BRP dealership |
| 24 | 710000546 | Flasher |
| 25 | 710000547 | Flasher |
| 26 | 710001826 | CAP GUARD - Call your local BRP dealership This part replaces 710000765. |
| 27 | 710000814 | Front Fender Harness |
| 28 | 409012900 | Male Terminal |
| 29 | 710000815 | Housing, 6 Circuits |
| 30 | 278001013 | Wire Seal |
| 31 | 409010300 | Female Terminal |
| 32 | 278001007 | Insulated Sheath |
| 33 | 710000421 | Female Terminal |
| 34 | 207664544 | Hex. Flange Screw M6 X 45 |
| 35 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 36 | 390402400 | Pop Rivet 3/16" |
| 39 | 710001329 | BRACKET - Call your local BRP dealership |
| 40 | 710001079 | FLASHING LIGHT ASS'Y - Call your local BRP dealership |
| 41 | 705011221 | Red Reflector This part replaces 705002408. |
| 42 | 205062044 | Socket Head Screw M6 X 20 |
| 43 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 44 | 705003668 | Oblong Grommet This part replaces 705002665. |
| 45 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 46 | 710001330 | BRACKET - Call your local BRP dealership |
| 47 | 710001080 | FLASHING LIGHT ASS'Y - Call your local BRP dealership |
| 48 | 705011221 | Red Reflector This part replaces 705002408. |
| 49 | 205062044 | Socket Head Screw M6 X 20 |
| 50 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 51 | 705003668 | Oblong Grommet This part replaces 705002665. |
| 52 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 53 | 710001241 | BRACKET - Call your local BRP dealership |
