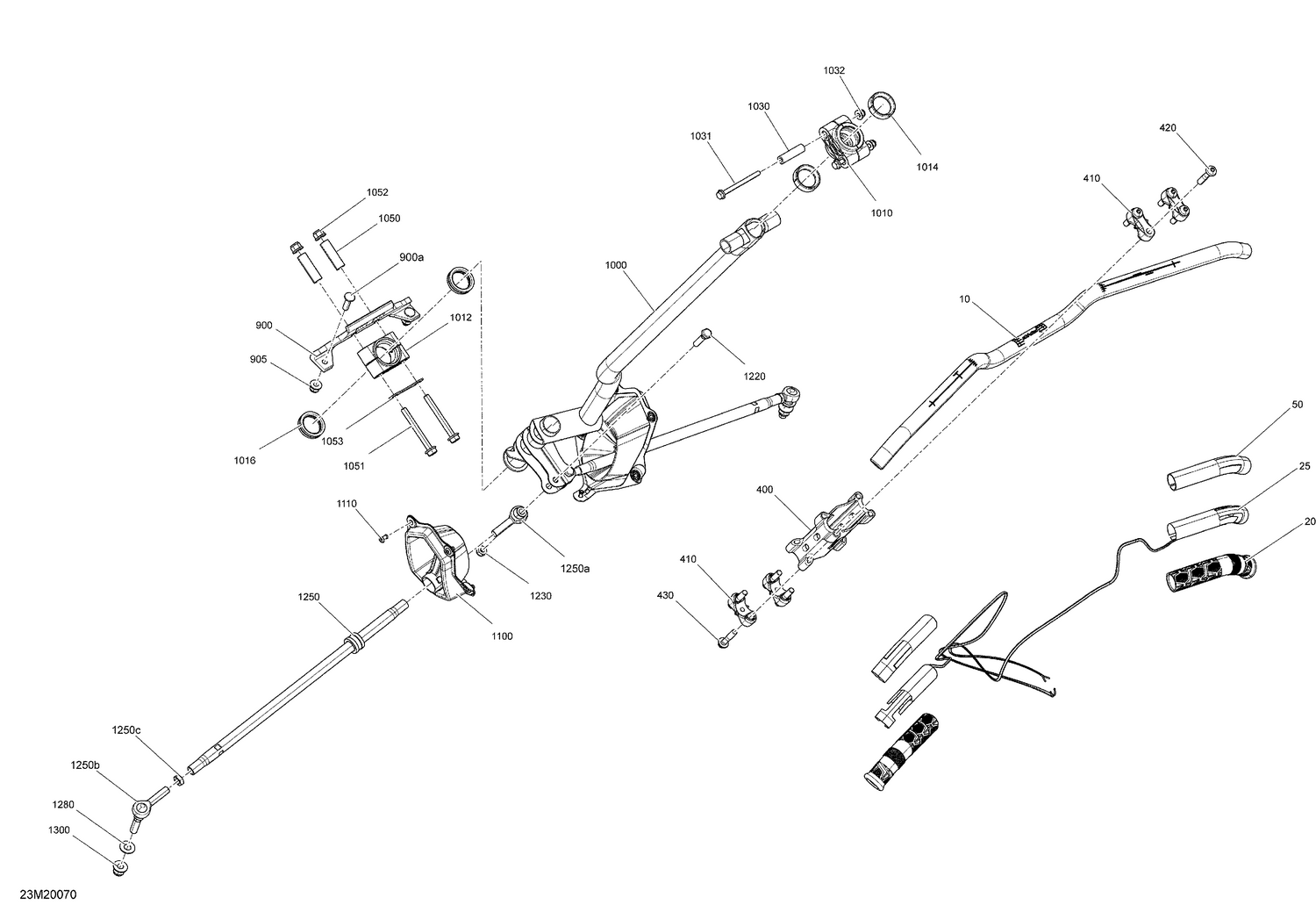

06- Steering - System
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 506152825 | Aluminum Handle Bar |
| 20 | 506152560 | Grip 148mm |
| 25 | 506152856 | Heated Film |
| 30 | 506152857 | RH 32 Watts Heated Film |
| 50 | 506153176 | Thermal Insulation |
| 400 | 860201718 | Riser Kit 145 This part replaces 506152981. |
| 410 | 506152894 | Steering Support |
| 420 | 250000904 | Button Head Torx Screw M8 X 38 |
| 430 | 250000852 | Hex. Flange Screw M8 X 1.25 x 40 |
| 900a | 250300038 | Clinch Stud |
| 905 | 233281416 | Hex. Elastic Flange Nut M8 |
| 1000 | 506153024 | Main Tube |
| 1010 | 506152219 | Upper Half Housing |
| 1012 | 506153048 | Lower Half Housing |
| 1014 | 506152292 | Upper Vibration Ring |
| 1016 | 506152518 | Lower Vibration Ring |
| 1030 | 506152297 | Housing Bushing |
| 1031 | 250001114 | Hex. Flange Screw M6 x 75 |
| 1032 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 1050 | 506152937 | Housing Bushing |
| 1051 | 207687044 | Hex. Flange Screw M8 X 70 |
| 1052 | 233281416 | Hex. Elastic Flange Nut M8 |
| 1053 | 506152938 | Stopper Plate |
| 1100 | 506153294 | Cap This part replaces 506153109. |
| 1110 | 293150008 | Pop Rivet 3/16" |
| 1220 | 207083544 | Hex. Screw M8 X 35 |
| 1230 | 232581414 | Hex. Elastic Stop Nut M8 |
| 1250a | 506152344 | LH Threaded Ball Joint |
| 1250b | 506152684 | RH Threaded Ball Joint |
| 1250c | 732610010 | RH Threaded Hex. Jam Nut M10 |
| 1280 | 506152582 | Washer |
