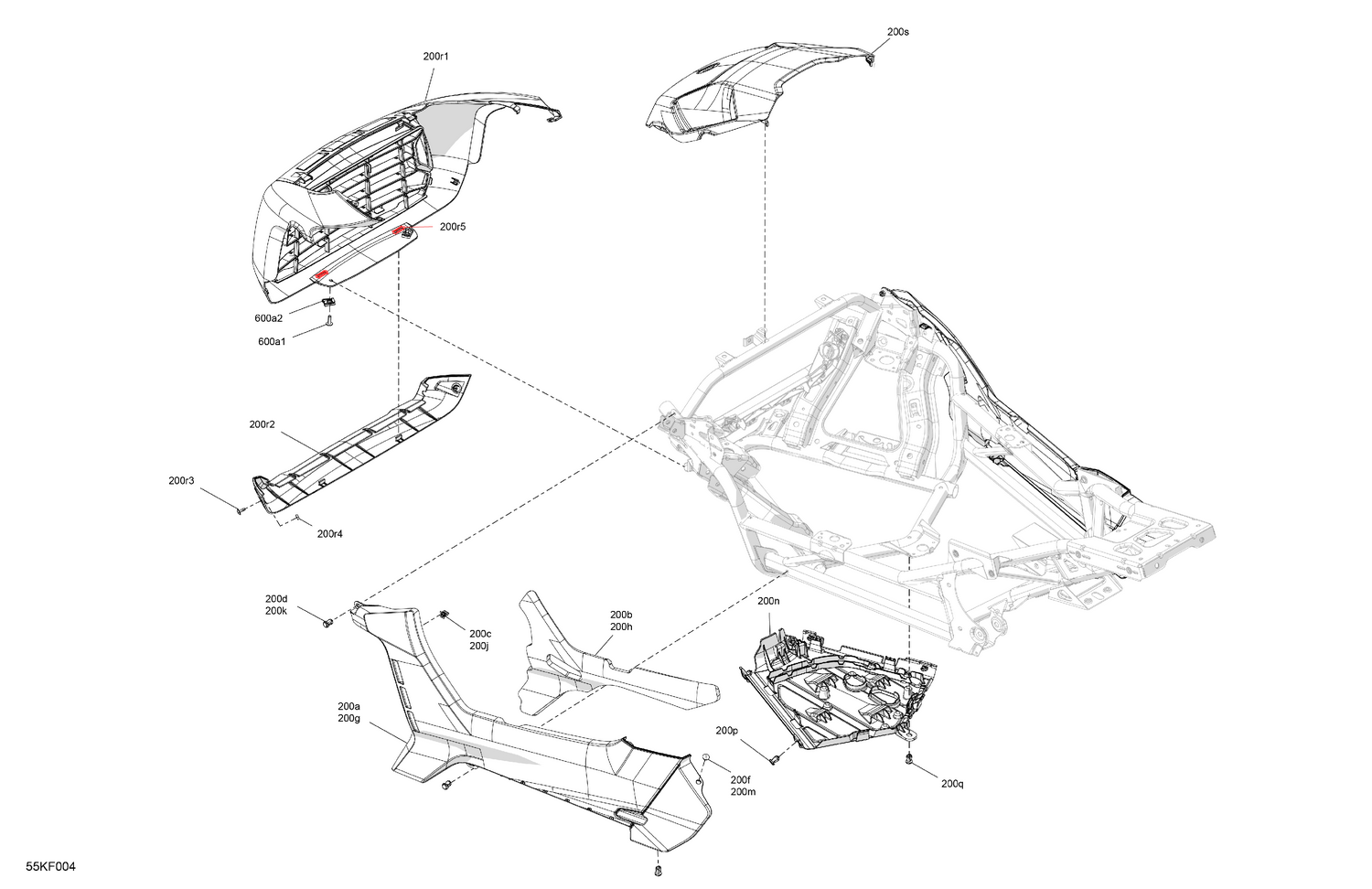

07- Body - Lower Section
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 200a | 219800524 | LH Rocker Panel Kit |
| 200b | 705013940 | LH Rocker Acoustic Foam |
| 200c | 517302785 | Edge Clip |
| 200d | 293150230 | Tuflok Plastic Rivet |
| 200f | 293730060 | Black, Dart 10 mm |
| 200g | 219800525 | RH Rocker Panel Kit |
| 200h | 705013941 | Acoustic Foam |
| 200j | 517302785 | Edge Clip |
| 200k | 293150230 | Tuflok Plastic Rivet |
| 200m | 293730060 | Black, Dart 10 mm |
| 200n | 705012364 | Skid Plate |
| 200p | 293150230 | Tuflok Plastic Rivet |
| 200q | 293150230 | Tuflok Plastic Rivet |
| 200r1 | 705013345 | Deep Black, Front Fascia |
| 200r2 | 705016804 | Lower Bumper Trim |
| 200r3 | 250001059 | Torx Truss Head Screw W Nylon M5X14 |
| 200r4 | 232852411 | Square Nut M5 X 0.8 |
| 200r5 | 705004838 | Flat Clip |
| 200s | 705011459 | Deep Black, Hood |
| 600a1 | 250000722 | Torx Screw M6 X 20 |
