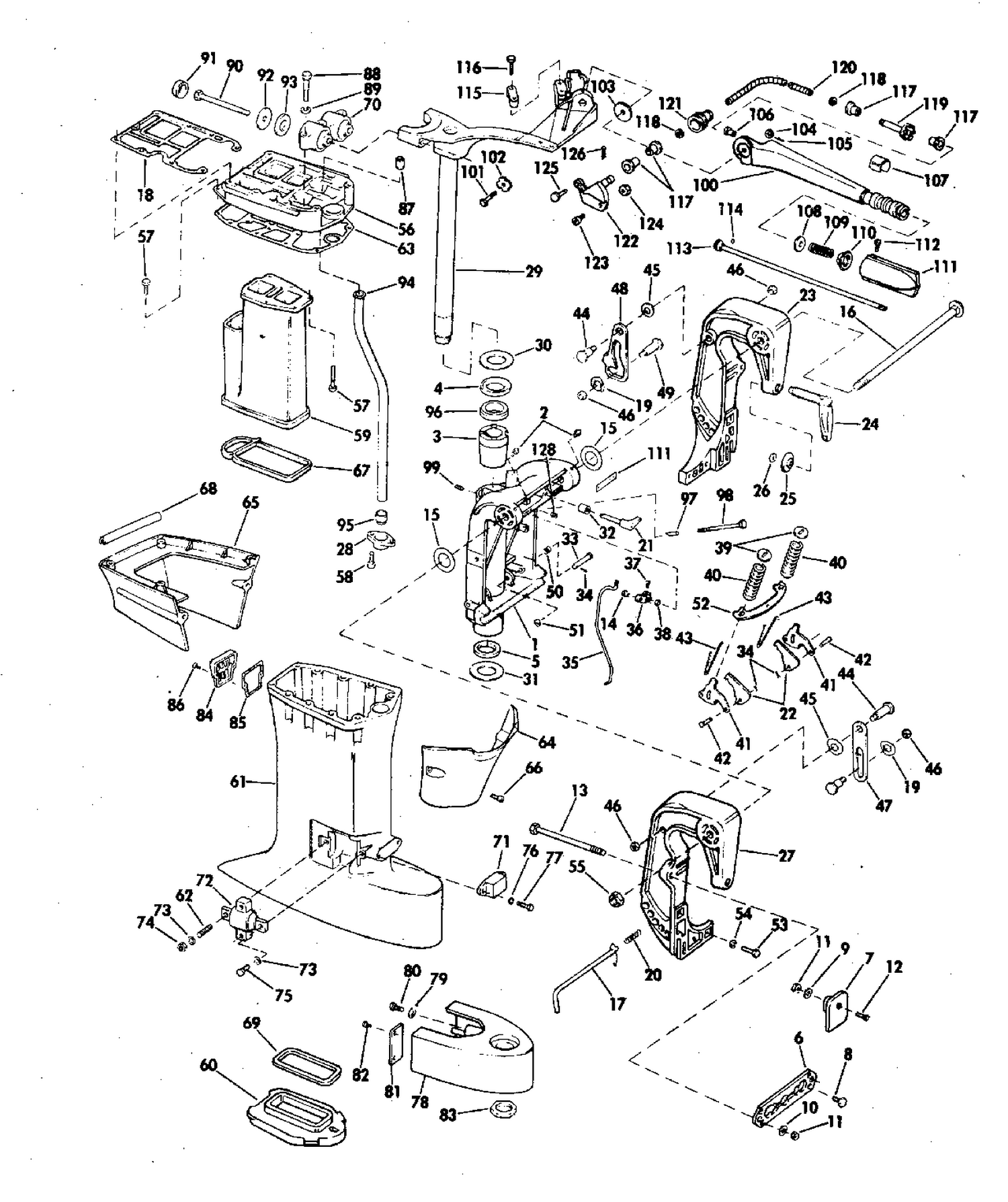

| Ref | Part Number | Description |
|---|
| 1 |
0317528 |
SWIVEL BRACKET, Std |
| 1 |
0317529 |
SWIVEL BRACKET, Long |
| 3 |
0317524 |
BUSHING, Upper |
| 4 |
0315795 |
SEAL, Upper |
| 5 |
0315408 |
SEAL, Lower |
| 14 |
0313329 |
LOCKWASHER, Carburetor link |
| 15 |
0315773 |
THRUST WASHER, Stern brkt |
| 16 |
0315634 |
BOLT, Tilting |
| 17 |
0436212 |
THRUST ROD ASSEMBLY This part replaces 0383974. |
| 19 |
0315085 |
O-RING, Driveshaft to crankcase |
| 20 |
0307068 |
SPRING & Thrust rod |
| 21 |
0384035 |
SHAFT & LEVER ASSY |
| 22 |
0333871 |
LEVER, Locking This part replaces 0315963. |
| 23 |
0383959 |
STERN BRACKET, Port |
| 24 |
0388053 |
CLAMP SCR AND HAND ASSY This part replaces 0384845. |
| 27 |
0383958 |
STERN BRACKET, Stbd. (inc. item 24) |
| 28 |
0315860 |
COVER WATER TUBE |
| 29 |
0385194 |
ARM & SHAFT ASSY, Std |
| 29 |
0385195 |
ARM & SHAFT ASSY, Long |
| 30 |
0315510 |
THRUST WASHER, Upper |
| 31 |
0316072 |
THRUST WASHER, Lower |
| 32 |
0315636 |
BUSHING |
| 33 |
0315961 |
PIN, Link to bracett |
| 34 |
0302858 |
GOUPILLE, fendue - Tringlerie de verrouillage de marche arrière |
| 35 |
0315637 |
ROD, Reverse lock |
| 36 |
0378984 |
ARM & SCREW |
| 37 |
0308893 |
SCREW |
| 39 |
0314007 |
CUP, Reverse lock spring |
| 40 |
0313817 |
RESSORT, verrouillage de marche arrière |
| 41 |
0315964 |
LINK, Reverse lock |
| 42 |
0315962 |
GOUPILLE, tringlerie vers levier |
| 43 |
0315965 |
DISPOSITIF DE RETENUE, ressort |
| 44 |
0313848 |
SCREW, Stop link |
| 45 |
0314031 |
SPRING WASHER, Stop link |
| 47 |
0315960 |
STOP LINK, Starboard |
| 48 |
0315959 |
STOP LINK, Port |
| 49 |
0313849 |
SCREW, Stop lin to stern brkt. |
| 50 |
0315967 |
SPIRNG, Link |
| 51 |
0552499 |
WASHER, Link pin |
| 52 |
0321234 |
PLAQUE, verrouillage de marche arrière This part replaces 0315966. |
| 53 |
0552940 |
SCREW, Stern bracket This part replaces 0313699. |
| 55 |
0315511 |
NUT, Bracket to mount support |
| 56 |
0315450 |
ADAPTER, Exhaust housing |
| 57 |
0309705 |
SCREW |
| 59 |
0315954 |
EXH HOUSING, Inner upper |
| 60 |
0315957 |
EXH HOUSING, Inner lower, std |
| 60 |
0315958 |
EXH HOUSING, Inner lower, long |
| 61 |
0317519 |
EXH HOUSING, Outer, std |
| 61 |
0317520 |
EXH HOUSING, Outer, long |
| 62 |
0301185 |
STUD |
| 63 |
0351019 |
GASKET, Adapter to housing This part replaces 0315861. |
| 64 |
0350796 |
COVER, Exhaust housing, front This part replaces 0315445. |
| 65 |
0340785 |
COVER, Exh. hsg., rear This part replaces 0315446. |
| 67 |
0315955 |
SEAL, Inner to outer housing |
| 68 |
0316065 |
SEAL, Exhaust housing, rear |
| 69 |
0315956 |
SEAL, Lower to outer housing |
| 70 |
0436470 |
MOUNT, Upper This part replaces 0383960. |
| 71 |
0383961 |
MOUNT, Thrust |
| 72 |
0388411 |
RUBBER MOUNT, Lower This part replaces 0384071. |
| 75 |
0552940 |
SCREW, Stern bracket This part replaces 0313699. |
| 77 |
0329894 |
SCREW This part replaces 0302510. |
| 78 |
0316054 |
MOUNT BRACKET |
| 80 |
0316109 |
VIS, levier vers support |
| 81 |
0316055 |
COVER, Mount bracket |
| 82 |
0316233 |
SCREW, Cover to bracket |
| 83 |
0315509 |
NUT, Bracket to shaft |
| 84 |
0315864 |
COVER, Exhaust relief |
| 85 |
0329826 |
COVER, Relief cover This part replaces 0315865. |
| 86 |
0305143 |
SCREW, By-pass cover |
| 87 |
0317559 |
PLUG, Adapter |
| 88 |
0306423 |
BOLT |
| 90 |
0306870 |
SCREW, Upper mount |
| 91 |
0313581 |
BUMBER, Mount screw |
| 92 |
0321232 |
RETAINER WASHER This part replaces 0313546. |
| 93 |
0313580 |
WASHER |
| 94 |
0322309 |
WASHER TUBE, Std. This part replaces 0315862. |
| 94 |
0340216 |
WATER TUBE This part replaces 0315863. |
| 95 |
0315859 |
GROMMET, Tube to adapter |
| 96 |
0317415 |
THRUST RING, Friction |
| 97 |
0317418 |
PIN, Steer. friction |
| 98 |
0317525 |
SCREW, Steer. friction |
| 99 |
0317416 |
SCREW, Thrust ring |
| 100 |
0318216 |
HANDLE This part replaces 0305409. |
| 101 |
0302721 |
SCREW |
| 102 |
0302631 |
SPRING WASHER |
| 103 |
0302703 |
THRUST WASHER, Handle |
| 104 |
0302803 |
NUT |
| 105 |
0302804 |
COTTER IN |
| 106 |
0325074 |
BUSHING This part replaces 0305100. |
| 107 |
0305712 |
PLATE |
| 108 |
0303252 |
WAHSER, Grip spring |
| 109 |
0301656 |
SPRING |
| 110 |
0303282 |
BLOCK |
| 111 |
0386266 |
GRIP & PLATE This part replaces 0381489. |
| 113 |
0377944 |
GEAR & SHAFT, Long |
| 114 |
0302709 |
GROOVE PIN |
| 115 |
0317407 |
CLAMP, Casing to bracker |
| 116 |
0303459 |
ECREW,Exhaust cover,1-1/2"long |
| 117 |
0315081 |
BAGUE, arbre de commande de sens de marche vers bloc-cylindres |
| 118 |
0554516 |
RET. RING, Shaft to lever |
| 119 |
0385218 |
GEAR & SHAFT, Short |
| 120 |
0317408 |
CASING, Throttle cable |
| 121 |
0317409 |
GROMMET, Casing |
| 122 |
0385190 |
LEVER & CABLE ASSY |
| 123 |
0317347 |
FOLLOWER, Cam interlock |
| 127 |
0329706 |
TRANSFER, Reverse lock This part replaces 0317590. |
| 0384189 |
0394219 |
KIT DE MONTAGE DE TABLEAU ARRIÈRE This part replaces 0384189. |
