Home / BRP / EVINRUDE / 1986 / 10- Electrical System 3

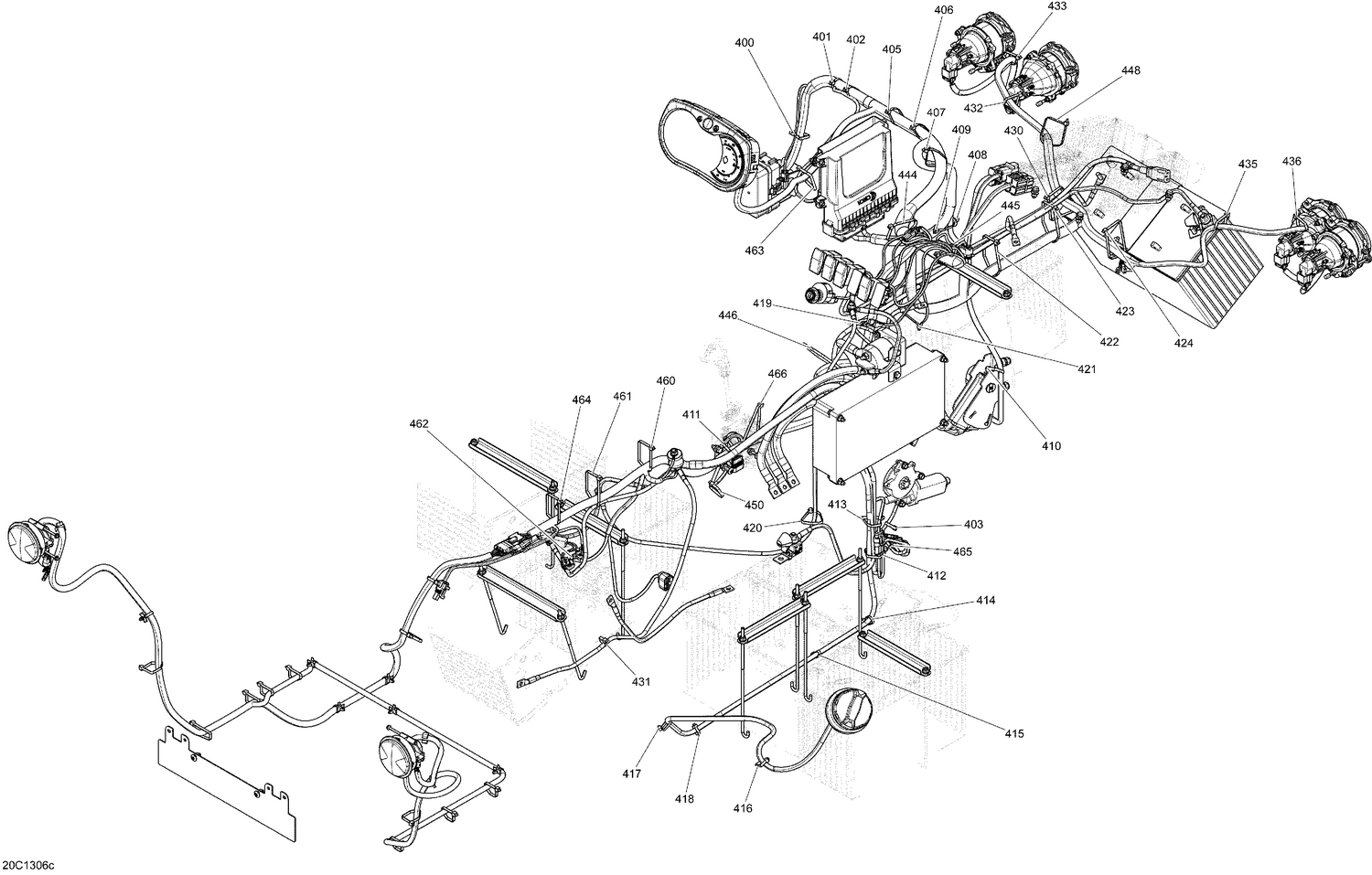

10- Electrical System 3

10- Electrical System 3

Parts (41)

RefPart NumberDescription
400 293750008 Tie Wrap 368 mm
401 293750008 Tie Wrap 368 mm
402 293750008 Tie Wrap 368 mm
403 293750008 Tie Wrap 368 mm
405 293750008 Tie Wrap 368 mm
406 293750008 Tie Wrap 368 mm
407 293750008 Tie Wrap 368 mm
408 293730040 Mount Dart This part replaces 293730018.
409 293750008 Tie Wrap 368 mm
410 414115200 Tie-Rap 180 mm
411 293750008 Tie Wrap 368 mm
412 293750008 Tie Wrap 368 mm
413 293750008 Tie Wrap 368 mm
414 414115200 Tie-Rap 180 mm
415 414115200 Tie-Rap 180 mm
416 414115200 Tie-Rap 180 mm
417 414115200 Tie-Rap 180 mm
418 414115200 Tie-Rap 180 mm
419 293750008 Tie Wrap 368 mm
420 293750008 Tie Wrap 368 mm
421 293750008 Tie Wrap 368 mm
422 293750008 Tie Wrap 368 mm
423 293750008 Tie Wrap 368 mm
424 293750008 Tie Wrap 368 mm
430 293750008 Tie Wrap 368 mm
431 414115200 Tie-Rap 180 mm
432 414115200 Tie-Rap 180 mm
433 414115200 Tie-Rap 180 mm
435 414115200 Tie-Rap 180 mm
436 414115200 Tie-Rap 180 mm
444 293750008 Tie Wrap 368 mm
445 293750008 Tie Wrap 368 mm
446 293750008 Tie Wrap 368 mm
448 293750008 Tie Wrap 368 mm
450 293750008 Tie Wrap 368 mm
460 293750008 Tie Wrap 368 mm
461 293750008 Tie Wrap 368 mm
462 293750008 Tie Wrap 368 mm
463 293750008 Tie Wrap 368 mm
464 414115200 Tie-Rap 180 mm
465 414115200 Tie-Rap 180 mm
