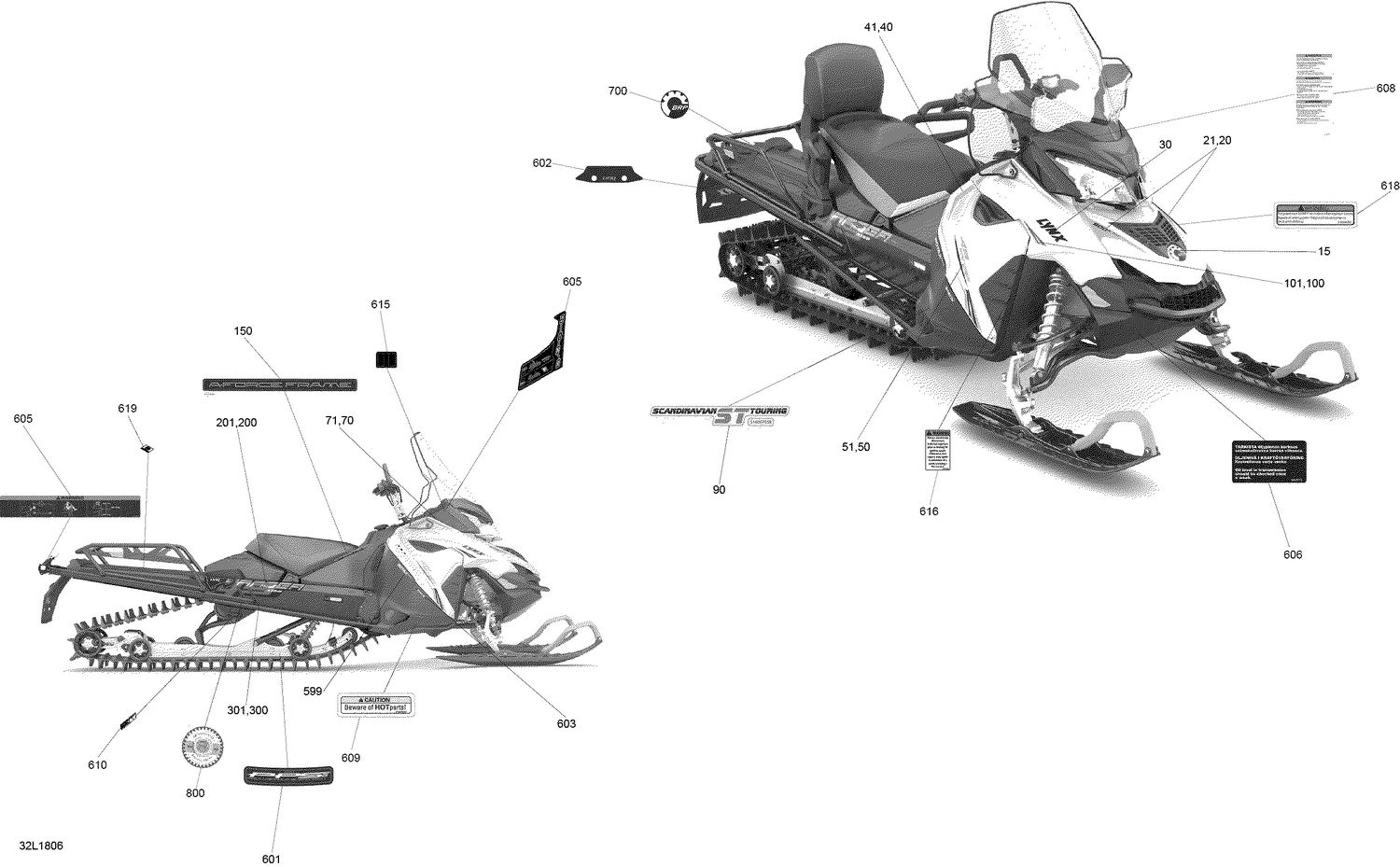

09- Decals 49 Ranger - 900 ACE
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 15 | 516008739 | Logo 68mm "BRP" This part replaces 516006888. |
| 20 | 516007109 | LH Hood Decal |
| 21 | 516007110 | RH Hood Decal |
| 30 | 516006334 | Upper Sidepanel Decal |
| 40 | 516007097 | LH Sidepanel Decal |
| 41 | 516007098 | RH Sidepanel Decal |
| 50 | 516006727 | LH Sidepanel Decal |
| 51 | 516006728 | RH Sidepanel Decal |
| 70 | 516007095 | LH Upper Sidepanel |
| 71 | 516007096 | RH Upper Sidepanel |
| 90 | 516007558 | Upper Sidepanel |
| 100 | 516006876 | LH Upper Sidepanel |
| 101 | 516006877 | RH Upper Sidepanel |
| 150 | 516007099 | Frame Decal |
| 200 | 516007100 | LH Tunnel Decal |
| 201 | 516007101 | RH Tunnel Decal |
| 300 | 516007103 | LH Tunnel Decal |
| 301 | 516007104 | RH Tunnel Decal |
| 599 | 516006331 | Rotax Power Decal |
| 601 | 516006805 | Black, PPS Decal |
| 602 | 516006485 | Q-link Decal |
| 603 | 516007534 | Platform Decal |
| 605 | 516008383 | Warning Label |
| 606 | 5447012 | Oil Checking Label |
| 607 | 516003919 | Warning Decal |
| 608 | 516004607 | Warning label |
| 609 | 516006903 | Hot Parts Decal |
| 610 | 516007589 | Track Tension Decal |
| 615 | 516006361 | Consol Buttonhole Cover |
| 616 | 516005583 | WARNING DECAL, INJECTORS - Call your local BRP dealership |
| 618 | 516006900 | Security Label, Belt Guard |
| 619 | 516007584 | Warning Decal |
| 700 | 516008738 | Logo 48mm "BRP" This part replaces 516006887. |
