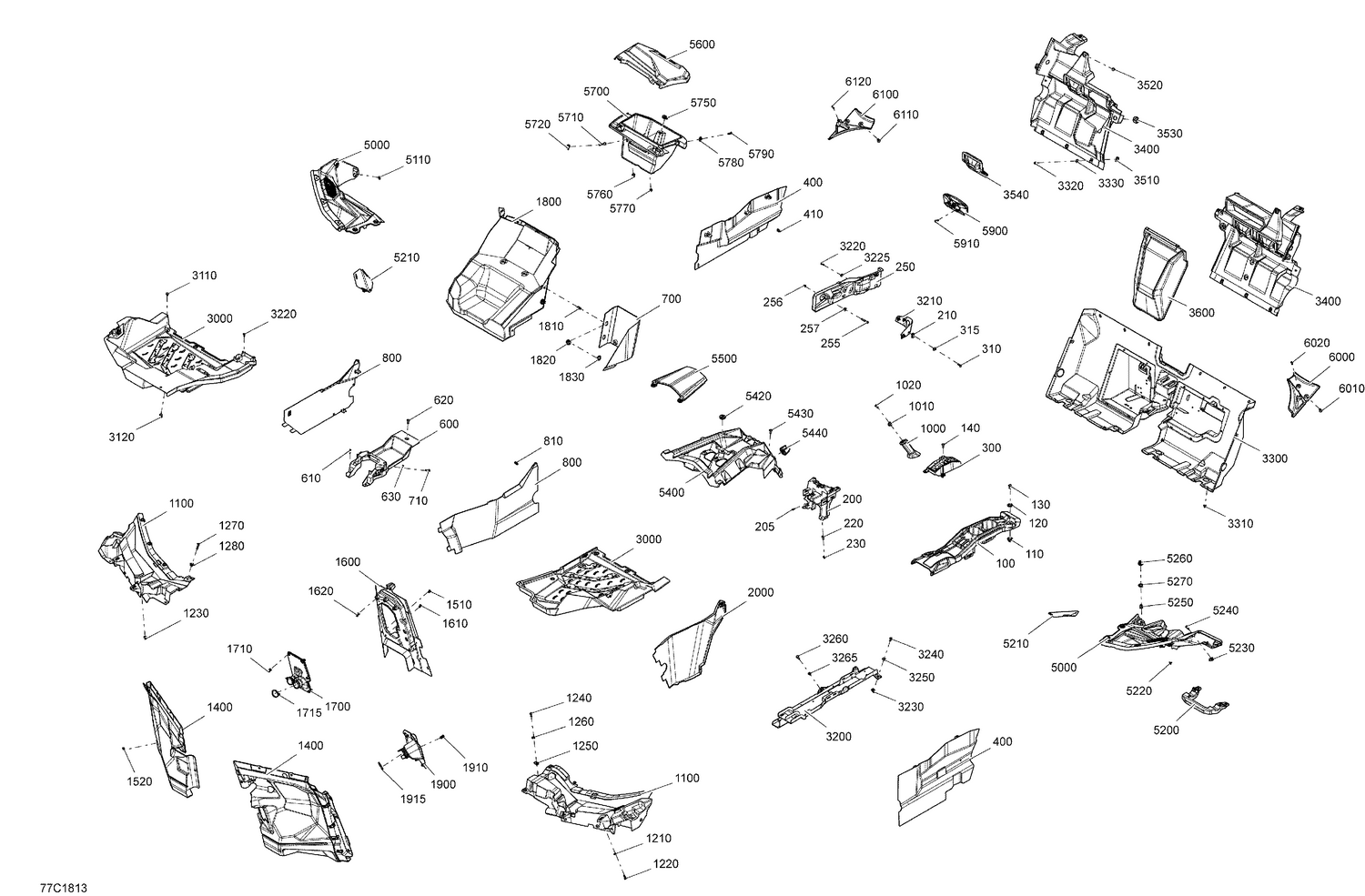

09- Cab Interior - All Models
Parts (122)
| Ref | Part Number | Description |
|---|---|---|
| 110 | 707900133 | Insert |
| 120 | 503189273 | Washer |
| 130 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 140 | 250000722 | Torx Screw M6 X 20 |
| 200 | 707900459 | Front Central Console Support |
| 205 | 250000720 | Torx Screw K50 X 16 |
| 210 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 220 | 250000722 | Torx Screw M6 X 20 |
| 230 | 250100242 | Threaded Insert M6 X 1.0 This part replaces 293450274. |
| 250 | 707900488 | Shifter Gate Support |
| 255 | 250000748 | Torx Screw M6 X 45 |
| 256 | 233261466 | Hex. Flange Elastic Nut M6 |
| 257 | 234062670 | Stainless Steel Flat Washer |
| 300 | 707900644 | Lever Indicator |
| 310 | 250000722 | Torx Screw M6 X 20 |
| 315 | 234062670 | Stainless Steel Flat Washer |
| 400 | 707900396 | LH Lateral Dash Panel |
| 400 | 707900397 | RH Lateral Dash Panel |
| 410 | 705010721 | Clip |
| 600 | 707900460 | Front Top Console This part replaces 707900460. |
| 610 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 620 | 250000722 | Torx Screw M6 X 20 |
| 630 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 700 | 707900473 | Cover Central Console |
| 710 | 250000722 | Torx Screw M6 X 20 |
| 800 | 707901087 | LH Console Panel This part replaces 707900398. |
| 800 | 707901088 | RH Console Panel This part replaces 707900399. |
| 810 | 705010721 | Clip |
| 1000 | 707900011 | Passenger Handle |
| 1010 | 707900048 | Connector Tube |
| 1020 | 250000722 | Torx Screw M6 X 20 |
| 1100 | 707900337 | LH Front Upper Deflector |
| 1100 | 707900338 | RH Front Upper Deflector |
| 1210 | 234062670 | Stainless Steel Flat Washer |
| 1220 | 250000722 | Torx Screw M6 X 20 |
| 1230 | 293150104 | Pop Rivet 3/16" |
| 1240 | 250000722 | Torx Screw M6 X 20 |
| 1250 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 1260 | 234062670 | Stainless Steel Flat Washer |
| 1270 | 250000842 | Stainless, Torx Screw M6 X 30 |
| 1280 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 1400 | 707900931 | RH Front Bulkhead This part replaces 707900342. |
| 1400 | 707901349 | Front Seperation Panel This part replaces 707900341. |
| 1510 | 293150104 | Pop Rivet 3/16" |
| 1520 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 1600 | 707900407 | Front Bulkhead Panel |
| 1610 | 293150104 | Pop Rivet 3/16" |
| 1620 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 1700 | 707900474 | Rubber Deflector |
| 1710 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 1715 | 414115200 | Tie-Rap 180 mm |
| 1800 | 707900410 | RH Lower Dash Panel |
| 1810 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 1820 | 707900133 | Insert |
| 1830 | 503189273 | Washer |
| 1900 | 707900754 | Steering Column Cover This part replaces 707900427. |
| 1910 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 1915 | 293750008 | Tie Wrap 368 mm |
| 2000 | 707900477 | Side Panel Cover |
| 3000 | 707900339 | LH Front Floor |
| 3000 | 707900340 | RH Front Floor |
| 3110 | 293150104 | Pop Rivet 3/16" |
| 3120 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 3200 | 707900710 | Central Support Hose This part replaces 707900428. |
| 3210 | 707900478 | Cable Support |
| 3220 | 250000720 | Torx Screw K50 X 16 |
| 3225 | 250200025 | Washer M5 |
| 3230 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 3240 | 250000722 | Torx Screw M6 X 20 |
| 3250 | 234062670 | Stainless Steel Flat Washer |
| 3260 | 207562054 | Hex. Flange Screw S.Grip M6 X 20 |
| 3265 | 250100242 | Threaded Insert M6 X 1.0 This part replaces 293450274. |
| 3300 | 707900929 | Rear Lower Seperation Panel This part replaces 707900345. |
| 3310 | 293150104 | Pop Rivet 3/16" |
| 3320 | 250000722 | Torx Screw M6 X 20 |
| 3330 | 234062670 | Stainless Steel Flat Washer |
| 3400 | 703501073 | LH Upper Bulkhead Kit This part replaces 707900632. |
| 3400 | 707900935 | RH Upper Bulkhead Kit This part replaces 707900441. |
| 3510 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 3520 | 293150104 | Pop Rivet 3/16" |
| 3530 | 705010718 | Grommet |
| 3540 | 707900486 | Bulkhead Cover |
| 3540 | 707900652 | Bulkhead Cover |
| 3600 | 707900442 | Central Upper Rear Bulkhead |
| 5000 | 707900698 | RH Dashboard This part replaces 707900348. |
| 5110 | 234062670 | Stainless Steel Flat Washer |
| 5200 | 707900479 | Dash Support |
| 5210 | 707900465 | LH Speaker Cover |
| 5210 | 707900590 | RH Speaker Cover |
| 5220 | 517302785 | Edge Clip |
| 5230 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 5240 | 250000722 | Torx Screw M6 X 20 |
| 5250 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 5260 | 707900133 | Insert |
| 5270 | 503189273 | Washer |
| 5400 | 703501035 | Kit Dashboard Ctrl This part replaces 707900682. |
| 5420 | 517303756 | Grommet |
| 5430 | 250000722 | Torx Screw M6 X 20 |
| 5440 | 707900598 | Key Protector |
| 5500 | 707900400 | Dash Cover |
| 5600 | 715004067 | Glove Box Cover Kit |
| 5700 | 707900350 | Glove Box |
| 5710 | 250000868 | Torx Truss M6 X 50 |
| 5720 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 5750 | 517303756 | Grommet |
| 5760 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 5770 | 293830005 | Rubber Bumper |
| 5780 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 5790 | 250000722 | Torx Screw M6 X 20 |
| 5900 | 707900502 | Central Mirror |
| 5910 | 207661654 | Hex. Flange Screw M6 X 16 |
| 6000 | 707900507 | Warning Label Plate |
| 6010 | 293150103 | Pop Rivet 3/16" |
| 6020 | 250000720 | Torx Screw K50 X 16 |
| 6100 | 707900574 | Warning Label Plate |
| 6110 | 293150103 | Pop Rivet 3/16" |
| 6120 | 250000720 | Torx Screw K50 X 16 |
| 6200 | 707900615 | LH Shoulder Pad |
| 6200 | 707900616 | RH Shoulder Pad |
| 6260 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 6270 | 250000722 | Torx Screw M6 X 20 |
| 6280 | 234062670 | Stainless Steel Flat Washer |
