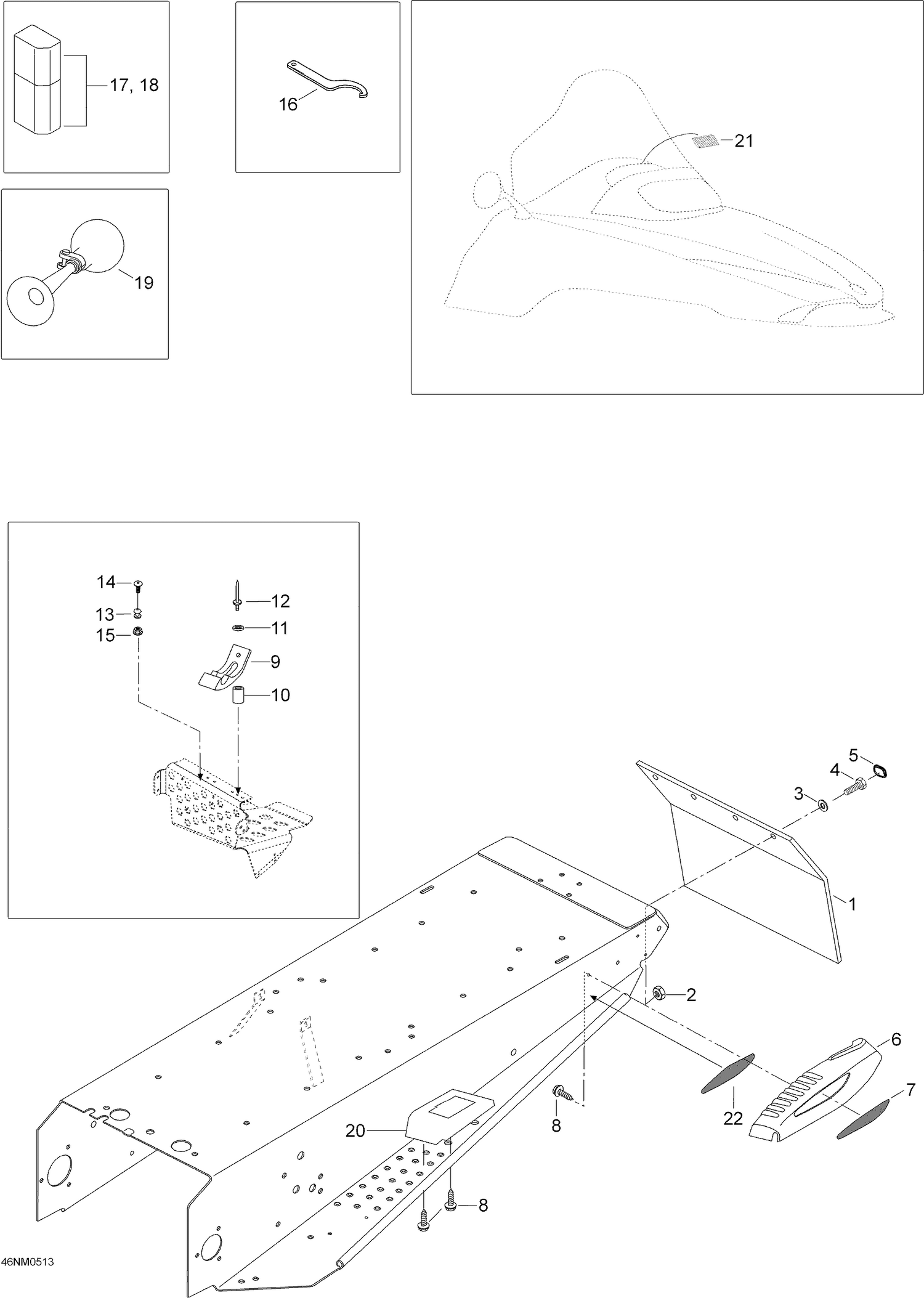

09- Utilities
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5246859 | Snow quard |
| 2 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 3 | 234062410 | Flat Washer 6 mm This part replaces 20009. |
| 4 | 40078 | SCREW M6 x 22 DIN933m8.8Zne(1=10pcs - Call your local BRP dealership |
| 5 | 415073300 | Cap |
| 6 | 605251970 | R.H. Molding |
| 6 | 605251971 | L.H. Molding |
| 7 | 516000241 | R.H. Rear reflector |
| 7 | 516000242 | L.H. Rear reflector |
| 8 | 40870 | HEX. TAPING SCREW - Call your local BRP dealership |
| 9 | 531955 | Latch |
| 10 | 543417 | Sleeve |
| 11 | 543392 | Washer |
| 12 | 36072 | Rivet |
| 13 | 605449087 | Counter roll |
| 14 | 40168 | Screw M4 x 25 |
| 15 | 33008 | Elastic stop nut M4 |
| 16 | 529000035 | Wrench adjuster This part replaces 529032900. |
| 17 | 605450112 | Tool set |
| 18 | 708200043 | TOOLS BOX - Call your local BRP dealership This part replaces 572036310. |
| 19 | 549011291 | Horn This part replaces 21003. |
| 20 | 572088700 | R.H. Foot Rest |
| 20 | 572088800 | L.H. Foot Rest |
| 21 | 21060 | Reflector, bright |
