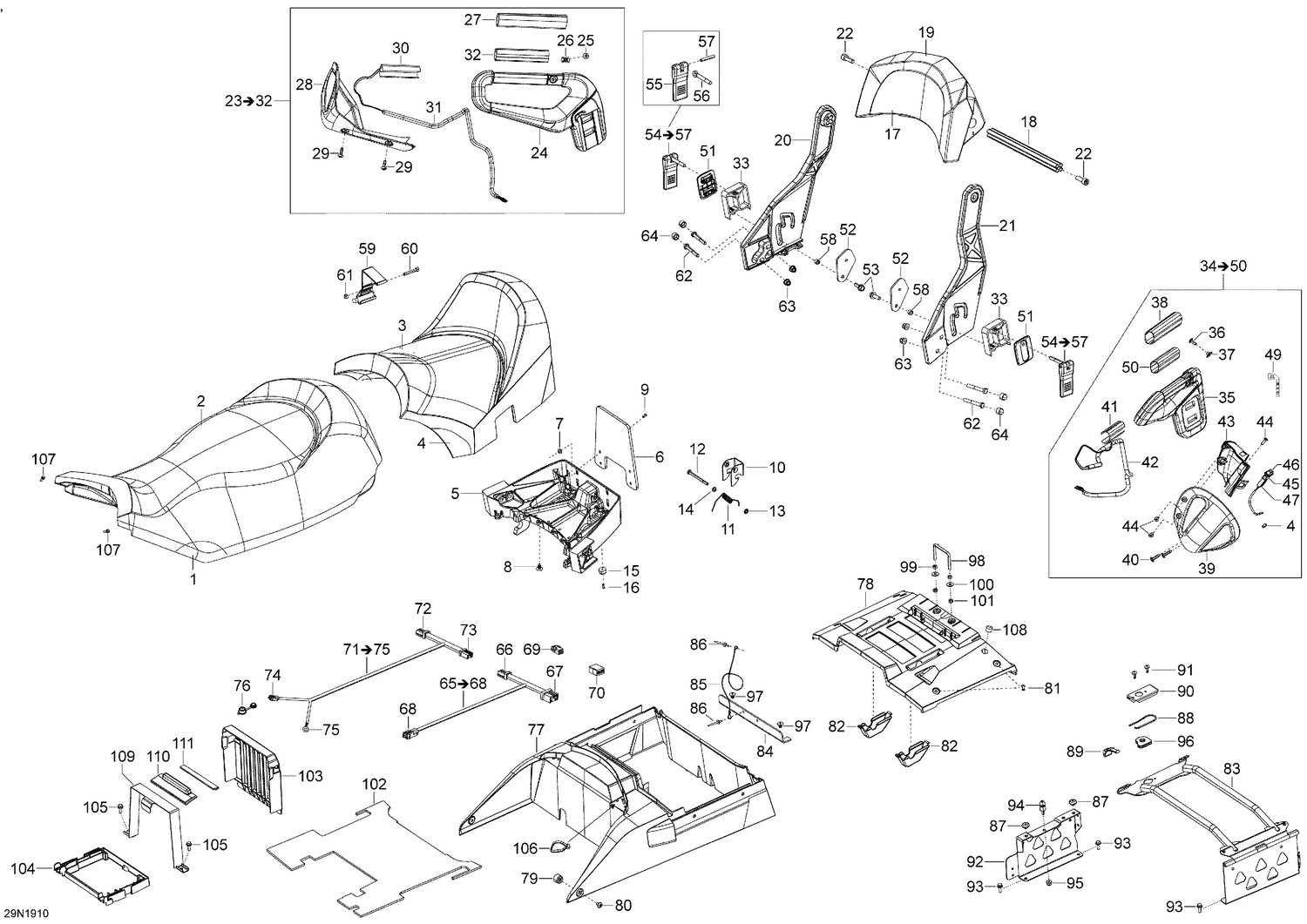

09- Seat - 1200 4-TEC
Parts (92)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 510005256 | Cover rear |
| 4 | 510006094 | Rear Seat Foam |
| 5 | 510004816 | Seat Base |
| 6 | 510005330 | Backrest Plate |
| 7 | 234062410 | Flat Washer 6 mm |
| 8 | 414644300 | Black, Dart |
| 9 | 293150067 | Rivet |
| 10 | 708000144 | Latch, Black |
| 11 | 708000369 | Spring |
| 12 | 207068044 | Hex. Screw M6 X 80 |
| 13 | 732610072 | Push Nut |
| 14 | 234061410 | Flat Washer 6 mm |
| 15 | 510006005 | Stopper Rubber |
| 16 | 293150015 | Pop Rivet 1/8” |
| 19 | 510006205 | Backrest Foam |
| 20 | 510005259 | Backrest Cover |
| 21 | 510005420 | RH Arm |
| 22 | 510005419 | LH Arm |
| 23 | 250000553 | Forming Screw M10 x 25 |
| 25 | 250000721 | Torx Truss Screw M6 X 16 |
| 26 | 293100003 | Nut Welded, M6 |
| 27 | 510004449 | Handle Grip |
| 28 | 510004415 | RH Deflector |
| 29 | 250000961 | Screw 25MM |
| 30 | 515176393 | Heater |
| 31 | 219704426 | Was 515175506 Tubing |
| 32 | 510005863 | Handle Reinforcement |
| 33 | 510004939 | Adapter |
| 36 | 250000721 | Torx Truss Screw M6 X 16 |
| 37 | 293100003 | Nut Welded, M6 |
| 38 | 510004449 | Handle Grip |
| 39 | 510004416 | LH Deflector |
| 40 | 250000961 | Screw 25MM |
| 41 | 515176393 | Heater |
| 42 | 219704426 | Was 515175506 Tubing |
| 43 | 510004566 | Switch Housing |
| 44 | 250000720 | Torx Screw K50 X 16 |
| 45 | 510004413 | Rocker Switch |
| 46 | 510004414 | Switch Protector |
| 47 | 515176241 | LH HANDLE HARNESS - Call your local BRP dealership |
| 48 | 414115200 | Tie-Rap 180 mm |
| 49 | 516002835 | HANDLE HEATER DECAL - Call your local BRP dealership |
| 50 | 510005863 | Handle Reinforcement |
| 51 | 510006602 | Passenger Handle Trim |
| 52 | 510004990 | Counter Plate |
| 53 | 250000376 | Hex Forming Screw DIN.7500D |
| 55 | 5243419 | Lock |
| 56 | 510004993 | Screw |
| 57 | 414821400 | Pin |
| 58 | 510005507 | Sleeve |
| 59 | 510005139 | Security Lock |
| 60 | 205065044 | SOCKET HEAD SCREW M6 X 50 - Call your local BRP dealership |
| 61 | 232561414 | Elastic Stop Nut M6 |
| 62 | 207686044 | Hex. Flange Screw M8 x 60 |
| 63 | 233281414 | Hex. Flange Elastic Nut M8 |
| 64 | 28056 | Cover |
| 65 | 515179606 | Seat Wiring Harness This part replaces 515177209. |
| 69 | 515175494 | Male Housing, 3 Circuits |
| 70 | 515175817 | Male Terminal Housing, 8 Circuits |
| 71 | 515179607 | Seat Wiring Harness This part replaces 515177210. |
| 76 | 572103300 | Cap |
| 77 | 510006243 | Storage Box |
| 78 | 510006244 | Storage Box Cover |
| 79 | 510005147 | Bushing |
| 80 | 250000675 | Torx Truss Screw M6 x 12 |
| 81 | 293150104 | Pop Rivet 3/16" |
| 82 | 510004999 | Cover |
| 83 | 510005714 | Lock tube |
| 84 | 510005156 | Cable Support Plate |
| 85 | 293750070 | Seat Retainer Cable |
| 86 | 293150163 | Rivet Hucklok |
| 87 | 605452114 | Plug |
| 88 | 269700017 | Latch Spring |
| 89 | 510005072 | Puller |
| 90 | 510005698 | Lock Pin Cover |
| 91 | 250000676 | Forming Screw M5 x 16 |
| 92 | 510005845 | Locking Plate |
| 93 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 94 | 605452035 | LOCK PIN - Call your local BRP dealership |
| 95 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 96 | 510005044 | Lock Pin Guide |
| 97 | 250000675 | Torx Truss Screw M6 x 12 |
| 98 | 510004876 | FASTENER PIN - Call your local BRP dealership |
| 99 | 250000135 | Hex. Nut M6 |
| 100 | 20117 | Washer |
| 101 | 232561414 | Elastic Stop Nut M6 |
| 102 | 510005043 | Foam |
| 103 | 510005079 | Battery Cover |
| 104 | 515176804 | Battery Support |
| 105 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 106 | 605627000 | Tie-Rap |
| 107 | 250000676 | Forming Screw M5 x 16 |
