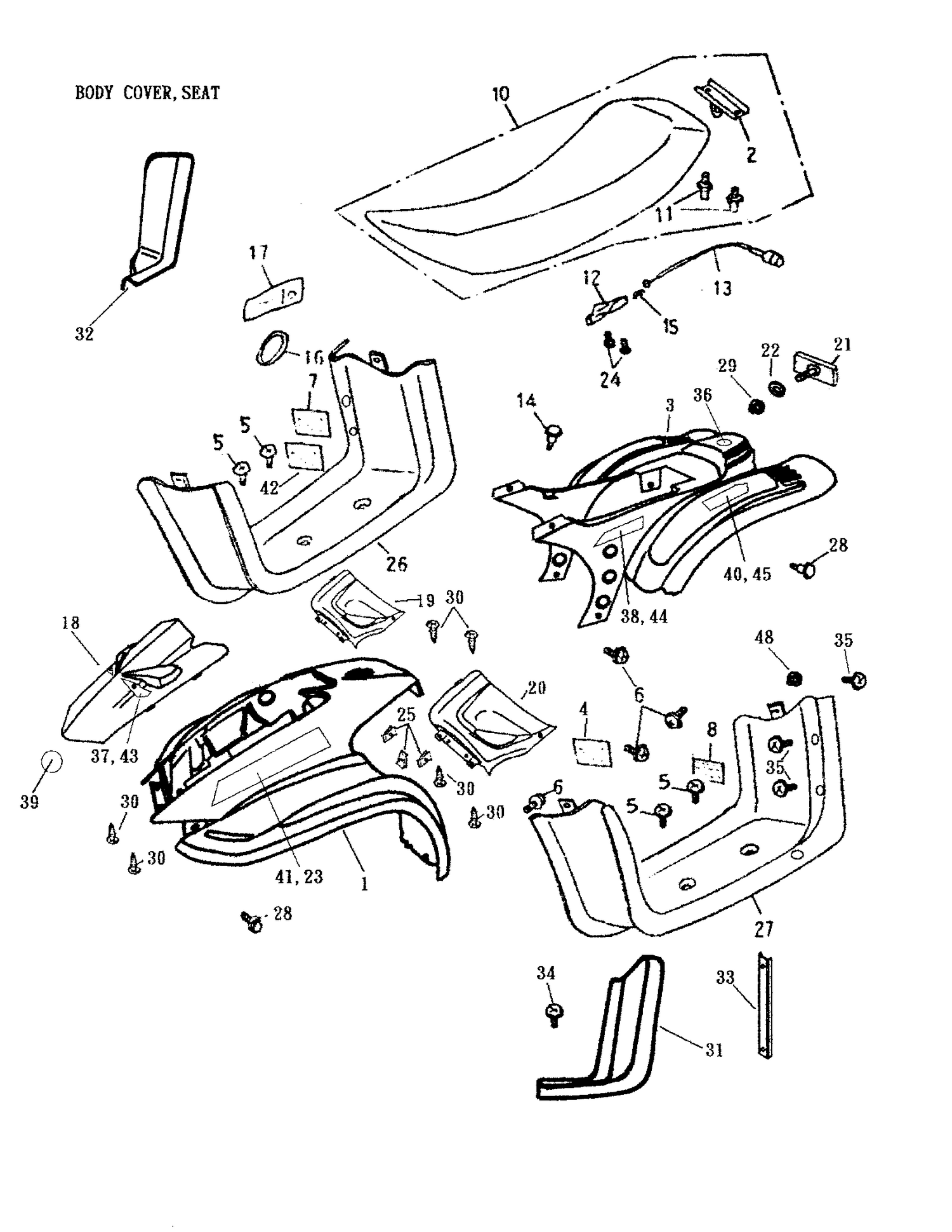

09- Body Cover, Seat 170-15
Parts (42)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A64301166000 | Front Cover |
| 2 | A77201145000 | SEAT BRACKET - Call your local BRP dealership |
| 3 | A83400166000 | REAR COVER - Call your local BRP dealership |
| 5 | A9370106015S | PAN FLAT HEAD PHILLIPS BOLT M6 X 15 - Call your local BRP dealership |
| 6 | A9380006020S | Pan Head Phillips Bolt M6 X 20 |
| 9 | A903440600A | U PLATE NUT, 6 MM - Call your local BRP dealership |
| 10 | A7720014500B | Seat Ass'y |
| 11 | A77203145000 | SEAT BOLT - Call your local BRP dealership |
| 12 | A77230145000 | Seat Lock Ass'y |
| 13 | A77212145000 | SEAT RELEASE CABLE - Call your local BRP dealership |
| 14 | A901110601218C | LADDER BOLT, 6 X 14 X 2.5 - Call your local BRP dealership |
| 15 | A77213145000 | Reset Spring |
| 16 | A91350145000 | Rubber Strip |
| 17 | A50120101000 | Tool Bag |
| 18 | A64302166000 | Front Visor |
| 19 | A83504166000 | RH Body Cover Trim |
| 20 | A83604166000 | LH Body Cover Trim |
| 21 | A33741133000 | REFLECTOR - Call your local BRP dealership |
| 22 | A941010615010 | PLAIN WASHER - Call your local BRP dealership |
| 23 | 704900283 | RH Logo Decal |
| 24 | A960000601210G | HEXAGONAL WASHER FACE BOLT M6X12 - Call your local BRP dealership |
| 25 | A903440500A | U Plate Nut, 4 mm |
| 26 | A64312166000 | RH.FLOOR PANEL - Call your local BRP dealership |
| 27 | A64313166000 | LH Floor Panel |
| 28 | A901110601418G | Ladder Bolt |
| 29 | A9035006000 | NYLON NUT M6 - Call your local BRP dealership |
| 30 | A9390305012 | Tapping Screw Truss Head Phillips M5 X 1 |
| 31 | A64331166000 | LH FLOOR PANEL PROTECT COVER - Call your local BRP dealership |
| 32 | A64332166000 | RH FLOOR PANEL PROTECT COVER - Call your local BRP dealership |
| 33 | A64333166000 | FLOOR PROTECT COVER BRACKET - Call your local BRP dealership |
| 34 | A9370106037G | PAN FLAT HEAD PHILLIPS BOLT M6 X 37 - Call your local BRP dealership |
| 35 | A9370106015G | PHILLIPS SCREW M6 X 15 - Call your local BRP dealership |
| 36 | 516008738 | BRP Logo 48mm This part replaces 516000983. |
| 37 | 704900291 | RH Front Cover Trim |
| 38 | 704900321 | Rear Cover Front Right Side Sticker |
| 39 | 516008738 | BRP Logo 48mm This part replaces 704900290. |
| 40 | 704900323 | Rear Cover Rear Left Side Sticker |
| 41 | 704900284 | LH Lodo Decal |
| 43 | 704900292 | LH Front Cover Trim |
| 44 | 704900322 | Rear Cover Front Left Side Sticker |
| 45 | 704900324 | Rear Cover Rear Right Side Sticker |
| 46 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
