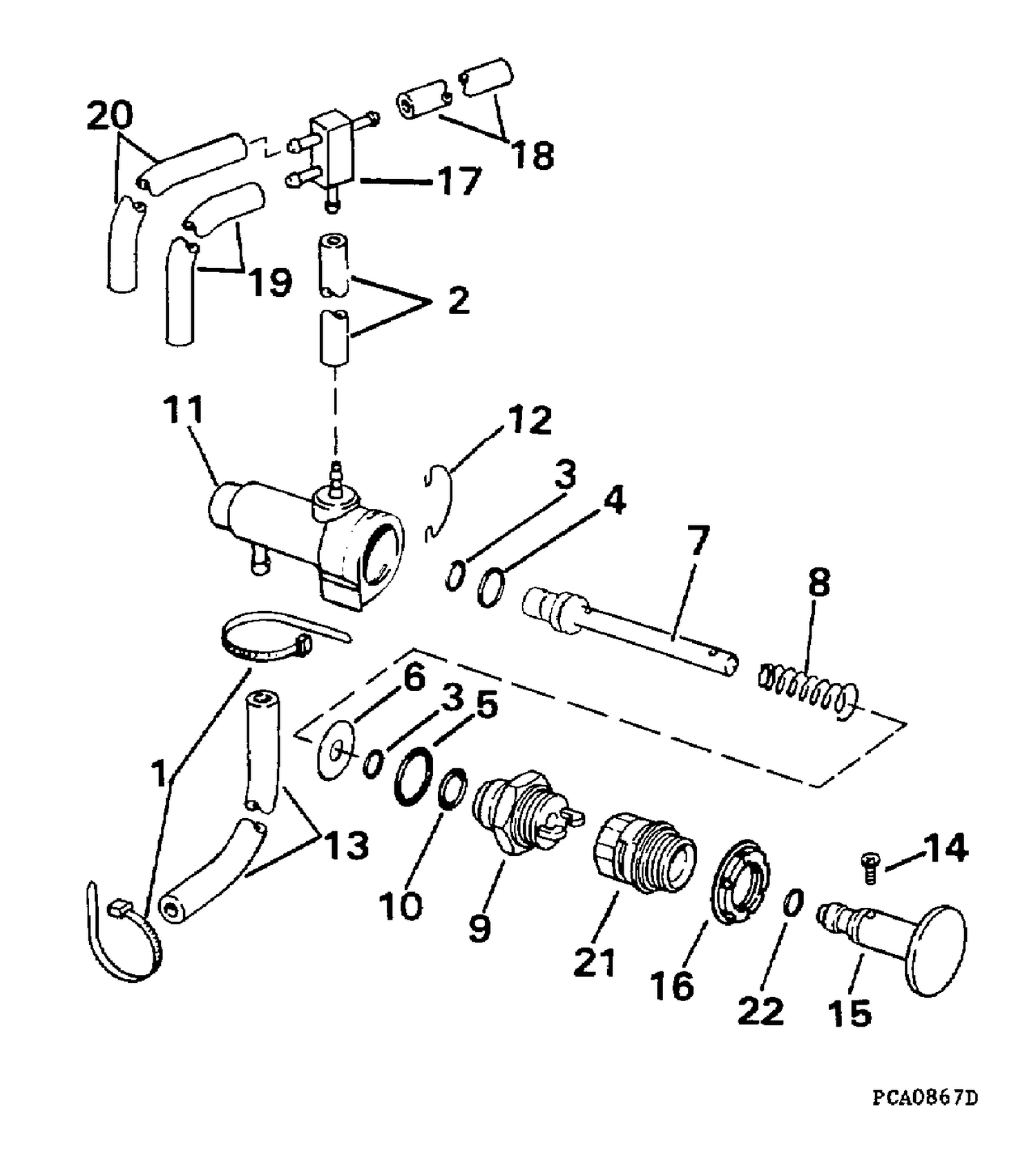

MANUAL PRIMER SYSTEM
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0320107 | ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 2 | HOSE, | Primer to tee 7 in. (178mm) |
| 13 | HOSE, | Carb. to primer 8 1/2 in. (216mm) |
| 14 | 0329054 | SCREW |
| 15 | 0334365 | KNOB |
| 16 | 0329670 | NUT |
| 17 | 0325564 | CONNECTOR, Drain hose |
| 18 | HOSE, | Tee to lower carb., 1 in. (25mm) |
| 19 | HOSE, | Primer to upper carb., 9 in. (229mm) te |
| 20 | HOSE, | Primer tee to middle carb, 6 in. (152mm long |
| 21 | 0334364 | SCREW, Power knob |
| 0432142 | 5007336 | Kit Ay This part replaces 0432142. |
