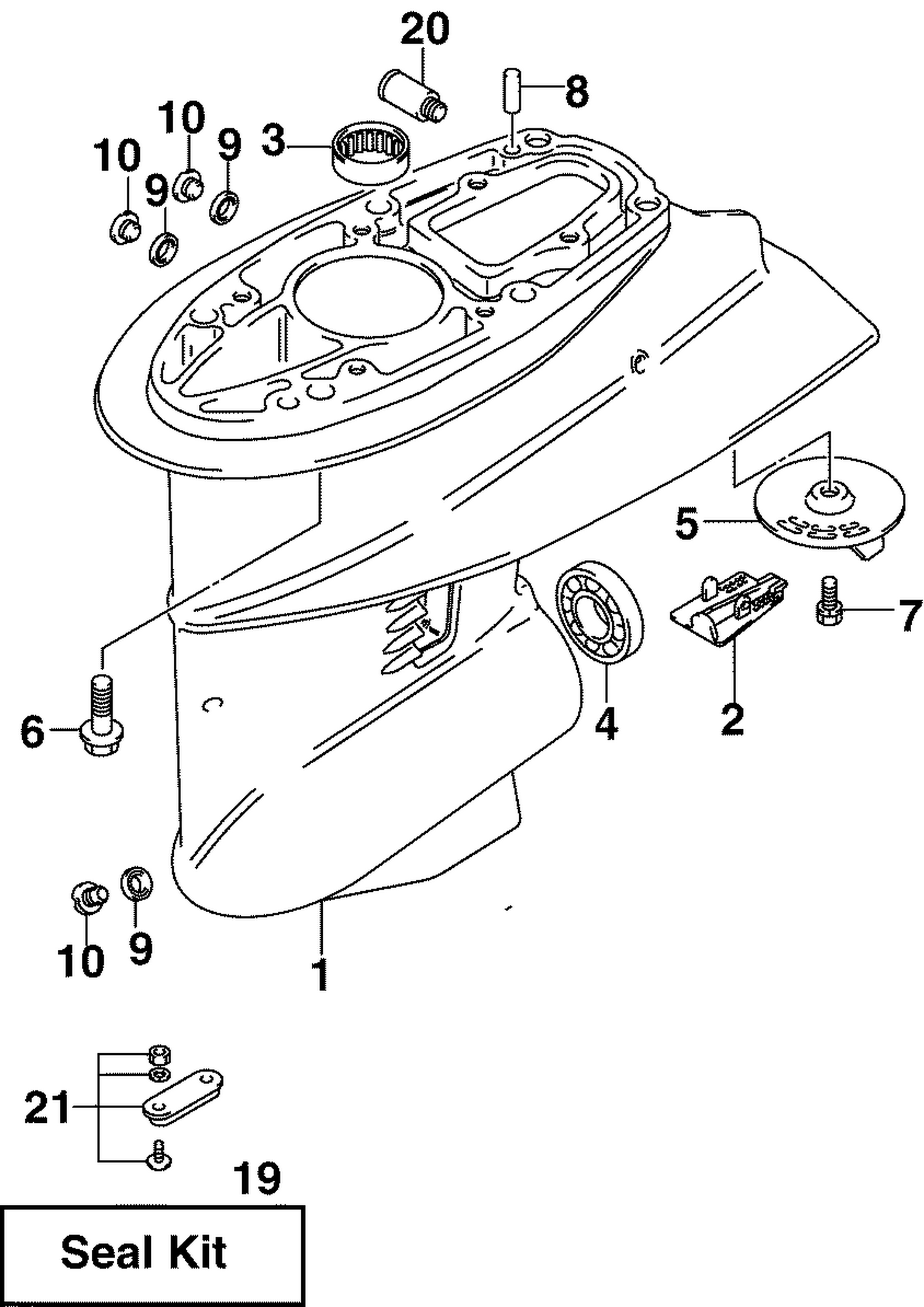

GEARCASE

GEARCASE

Parts (7)

Ref	Part Number	Description
1	5034710	GEARCASE HOUSING Assy (WHITE)
5	5032091	TRIM TAB
6	5035665	BOLT (8X40) This part replaces 5034598.
7	5031215	BOLT (8X16)
8	5031877	DOWEL PIN
9	5030071	GASKET
10	5030094	BOLT (10X7.5mm)
