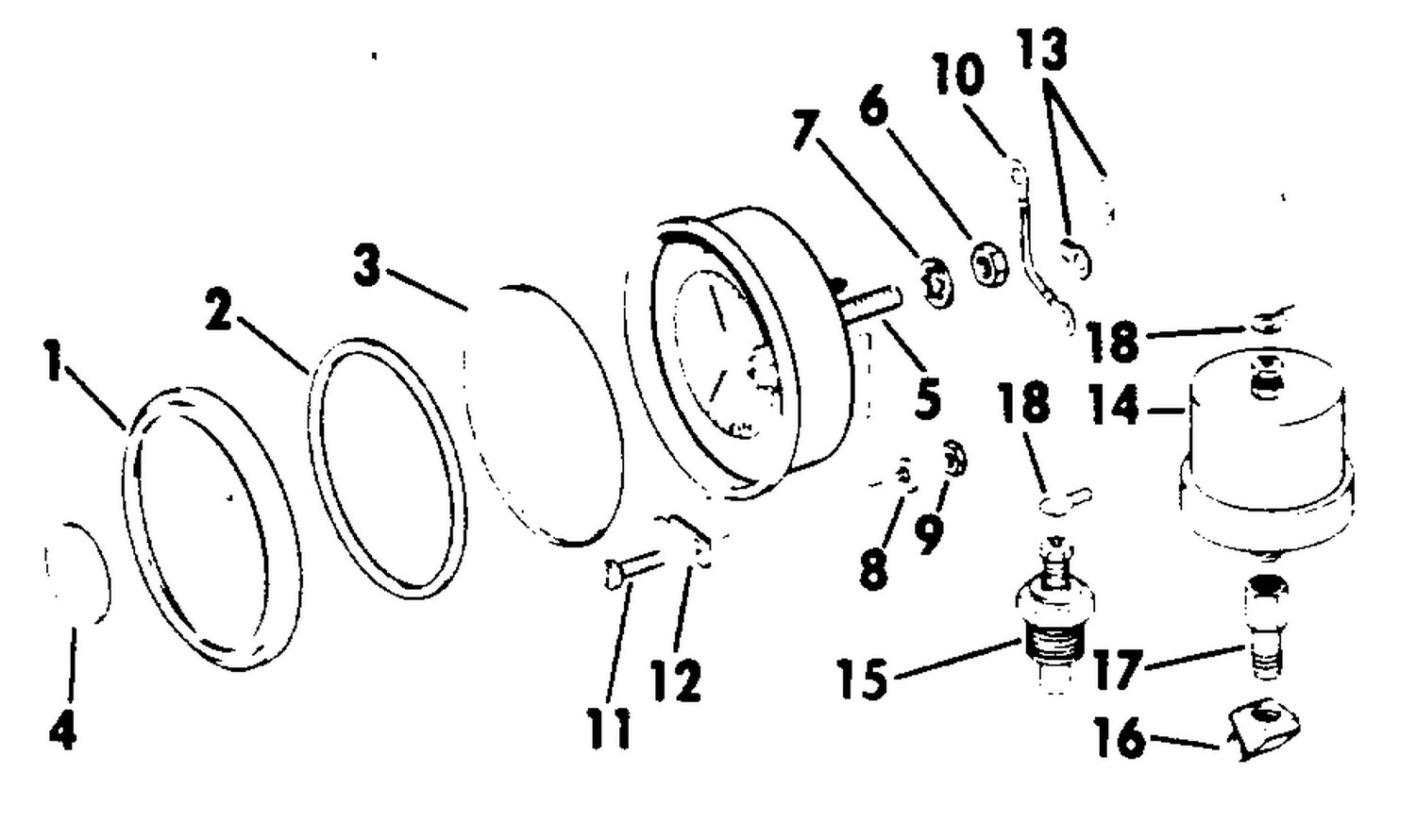

RING BEZEL
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0121346 | BEZEL |
| 2 | 0121347 | SEAL |
| 3 | 0121349 | LENS |
| 4 | 0121821 | TRIM, Button |
| 5 | 0121818 | SCREW |
| 8 | 0304141 | LOCKWASHER |
| 10 | 0172058 | CONNECTOR WIRE |
| 11 | 0314376 | SCREW |
| 12 | 0121819 | BLADE |
| 14 | 3853800 | OIL PRESSURE SENDER This part replaces 0172127. |
| 15 | 0171960 | SENDER, Water temperature |
| 16 | 0121687 | FITTING |
| 17 | 3855776 | ADAPTER, Oil sender This part replaces 0121688. |
