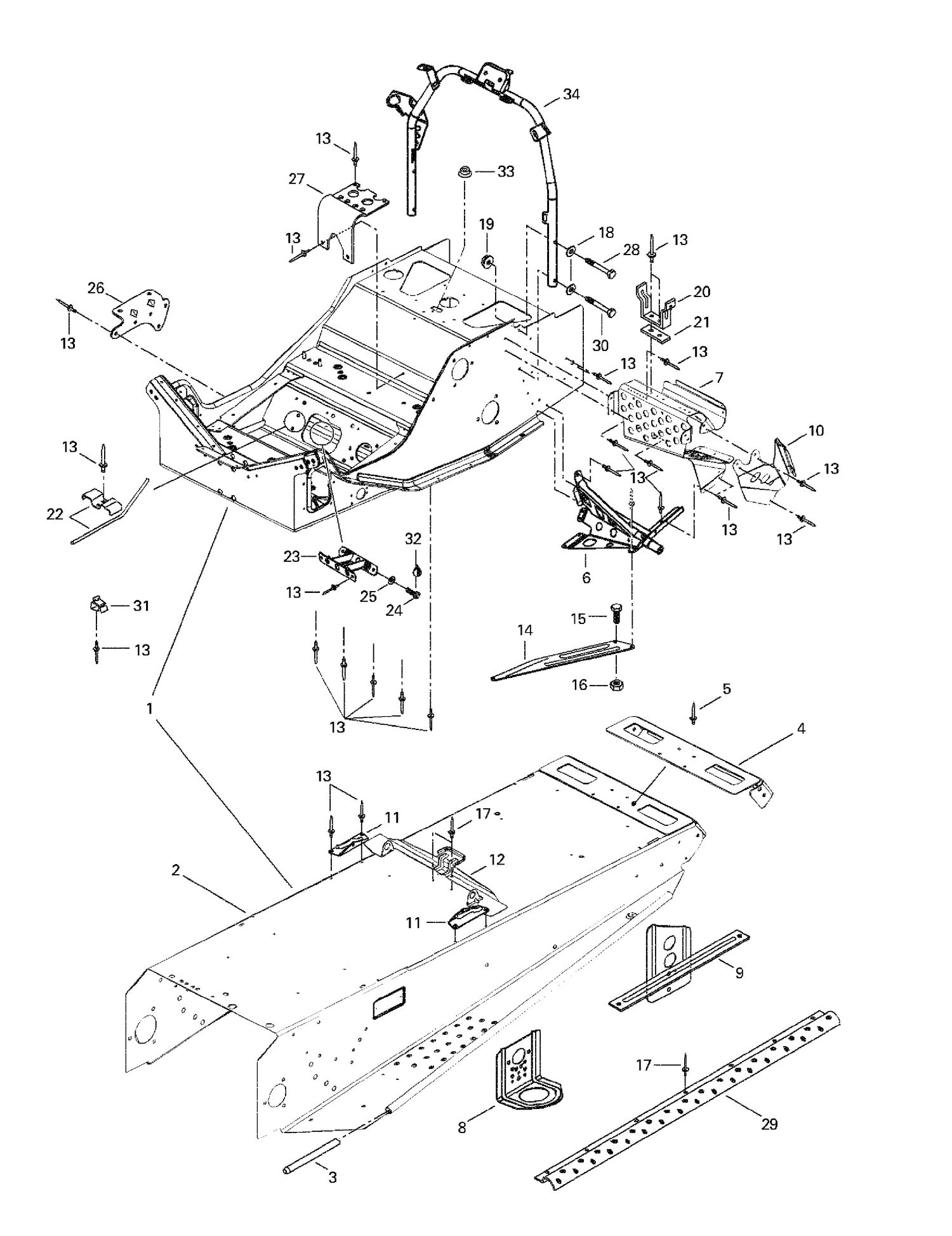

| Ref | Part Number | Description |
|---|
| 3 |
518304746 |
FOOTREST REINFORCEMENT - Call your local BRP dealership |
| 4 |
518317551 |
Cap-End |
| 5 |
390402200 |
Pop Rivet 3/16" |
| 6 |
518320507 |
LH SOOTREST SUPPORT - Call your local BRP dealership |
| 7 |
518318933 |
RH Front Footrest |
| 8 |
518312910 |
Front Bracket |
| 9 |
518318912 |
LH Rear Bracket |
| 10 |
518308729 |
Upper Plate L.H |
| 11 |
517266900 |
RH Tank Bracket |
| 12 |
518317560 |
Seat Bracket |
| 13 |
390402200 |
Pop Rivet 3/16" |
| 14 |
518316772 |
RH Reinf. Plate |
| 15 |
207151644 |
Hex. Screw M5 X 16 This part replaces 222051665. |
| 16 |
233251434 |
Flange Elastic Nut M5 This part replaces 228751045. |
| 17 |
390402400 |
Pop Rivet 3/16" |
| 18 |
234061410 |
Flat Washer 6 mm This part replaces 224061151. |
| 19 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 228761045. |
| 20 |
518202100 |
Belt Guard Bracket |
| 21 |
518207500 |
REINFORCEMENT - Call your local BRP dealership |
| 22 |
518313700 |
Guide Rope |
| 23 |
518304741 |
Reinf. Plate |
| 24 |
207182044 |
Hex. Screw M8 X 20 This part replaces 222082065. |
| 25 |
234181401 |
Lock Washer 8 mm This part replaces 224781140. |
| 27 |
518310400 |
AIR INTAKE SUPPORT - Call your local BRP dealership |
| 28 |
207063544 |
Hex. Flange Screw M6 X 35 This part replaces 222063565. |
| 29 |
518319401 |
Non-Skid Strip |
| 30 |
207064044 |
Hex. Screw M6 X 40 This part replaces 222064065. |
| 31 |
414227300 |
Clip |
| 32 |
293800005 |
Loctite 271, 10 ml This part replaces 413707400. |
| 33 |
414859400 |
CAP - Call your local BRP dealership |
| 517267000 |
LH |
Tank Bracket 517267000 |
| 518308730 |
Upper |
Plate R.H 518308730 |
| 518316773 |
LH |
Reinf. Plate 518316773 |
| 518318911 |
Attache |
Arrière DR 518318911 |
| 518318911 |
RH |
Rear Bracket 518318911 |
| 518318934 |
LH |
Front Footrest 518318934 |
| 518318934 |
Repose-Pied |
Avant GA 518318934 |
| 518320506 |
RH |
Footrest Support 518320506 |
| 518320506 |
Support |
Repose-Pied DR 518320506 |
