| Ref | Part Number | Description |
|---|
| 1 |
0388827 |

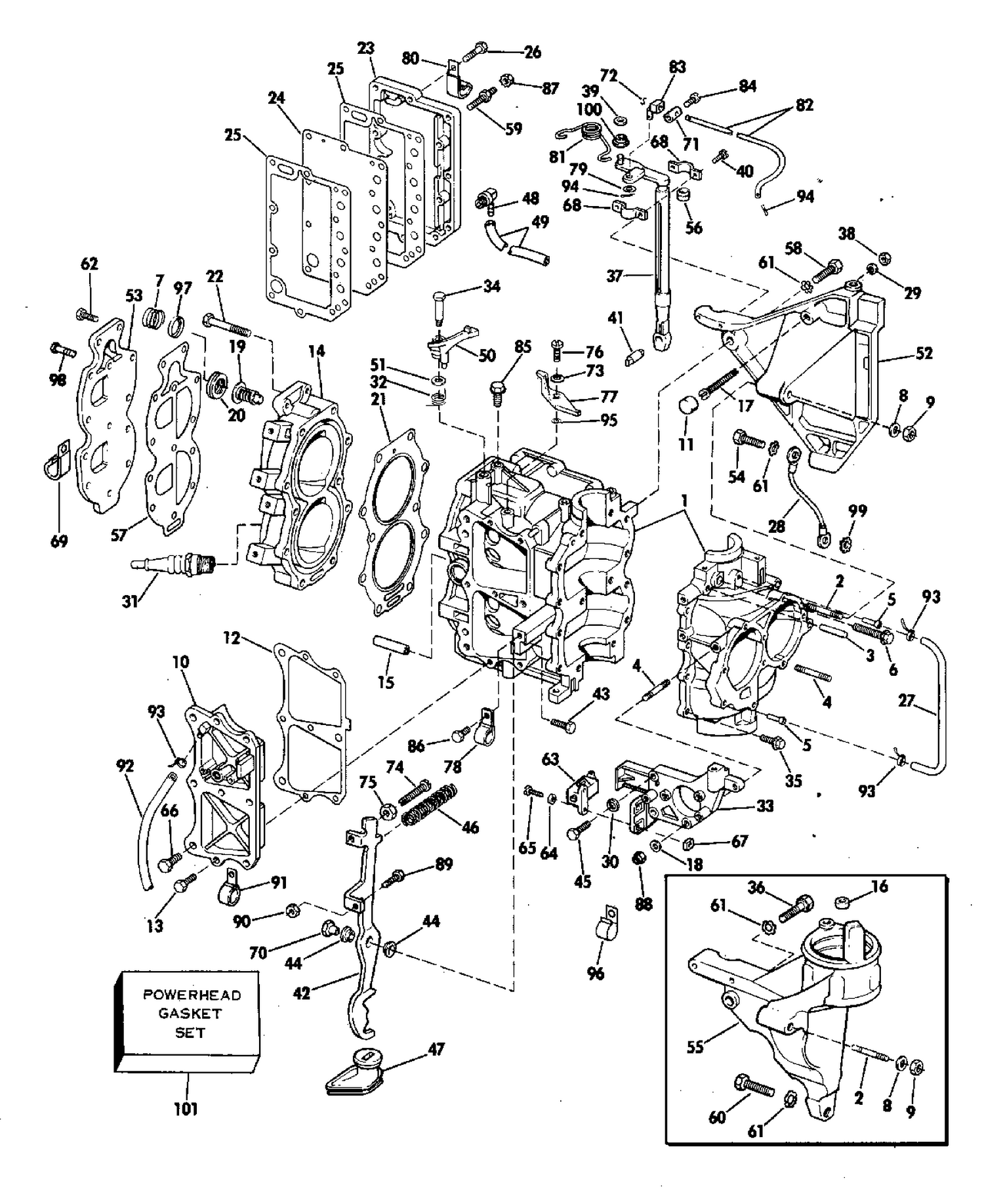

CYLINDER & CRANKCASE ASSEMBLY |
| 7 |
0328051 |
SPRING, Pressure release This part replaces 0323586. |
| 8 |
0329241 |
RONDELLE This part replaces 0306482. |
| 10 |
0322848 |
BY-PASS COVER ASSY |
| 10 |
0387707 |
BY-PASS COVER & NIPPLE ASSY. |
| 11 |
0314416 |
BUMBER, Advance screw |
| 12 |
0319661 |
GASKET, By-pass cover |
| 13 |
0300646 |
VIS, ancrage |
| 14 |
0323584 |
CYLINDER HEAD ASSY |
| 15 |
0318357 |
DEFLECTOR, Cyl. water passage |
| 16 |
0304847 |
JOINT, boulon de démarreur |
| 17 |
0316101 |
SCREW, Advance |
| 18 |
0329241 |
RONDELLE This part replaces 0306482. |
| 19 |
5005440 |
THERMOSTAT This part replaces 0378065. |
| 20 |
0323582 |
SEAL, Thermostat |
| 21 |
0319633 |
GASKET, Cylinder head |
| 22 |
0305027 |
SCREW |
| 23 |
0322090 |
EXHAUST COVER, Outer |
| 24 |
0319577 |
EXHAUST COVER, Inner |
| 25 |
0319578 |
GASKET, Exhaust cover |
| 26 |
0306418 |
VIS, ancrage |
| 27 |
HOSE, |
Mfld. to crankcase |
| 28 |
0376349 |
FIL, masse |
| 30 |
3854292 |
LOCK WASHER, Screw to hsg. This part replaces 0304145. |
| 31 |
0389471 |
SPARK PLUG, Champion L78 |
| 32 |
0322122 |
RETURN SPRING, Lever |
| 33 |
0323791 |
BRACKET, Starboard |
| 34 |
0321995 |
SHOULDER SCREW |
| 35 |
0314979 |
SCREW, Cylinder to c'case |
| 36 |
0307471 |
SCREW |
| 37 |
0386464 |
CONTROL LEVER & PIN |
| 39 |
0305831 |
SHIM |
| 40 |
0319547 |
SCREW, Clamp & ground lead |
| 41 |
0329197 |
PIN, Control lever This part replaces 0304155. |
| 42 |
0322233 |
SHIFTER LOCK |
| 43 |
0306049 |
SCREW |
| 44 |
0325542 |
BUSHING This part replaces 0316603. |
| 45 |
0314951 |
SCREEN, Mfld. to c'case |
| 46 |
0302587 |
SPRING, Shifter lock |
| 47 |
0319299 |
GROMMET |
| 49 |
0322172 |
HOSE, Indicator |
| 50 |
0317657 |
LCOKOUT LEVER |
| 52 |
0351035 |
BRACKET, Port This part replaces 0320374. |
| 53 |
0323583 |
COVER, Cylinder head |
| 55 |
0333929 |
SUPPORT, bâbord This part replaces 0320012. |
| 56 |
0320524 |
BEARING, Control lever |
| 57 |
0319665 |
GASKET, Water cover |
| 58 |
0314951 |
SCREEN, Mfld. to c'case |
| 59 |
0311344 |
BOLT, Double end |
| 62 |
0300646 |
VIS, ancrage |
| 63 |
0386056 |
INTERRUPTEUR DE DÉMARRAGE AU POINT MORT |
| 64 |
0310498 |
WASHER |
| 65 |
0312288 |
SCREW, Safety switch |
| 66 |
0306450 |
SCREW |
| 68 |
0320523 |
BEARING CLAMP |
| 70 |
0321528 |
NUT, Shifter lock |
| 71 |
0304222 |
COLLAR |
| 72 |
0307565 |
PIN |
| 73 |
0310540 |
RONDELLE, arbre de verrouillage de relevage, extérieur |
| 74 |
0318491 |
SCREW, Adj shifter lock |
| 75 |
0311375 |
NUT This part replaces 0316659. |
| 76 |
0315092 |
SCREW, Air silencer base |
| 76 |
0322781 |
SCREW, Lockout lever boss |
| 77 |
0322661 |
LEVER, Lockout, lower |
| 79 |
0305831 |
SHIM |
| 80 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0310440. |
| 81 |
0321721 |
SPRING |
| 82 |
0320156 |
ROD, Throttle control |
| 83 |
0320786 |
PIVOT PIN |
| 84 |
0304221 |
SCEW,Collar to cable |
| 85 |
0317753 |
SCREW |
| 86 |
0319580 |
SCREW |
| 87 |
0311375 |
NUT This part replaces 0316659. |
| 89 |
0317400 |
SCREW, Adjustment |
| 92 |
HOSE, |
Bypass cover to mfld. |
| 93 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 97 |
0324314 |
RETAINER, Thermostat |
| 100 |
0307841 |
BUSHING, Control lever |
| 101 |
0387849 |
POWERHEAD GASKET SET |
