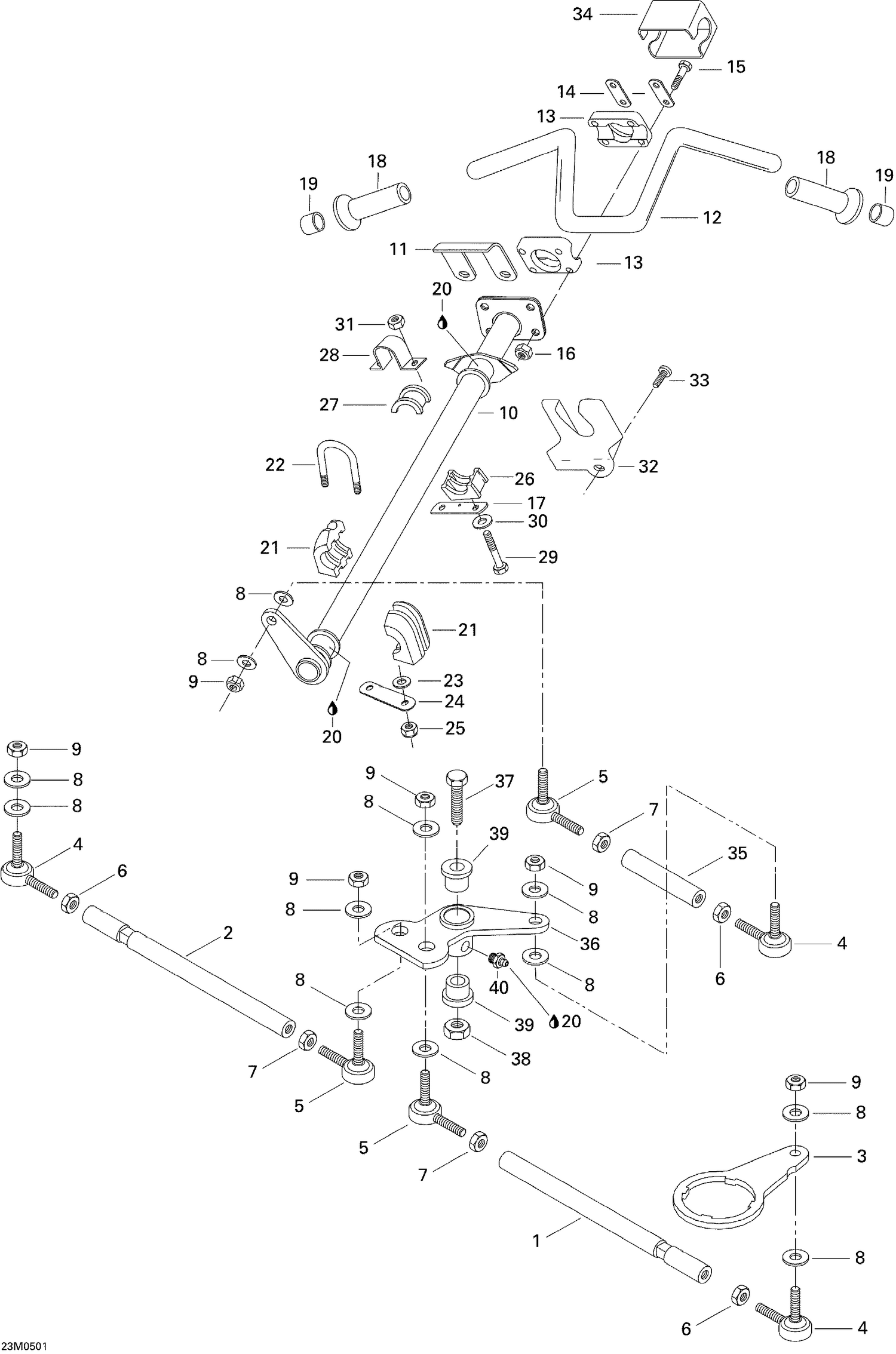

07- Steering System
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 506113300 | Tie Rod |
| 2 | 506113400 | Tie Rod |
| 3 | 506148900 | Steering Arm |
| 4 | 506151492 | RH BALL JOINT - Call your local BRP dealership |
| 5 | 506151845 | LH JOINT BALL - Call your local BRP dealership This part replaces 506151495. |
| 6 | 732610010 | RH Threaded Hex. Jam Nut M10 |
| 7 | 250100016 | LH Threaded Hex. Jam Nut M10 |
| 8 | 503175800 | Washer |
| 9 | 232501416 | Elastic Flange Nut M10 |
| 10 | 506149700 | Steering Main Tube Paint |
| 11 | 517224200 | Retainer Support |
| 12 | 506151812 | Handle Bar Paint |
| 13 | 277000142 | STEERING CLAMP - Call your local BRP dealership |
| 14 | 709400509 | Stiffner This part replaces 506151196. |
| 15 | 207085544 | Hex. Screw M8 X 55 |
| 16 | 232581414 | Hex. Elastic Stop Nut M8 |
| 17 | 506149500 | Paint Plate |
| 18 | 506151530 | RH Grip 6-1/2" This part replaces 572100500. |
| 19 | 572081900 | HANDLEBAR END - Call your local BRP dealership |
| 20 | 219700417 | SYNTHETIC GREASE, 400 G - Call your local BRP dealership |
| 21 | 572067100 | HALF-BUSHING - Call your local BRP dealership |
| 22 | 506060600 | U-clamp |
| 23 | 234081410 | Flat Washer 8 mm |
| 24 | 517134700 | Lock Tab |
| 25 | 232581414 | Hex. Elastic Stop Nut M8 |
| 26 | 572064400 | Bushing |
| 27 | 572064500 | BUSHING - Call your local BRP dealership |
| 28 | 517126200 | Retainer Support |
| 29 | 207182044 | Hex. Screw M8 X 20 |
| 30 | 234081410 | Flat Washer 8 mm |
| 31 | 232581414 | Hex. Elastic Stop Nut M8 |
| 32 | 517262000 | PAINT PLATE - Call your local BRP dealership |
| 33 | 364901600 | Phillips Screw 8x1/2" |
| 34 | 705000371 | COVER - Call your local BRP dealership |
| 35 | 506149800 | Tie Rod |
| 36 | 506118000 | Welded Idler Arm |
| 37 | 207006544 | Hex. Screw M10 X 1.5 X 65 |
| 38 | 233601416 | Elastic Locking Nut M10 X 1.5 |
| 39 | 414530000 | CUSHION - Call your local BRP dealership |
