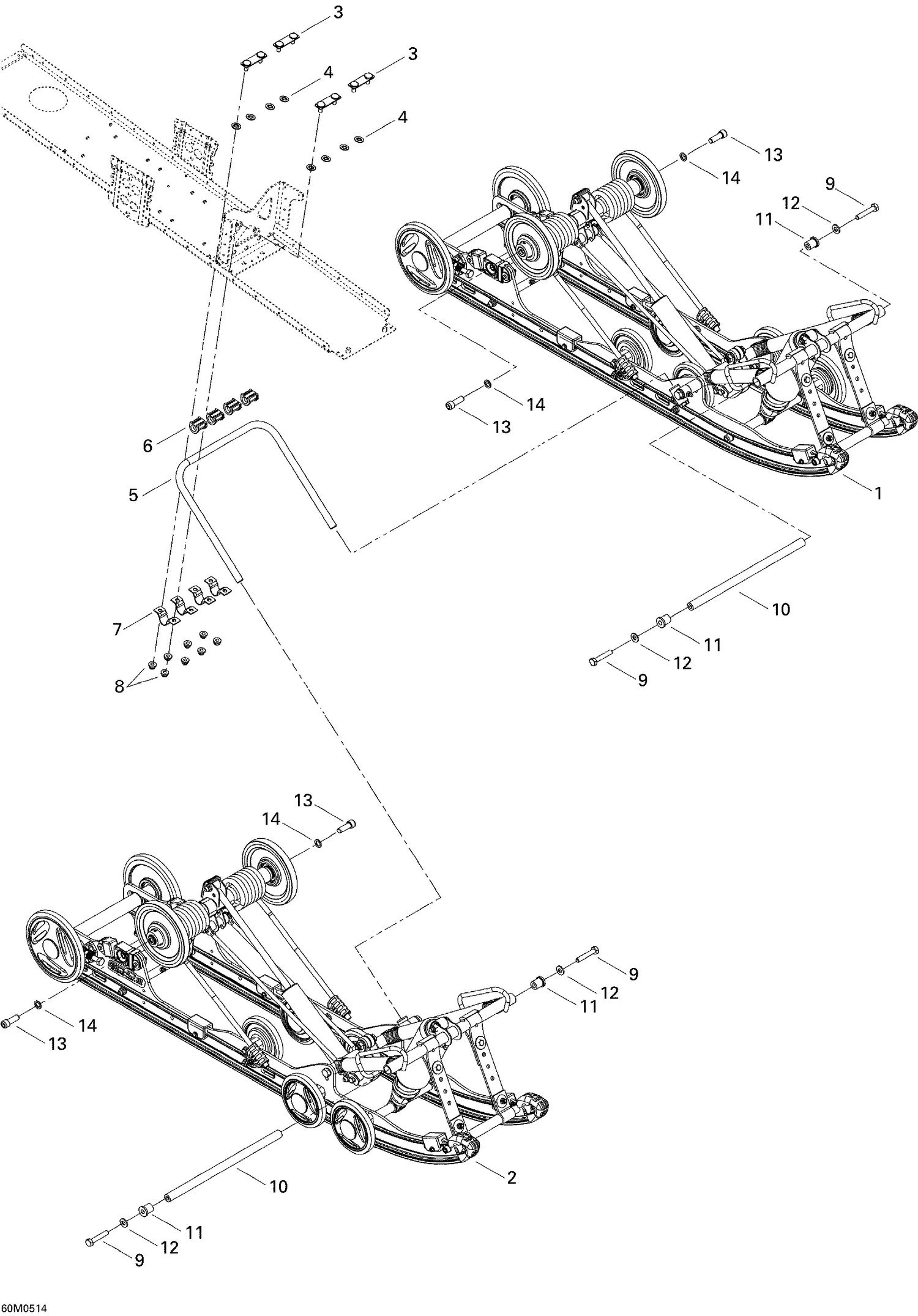

| Ref | Part Number | Description |
|---|
| 1 |
Not |
Available As Spare Part - LH Rear Suspension |
| 2 |
Not |
Available As Spare Part - LH Rear Suspension |
| 3 |
503109100 |
Plate |
| 4 |
250100046 |
Push Nut |
| 5 |
503190540 |
Stabilizing Bar |
| 6 |
505070881 |
RH BUSHING, 5/8 - Call your local BRP dealership |
| 7 |
506095800 |
CLAMP - Call your local BRP dealership |
| 8 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 9 |
207205544 |
Hex. Screw M10 X 55, Scotch Grip |
| 10 |
503190387 |
SHAFT - Call your local BRP dealership |
| 11 |
503189324 |
Bushing |
| 12 |
732900049 |
Washer |
| 13 |
205523544 |
Socket Head Screw M12 X 35, Scotch Grip |
