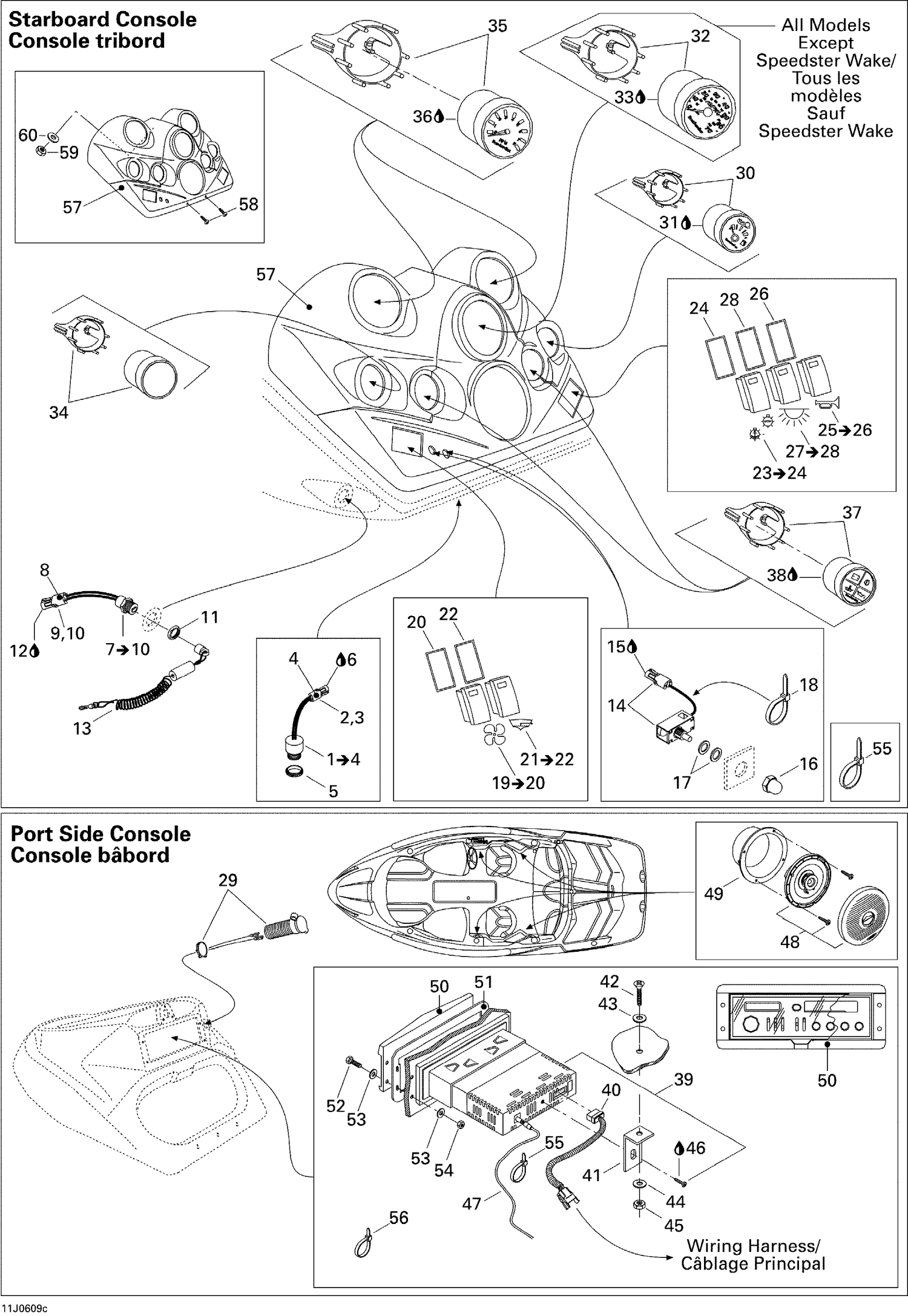

| Ref | Part Number | Description |
|---|
| 2 |
278000222 |
Male Terminal |
| 3 |
278000218 |
Wire Seal |
| 4 |
278000217 |
Female Housing, 2 Circuits |
| 5 |
278000707 |
Buzzer Nut |
| 6 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 8 |
278000273 |
Male Housing, 3 Circuits |
| 9 |
278000218 |
Wire Seal |
| 10 |
278000223 |
Female Terminal |
| 11 |
278002963 |
Safety Nut (DESS Switch) This part replaces 278000508. |
| 12 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 13 |
204471206 |
Safety Lanyard This part replaces 204471099. |
| 14 |
278000621 |
IGNITION SWITCH - Call your local BRP dealership |
| 15 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 16 |
278000565 |
IGNITION SWITCH CAP, RED - Call your local BRP dealership |
| 17 |
204100027 |
FLAT WASHER - Call your local BRP dealership |
| 18 |
293750002 |
Tie Wrap 142 mm |
| 20 |
204470132 |
Gasket |
| 22 |
204470132 |
Gasket |
| 24 |
204470132 |
Gasket |
| 26 |
204470132 |
Gasket |
| 28 |
204470132 |
Gasket |
| 29 |
710001248 |
DC Outlet This part replaces 204470907. |
| 30 |
204470956 |
FUEL GAUGE - Call your local BRP dealership |
| 31 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 32 |
204470957 |
Speed Gauge |
| 33 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 34 |
204470969 |
GAUGE CAP - Call your local BRP dealership |
| 35 |
204470958 |
TACHOMETER GAUGE - Call your local BRP dealership |
| 36 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 37 |
204470959 |
ENGINE WARNING GAUGE - Call your local BRP dealership |
| 38 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 41 |
204470837 |
RADIO SUPPORT - Call your local BRP dealership |
| 42 |
208662060 |
PHILLIPS SCREW M6 X 20 - Call your local BRP dealership |
| 43 |
234061600 |
Stainless Flat Washer M6 |
| 44 |
234062600 |
Flat Washer M6, Stainless |
| 45 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 46 |
293800060 |
Loctite 243, 10 ml |
| 47 |
204470931 |
Antenna |
| 48 |
204471059 |
Speaker, White |
| 49 |
204470982 |
SPEAKER COVER ASS'Y - Call your local BRP dealership |
| 50 |
204470266 |
Radio Cover |
| 51 |
204470257 |
RADIO COVER GASKET - Call your local BRP dealership |
| 55 |
293750001 |
Tie Wrap 94 mm |
| 56 |
293750002 |
Tie Wrap 142 mm |
| 58 |
Not |
Available As Spare Part - SCREW-TAPP.TRUSS HD.PH.M4.2X25 |
| 59 |
212000005 |
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership |
