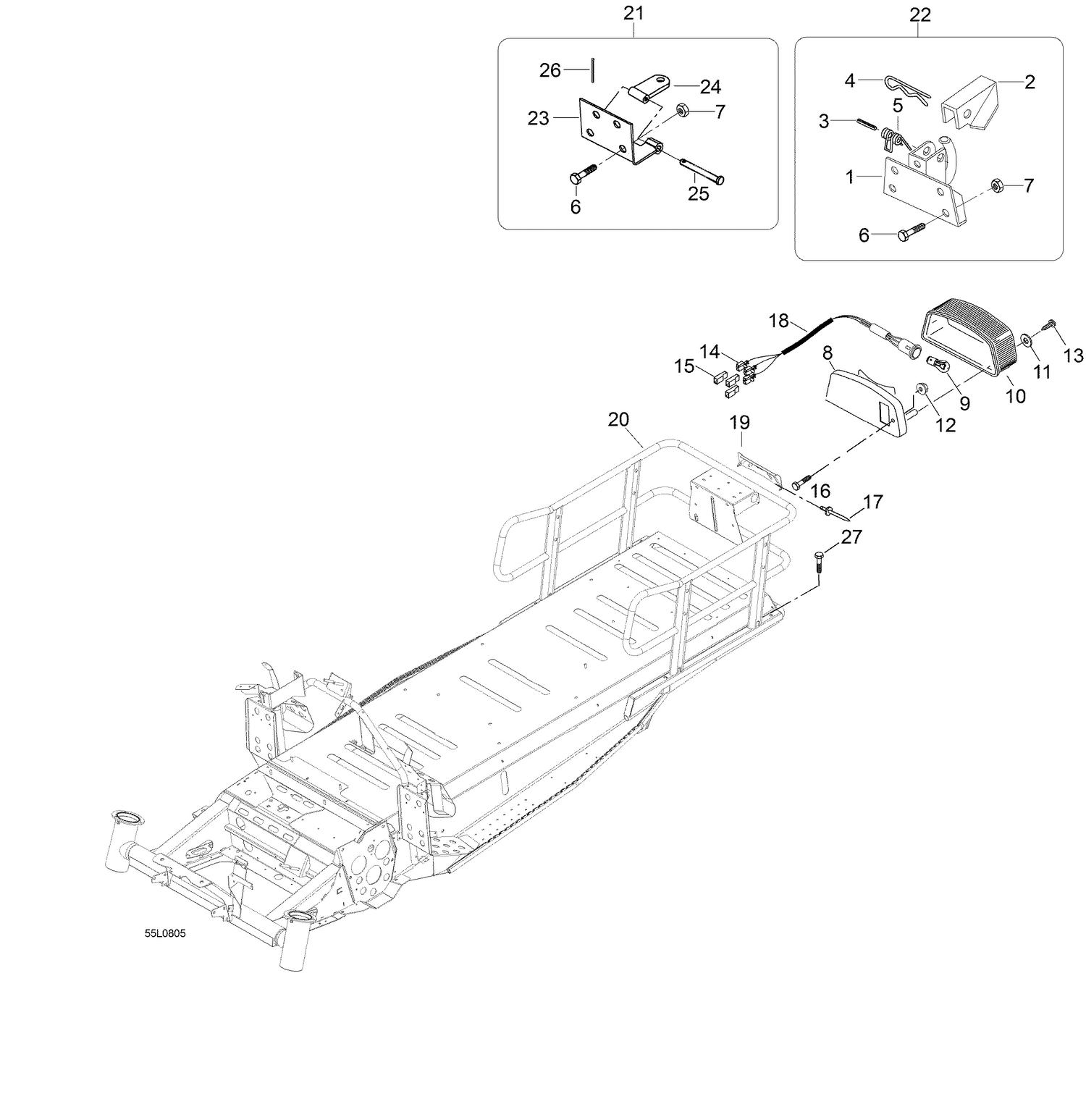

| Ref | Part Number | Description |
|---|
| 1 |
5344156 |
HITCH ASS'Y - Call your local BRP dealership This part replaces 5344208. |
| 2 |
5440767 |
Lock |
| 3 |
41012 |
Spring Pin |
| 4 |
41029 |
Needle Pin |
| 5 |
545693 |
SPRING - Call your local BRP dealership |
| 6 |
40009 |
Hex. screw M8 x 50 |
| 7 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 33011. |
| 8 |
515175397 |
LAMP HOUSING - Call your local BRP dealership |
| 9 |
520000758 |
Bulb This part replaces 410504100. |
| 10 |
414513700 |
Lens |
| 11 |
414516400 |
Washer - Call your local BRP dealership |
| 12 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 13 |
209632540 |
Phillips Tapping Screw M3.9 X 25 This part replaces 414516300. |
| 14 |
42178 |
Connector |
| 15 |
42179 |
Connector housing |
| 16 |
40032 |
Hex. screw M6 x 30 |
| 17 |
36010 |
Rivet |
| 18 |
39023 |
Plastic Tubing d=6, musta - Call your local BRP dealership |
| 19 |
605351510 |
SPACER - Call your local BRP dealership |
| 20 |
605255117 |
Rack |
| 23 |
5344151 |
Plate |
| 24 |
548745 |
TONGUE WELD - Call your local BRP dealership |
| 25 |
560309200 |
PIN-RETAINER - Call your local BRP dealership |
| 26 |
41031 |
Saksisokka 2,5x16 DIN 94-S |
