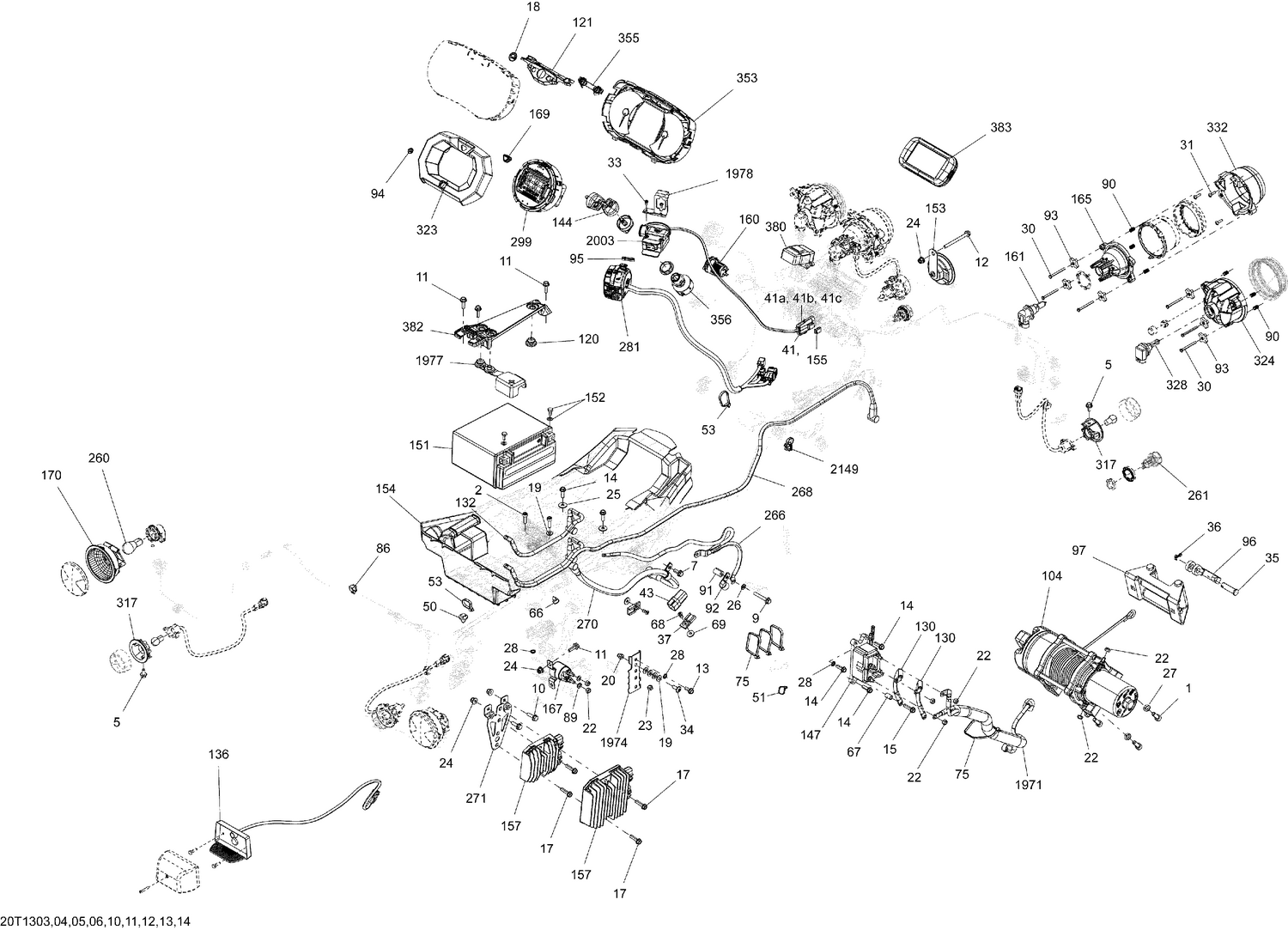

10- Electrical System
Parts (60)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 205562044 | Socket Head Screw M6 X 20, Scotch Grip |
| 9 | XXX | Not Available As Spare Parts |
| 10 | 207662044 | Hex. Flange Screw M6 X 20 |
| 11 | 207662084 | Hex. Flange Screw M6 X 20 |
| 13 | 210261650 | Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 14 | 210262050 | Hexagonal Head Screw This part replaces 210262080. |
| 17 | 210262550 | Hex. Flange Forming Screw M6 X 25 This part replaces 210262580. |
| 19 | 224061121 | Flat Washer |
| 20 | 232361493 | Domed Nut M6 |
| 22 | 232561414 | Elastic Stop Nut M6 |
| 23 | 232561414 | Elastic Stop Nut M6 |
| 24 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 25 | 234062670 | Stainless Steel Flat Washer |
| 26 | XXX | Not Available As Spare Parts |
| 28 | 234461608 | External Serrated Lock Washer 6 mm |
| 30 | 250000718 | Hex. Screw K40 X 45 This part replaces 241044540. |
| 31 | 250000723 | Phillips Screw K40 X 16 This part replaces 250000084. |
| 34 | 250000223 | Torx Screw M6 X 16 |
| 37 | 270000141 | Clip |
| 41 | 710000917 | Connector Ass'y |
| 41a | 278000281 | Female Terminal Housing, 3 Circuits |
| 41b | 278000216 | Wire Seal |
| 41c | 710000992 | Clip |
| 43 | 710003006 | Housing |
| 50 | 293730040 | Mount Dart |
| 51 | 293750001 | Tie Wrap 94 mm |
| 53 | 414115200 | Tie-Rap 180 mm |
| 66 | 293830005 | Rubber Bumper |
| 68 | 390402300 | Pop Rivet 3/16" |
| 69 | 391301600 | Washer |
| 75 | 293750008 | Tie Wrap 368 mm |
| 86 | 414227300 | Clip |
| 89 | 234161601 | Lock Washer Helical M6 |
| 90 | 517168600 | Spring |
| 91 | XXX | Not Available As Spare Parts |
| 92 | 518321570 | Open Clamp |
| 93 | 572106600 | Handle |
| 120 | 705014429 | Rubber Stopper This part replaces 705003666. |
| 151 | 410301203 | Battery YUASA YTX20L |
| 152 | 250000282 | Battery Bolt Kit This part replaces 295500849. |
| 154 | 710008370 | Battery Support This part replaces 710003325. |
| 160 | 710001248 | DC Outlet |
| 161 | 415129249 | Halogen Bulb |
| 165 | 710002525 | High Beam Ass'y |
| 167 | 710007777 | Starter Relay This part replaces 710001364. |
| 170 | 710001645 | Tail Light Ass'y |
| 260 | 520000758 | Bulb |
| 266 | 710004382 | Ground Cable This part replaces 710001747. |
| 270 | 710001750 | POSITIVE CABLE - Call your local BRP dealership |
| 271 | 710001752 | Rectifier Support |
| 324 | 710006177 | Low Beam This part replaces 710002191. |
| 328 | 715900141 | Bulb 12V 55W |
| 332 | 710002291 | RH High Front Housing |
| 332 | 710002292 | LH High Front Housing |
| 356 | 710008400 | Ignition Switch This part replaces 710002327. |
| 382 | 710009129 | Retaining Plate This part replaces 710002404. |
| 383 | XXX | Not Available As Spare Parts |
| 1974 | 710002567 | BRACKET - Call your local BRP dealership |
| 1977 | 710006729 | Battery Cable Cap This part replaces 710002569. |
| 2149 | 710002896 | Tie-Rap Clip |
