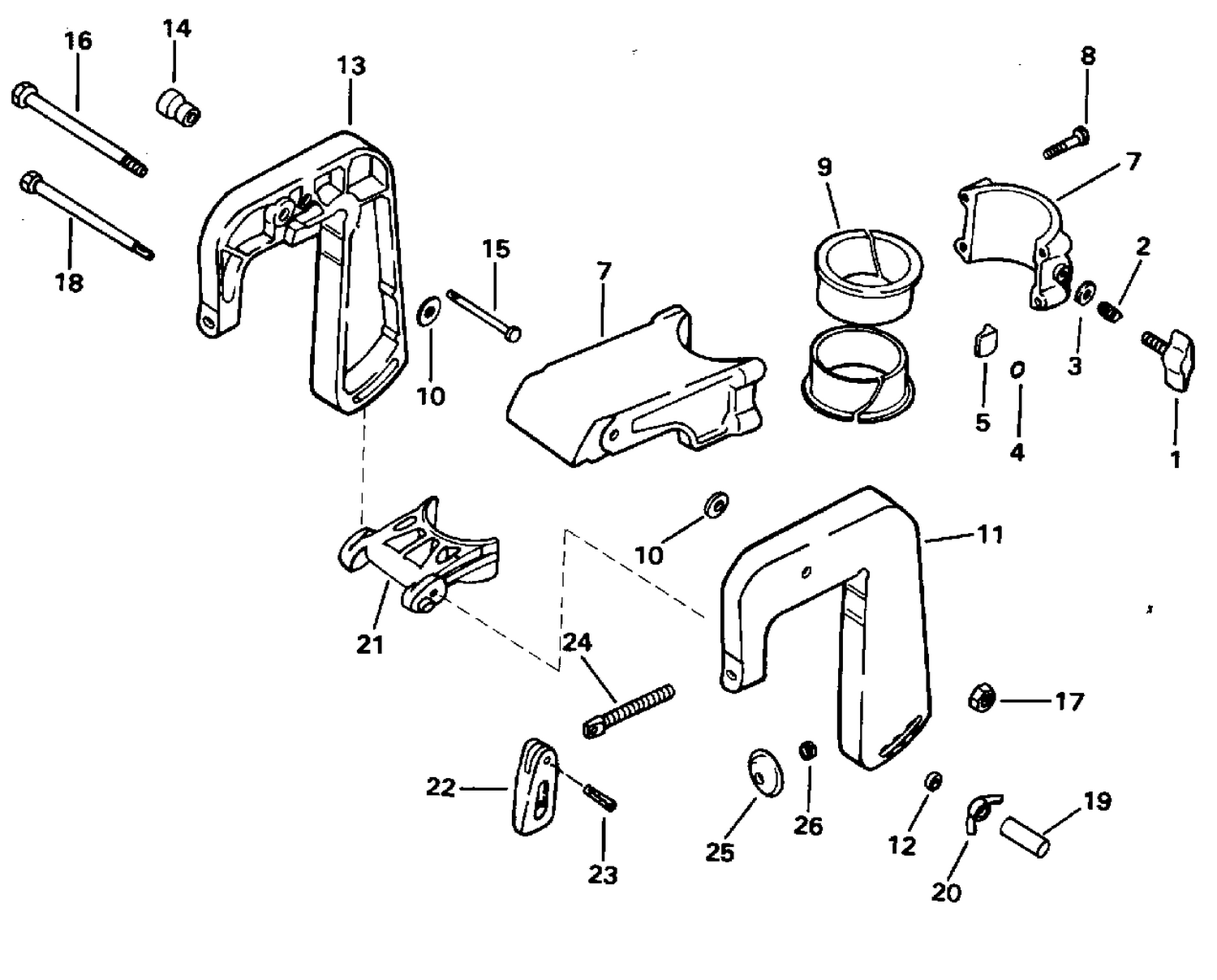

| Ref | Part Number | Description |
|---|
| 1 |
0114789 |
KNOB & SCREW Assy, Friction adj |
| 2 |
0115235 |
SPRING, Friction adjustment knob |
| 3 |
0115251 |
WASHER |
| 4 |
0326956 |
JOINT TORIQUE, friction de direction |
| 5 |
0115233 |
WEDGE, Friction adjustment knob |
| 7 |
0114883 |
SWIVEL BRACKET & CLAMP |
| 9 |
0115231 |
SPLIT BUSHING, Exhaust housing |
| 10 |
0115243 |
WASHER, Tilt bolt |
| 10aa |
518332622 |
Radiator |
| 10ac |
605636003 |
Clinch Nut M6 Hexsert |
| 10ad |
293450275 |
Insert |
| 10af |
605636003 |
Clinch Nut M6 Hexsert |
| 10ah |
518331836 |
Rear Cap |
| 10aj |
250001151 |
Torx Button Head Screw M8 X 25 |
| 10ak |
518330540 |
RH Footrest 500MM |
| 10an |
518330541 |
LH Footrest 500MM |
| 10aq |
390909100 |
Avex Rivet |
| 10ar |
390909200 |
Avex Rivet |
| 10au |
293150264 |
Rivet Ornit 6,5 X 10.5 |
| 10av |
293150265 |
Rivet Ornit 6,5 X 12.5 |
| 10aw |
293150266 |
Rivet Ornit 6,5 X 14.5 |
| 10ax |
293150267 |
Rivet Ornit 6,5 X 16.5 |
| 10b1 |
250300027 |
Clinch Stud M6 X 20 |
| 10c |
518332805 |
RH Drive Axle Cover |
| 10g |
518334095 |
LH Chassis Reinforcement |
| 10h |
518329368 |
LH Frame Corner 20 |
| 10j |
518329369 |
RH Molded Spacer |
| 10t |
518330538 |
LH Rear Support |
| 10u |
518330539 |
RH Rear Support |
| 10v |
518329789 |
RH Footrest Reinforcement |
| 10w |
518332924 |
Deep Black, LH Chassis Reinforcement |
| 10x |
518330282 |
RH Roller |
| 10y |
518330281 |
LH Roller |
| 12 |
0115362 |
WASHER, Trimming |
| 14 |
0115344 |
KNOB, Tilt lock |
| 15 |
0115343 |
PIN, Tilt lock |
| 16 |
0115242 |
TILT BOLT, Stern bracket |
| 17 |
0115244 |
NUT, Tilt bolt |
| 18 |
0114887 |
BOLT, Trimming |
| 20 |
0115360 |
WING NUT |
| 20 |
293730052 |
Black, Plug |
| 21 |
0115239 |
SUPPORTING BRACKET |
| 30 |
234081430 |
Flat Washer M8 |
| 35 |
518331727 |
RH Stirrup Reinforcement |
| 42 |
250000717 |
Torx Head Screw M6 X 16 |
| 50 |
518330928 |
Heat Shield |
| 60 |
250000717 |
Torx Head Screw M6 X 16 |
| 70 |
250000942 |
Hex Screw M8 X 30 |
| 80 |
234081410 |
Flat Washer 8 mm |
| 90 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 100a3 |
505072690 |
Leg Bushing |
| 100b2 |
505072690 |
Leg Bushing |
| 100c |
293150148 |
Rivet Magna-Grip 6,4 X 50,8 |
| 100d |
293150149 |
Collar Huck Magna-Grip 6.4 |
| 100f |
518332715 |
Bottom Plate |
| 100g |
390909100 |
Avex Rivet |
| 100h |
293450268 |
Insert M5 X 0.8 |
| 100j1 |
605636003 |
Clinch Nut M6 Hexsert |
| 100k |
207662046 |
Hex. Flange Screw M6 X 20 |
| 100m |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 100n |
390909100 |
Avex Rivet |
| 100p |
518332276 |
Oil Plate |
| 100q |
250000767 |
Torx Truss Screw M6 X 12 |
| 110 |
293150267 |
Rivet Ornit 6,5 X 16.5 |
| 115 |
207662046 |
Hex. Flange Screw M6 X 20 |
| 120 |
233261416 |
Elastic Flanged Nut M6 X 1.0 |
| 125 |
293150268 |
Rivet Ornit 6,5 X 18.5 |
| 127 |
293150265 |
Rivet Ornit 6,5 X 12.5 |
| 128 |
293150266 |
Rivet Ornit 6,5 X 14.5 |
| 130 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 140 |
207662046 |
Hex. Flange Screw M6 X 20 |
| 150 |
233261416 |
Elastic Flanged Nut M6 X 1.0 |
| 170 |
293450268 |
Insert M5 X 0.8 |
| 180 |
207661646 |
Hex. Flange Screw M6 X 16 |
| 230 |
207562056 |
Hex. Flange Screw S.Grip M6 X 20 |
| 300b |
512061516 |
Vibration Damper |
| 310 |
250001060 |
Pan Screw HD.Torx M8X30 |
| 350 |
518331740 |
LH Front Chassis Reinforcement |
| 400a |
518334461 |
Chassis Suspension Module |
| 410 |
250001051 |
Hex. Forming Screw HD.FL. M6 X 16 |
| 425 |
207562056 |
Hex. Flange Screw S.Grip M6 X 20 |
| 430 |
233261416 |
Elastic Flanged Nut M6 X 1.0 |
| 435 |
207562056 |
Hex. Flange Screw S.Grip M6 X 20 |
| 440 |
207662046 |
Hex. Flange Screw M6 X 20 |
| 800 |
518331729 |
LH Under Chassis Reinforcement |
| 810 |
518331731 |
RH Under Chassis Reinforcement |
| 815 |
293150271 |
Rivet Ornit 6,5 X 10.5 |
| 820 |
518331733 |
Cross Member Support |
| 830 |
293150267 |
Rivet Ornit 6,5 X 16.5 |
| 900 |
518334729 |
Orange Crush, LH Diagonal Cross Member Ass'y |
| 910 |
518336948 |
Orange Crush, RH Rear Diagonal Cross Member This part replaces 518334735. |
| 920 |
250000887 |
Pan Head Torx Screw M8 X 12 |
| 1100 |
518329370 |
Upper Colomn Support |
| 1120 |
233261416 |
Elastic Flanged Nut M6 X 1.0 |
| 1130 |
207662556 |
Hex. Flange Screw M6 X 25 |
| 1140 |
207662046 |
Hex. Flange Screw M6 X 20 |
| 1150 |
207562054 |
Hex. Flange Screw S.GRIP M6 X 20 |
| 1200 |
518329756 |
Center Colomn Support |
| 1310 |
293150267 |
Rivet Ornit 6,5 X 16.5 |
| 1700 |
518329982 |
Front Protector |
| 1710 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. |
| 1800 |
518329979 |
Rear Protector |
| 1820 |
518333936 |
Central Protective Structure |
| 1830 |
250001131 |
Torx Truss PT K40 x 12 |
| 1840 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. |
| 0114850 |
0114850 |
CLAMP SCREW & STERN BRACKET ASSY., Port (Inc. 11, 12, 22, 23, 24, 25, 26) |
| 0114851 |
0114851 |
CLAMP SCREW & STERN BRACKET ASSY., Stbd. (Inc 13, 22, 23, 24, 25, 26) |
