Home / BRP / STERN DRIVE / 1997 / 7.40 / 744FPLKD 1997 / INTAKE MANIFOLD & FUEL PUMP - 4V MODELS

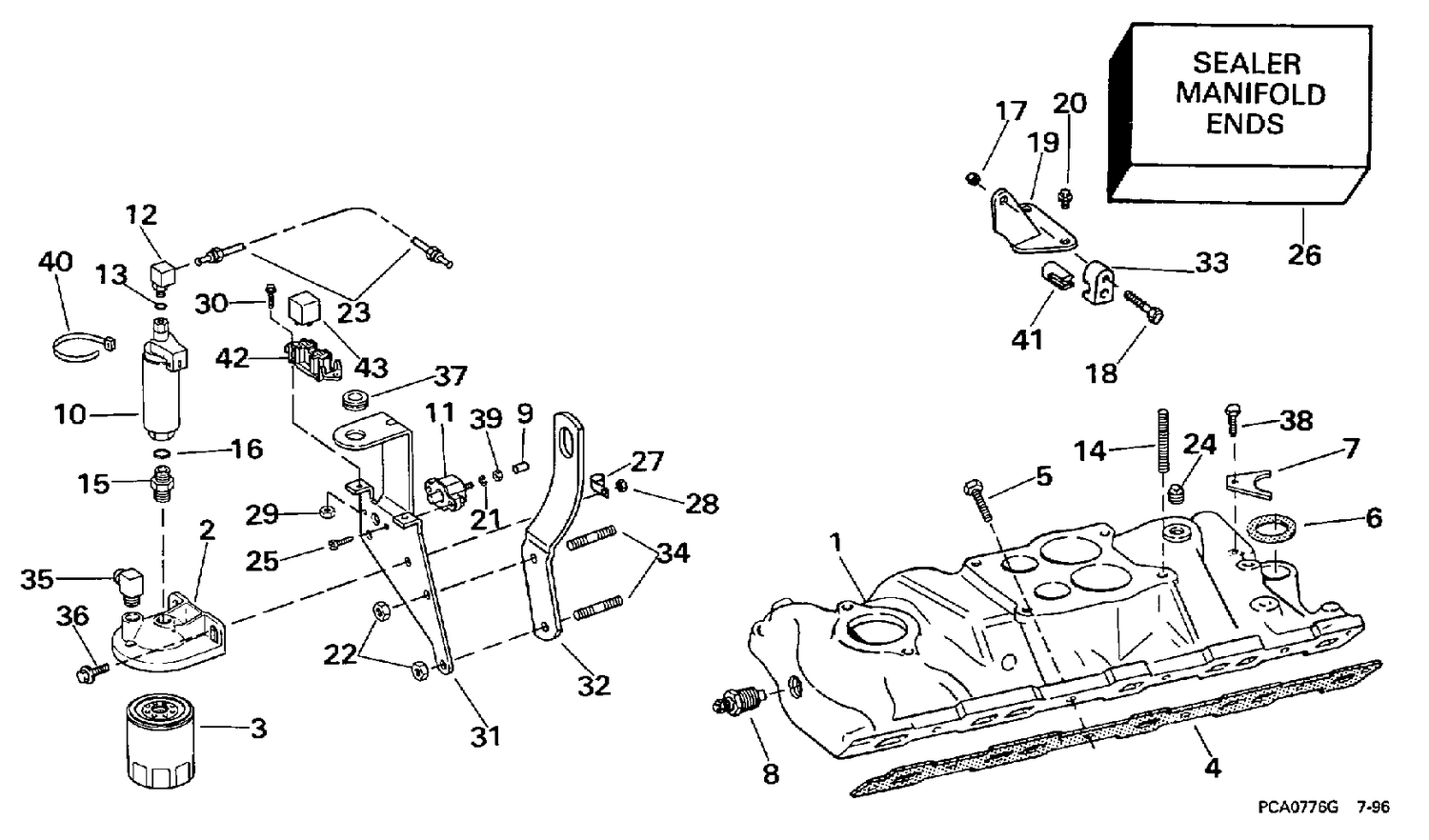

INTAKE MANIFOLD & FUEL PUMP - 4V MODELS

INTAKE MANIFOLD & FUEL PUMP - 4V MODELS

Parts (36)

RefPart NumberDescription
1 3854100 MANIFOLD, Intake
2 5012363 Filter Ay This part replaces 0502906.
3 5012363 Filter Ay This part replaces 0987754.
4 3854096 GASKET SET, Intake manifold
5 3854653 BOLT, Intake manifold, short
5 3855983 BOLT, Intake manifold, long
6 0312780 GASKET, Dist. to manifold This part replaces 3852109.
7 3852108 CLAMP, Distributor
8 3854710 SWITCH, Water temperature
9 3853537 CAP, Breaker assy
10 3857985 FUEL PUMP, Low pressure This part replaces 3854902.
11 3854282 BREAKER, Fuel pump
12 3853494 FITTING
13 3850820 O-RING
14 3853373 STUD, Carb. to adaptor
15 3853493 FITTING, Filter outlet to pump
18 0303459 ECREW,Exhaust cover,1-1/2"long This part replaces 3852048.
19 3850227 BRACKET, Throttle cable
20 0309942 SCREW, Anchor bracket This part replaces 3852086.
22 3853273 LOCKNUT, Coupler
23 3854074 FUEL LINE, Fuel pump to carb.
24 3852666 PLUG, Intake manifold
25 3853620 SCREW, Circuit breaker
26 3853169 SEALER, Manifold ends
27 3853261 CLAMP, Fuel line
28 0314898 L'NUT, Stud, alt frt This part replaces 3852129.
31 3856439 BRACKET, Fuel filter & pump
32 3854377 BRACKET, Cylinder head
33 3850266 ANCHOR BLOCK
34 0312974 STUD, Adapter housing This part replaces 3852117.
35 0174179 ELBOW, Filter inlet
36 3853326 SCREW, Bracket to engine
37 0909988 BUSHING, Tilt & trim cable This part replaces 3852481.
38 3853557 SCREW, Brace to alterntr bracket
40 0320107 ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet This part replaces 3852158.
41 3852019 TRUNNION, S.A.E. Cable
